Pilon fracture, also known as a tibial plafond fracture or distal tibial articular fracture, is a complex orthopedic injury involving the weight-bearing surface of the distal tibia. These fractures are often caused by high-energy axial loading, such as motor vehicle accidents, falls from height, or severe sports and industrial trauma.
Because Pilon fractures frequently involve the ankle joint surface, metaphyseal comminution, and significant soft-tissue injury, their management can be considerably more challenging than that of many other distal tibial fractures.
Modern treatment focuses not only on restoring fracture alignment and the ankle joint surface, but also on protecting the soft tissues and preserving the biological environment required for bone healing. Depending on fracture severity and soft-tissue condition, treatment may include conservative management, temporary external fixation, minimally invasive fixation, or definitive open reduction and internal fixation using distal tibia locking plates.
ATOM provides a range of locking plates, including tibial and fibular locking plate solutions designed for orthopedic trauma fixation.
What Is a Pilon Fracture?

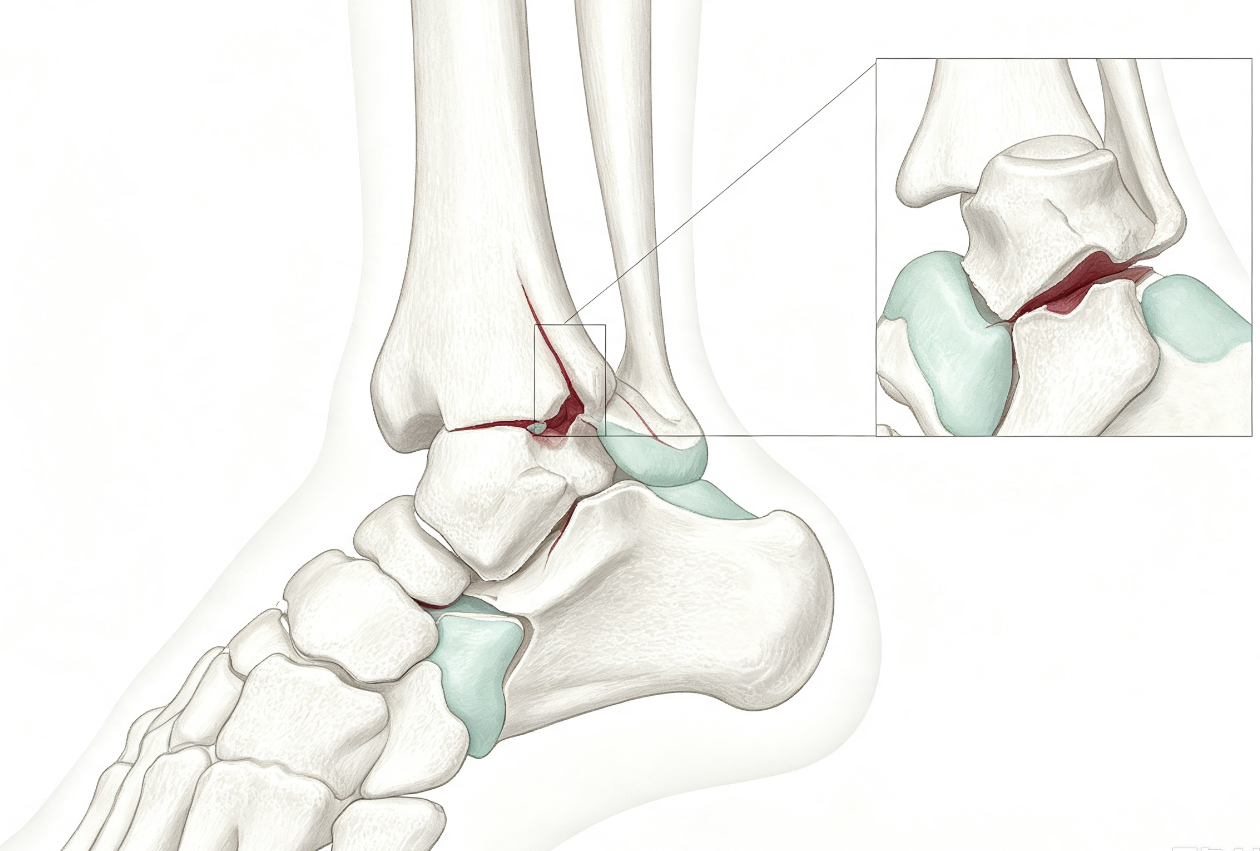

A Pilon fracture is a fracture of the distal tibia that extends into the ankle joint, particularly the tibial plafond, the weight-bearing articular surface that interacts with the talar dome.
The term "Pilon" comes from the French word for pestle and was introduced into orthopedic literature to describe the characteristic impaction of the talus into the distal tibia.
Pilon fractures vary considerably in severity. Some injuries are relatively simple articular fractures with minimal displacement, while others involve extensive comminution, metaphyseal bone loss, articular impaction, and severe soft-tissue damage.
The complexity of the injury means that treatment must be individualized according to:
Fracture morphology
Degree of articular displacement
Metaphyseal comminution
Soft-tissue condition
Open or closed injury
Patient age and bone quality
Associated fibular fracture
General medical condition

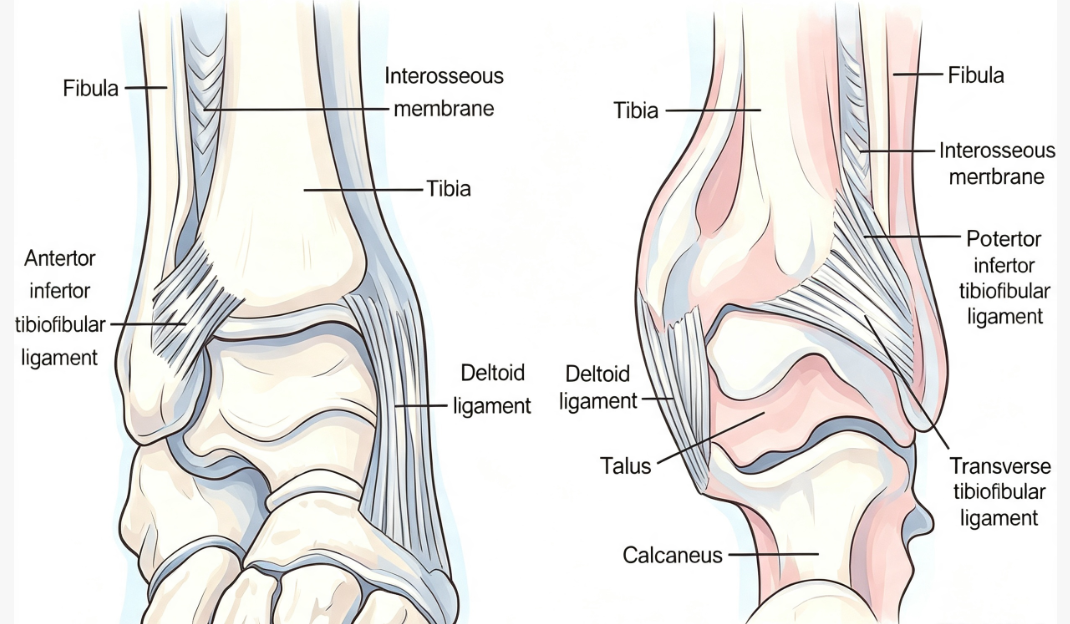

Anatomy of the Distal Tibia and Ankle Joint
The distal tibia forms the superior part of the ankle mortise and carries a substantial proportion of the body's weight during standing and walking.
The tibial plafond articulates with the talus. Because this surface is essential for ankle biomechanics, even relatively small articular incongruities may affect joint loading.
Pilon fractures may involve several characteristic fracture fragments, including anterior, posterior, medial, lateral, and central impaction fragments. CT imaging is particularly valuable for understanding these fracture patterns and planning surgical approaches.
Common Causes of Pilon Fractures
Pilon fractures are commonly associated with axial loading of the ankle.
Typical mechanisms include:
High-Energy Trauma
Lower-Energy Trauma
Pilon fractures can also occur after lower-energy mechanisms, particularly in patients with osteoporosis or compromised bone quality.
During axial loading, the talus is driven upward into the tibial plafond. The resulting force can cause compression and fragmentation of the distal tibial articular surface.
The extent of damage depends on the direction and magnitude of the force as well as the position of the ankle at the time of injury.
Clinical Symptoms of Pilon Fracture
Patients commonly present with:
Severe ankle pain
Significant swelling
Inability to bear weight
Deformity or malalignment
Bruising and soft-tissue injury
Reduced ankle motion
Tenderness around the distal tibia
In high-energy injuries, the soft tissues surrounding the ankle may be severely compromised. Blisters, swelling, open wounds, and compromised skin perfusion may influence the timing and type of surgery.
For this reason, soft-tissue assessment is an essential part of Pilon fracture management.
Diagnosis of Pilon Fractures
X-Ray Examination
Standard ankle radiographs are usually the first imaging examination.
AP, lateral, and mortise views help evaluate:
However, complex Pilon fractures can be difficult to fully understand from plain radiographs alone.
CT Examination
CT is particularly important for complex distal tibial fractures.
Three-dimensional CT reconstruction can help surgeons evaluate:
Articular fracture lines
Central impaction
Metaphyseal comminution
Posterior fragments
Anterolateral fragments
Medial fragments
Bone defects
This information is useful when planning the surgical approach and selecting an appropriate locking plate configuration.
|

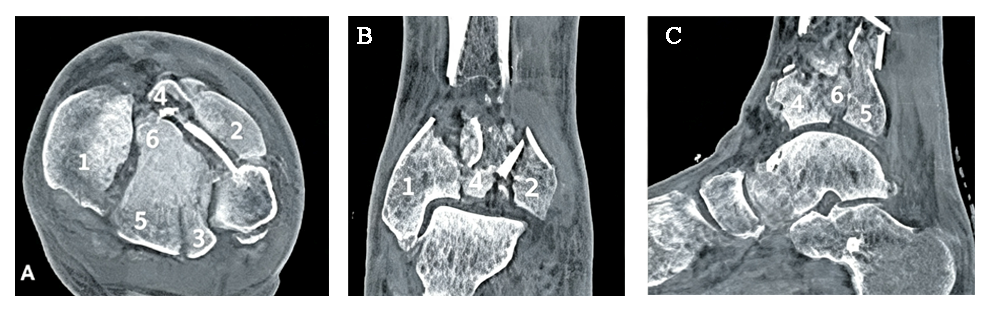

| (A) Axial, (B) Coronal, and (C) sagittal CT scans show the major intra-articular fracture fragments: 1. Medial malleolus; 2. Anterolateral; 3. Posterolateral; 4. Anterior; 5. Posterior; 6. A slightly impacted central fracture fragment. |
Classification of Pilon Fractures
Two commonly referenced classification systems are the Rüedi-Allgöwer classification and the AO/OTA classification.

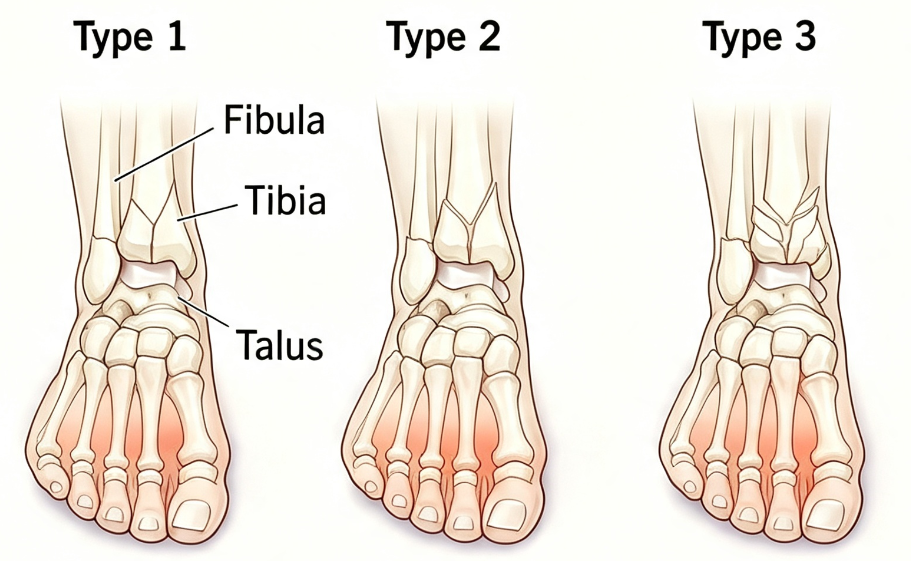

Rüedi-Allgöwer Classification
Type I
An intra-articular fracture with little or no displacement and relatively preserved articular congruity.
Type II
A displaced intra-articular fracture with loss of articular congruity but without severe articular comminution.
Type III
A severely comminuted intra-articular fracture, often associated with impaction of the tibial plafond.
Rüedi-Allgöwer remains useful as a simple descriptive system, but modern surgical planning generally requires more detailed imaging and classification.
AO/OTA Classification of Distal Tibial Fractures
The AO/OTA classification provides a more comprehensive framework for distal tibial fractures.
Broadly, distal tibial fractures are divided into:
43A – Extra-articular fractures
43B – Partial articular fractures
43C – Complete articular fractures
The classification can then be further subdivided according to fracture complexity and comminution.
For true Pilon fractures with complete articular involvement, the 43C category is particularly relevant.
Why Soft-Tissue Management Matters
One of the most important principles in modern Pilon fracture treatment is soft-tissue preservation.
High-energy Pilon fractures can cause extensive swelling and soft-tissue damage. Performing definitive internal fixation before the soft tissues have recovered may increase the risk of wound complications and infection. Therefore, treatment is often performed in stages.
Stage 1: Initial Stabilization
Depending on the injury, initial treatment may include:
Reduction of gross deformity
Temporary external fixation
Wound management
Elevation
Swelling control
Management of open fractures
A spanning external fixator may be used to restore length and alignment while allowing the soft tissues to recover.
Stage 2: Definitive Fixation
Once swelling has sufficiently decreased and the soft tissues are considered suitable, definitive fixation can be performed.
Depending on the fracture pattern, options may include:
Open reduction and internal fixation
Minimally invasive plate osteosynthesis
Locking plate fixation
Selected limited-incision techniques
Other fixation constructs based on fracture morphology
The timing of definitive fixation should therefore be individualized rather than based on a fixed number of postoperative days.
The Role of Locking Plates in Pilon Fracture Fixation
Locking plates have become an important component of modern distal tibia fracture fixation.
Unlike conventional compression plates, locking screws engage with threaded holes in the plate to create an angular-stable construct.
This can be particularly useful in:
A locking plate can provide stable fixation while reducing the need to compress the plate directly against the bone.
However, locking plates are not automatically superior for every Pilon fracture. Successful fixation depends on accurate reduction, appropriate implant selection, screw trajectory, soft-tissue management, and overall surgical strategy.
Surgical Planning for Pilon Fracture Fixation
Before definitive fixation, surgeons typically evaluate:
Fracture morphology
Articular displacement
CT reconstruction
Soft-tissue condition
Fibular fracture
Bone quality
Surgical approach
Plate position
Screw trajectories
The goal is to restore the overall alignment of the distal tibia while reconstructing the articular surface as accurately as possible and minimizing additional soft-tissue damage.
Fibular Fracture and Associated Fixation
A Pilon fracture may be accompanied by a fibular fracture.
The treatment of the fibula depends on the fracture pattern and the overall fixation strategy.
In selected cases, fibular fixation can help restore length and alignment and facilitate reconstruction of the distal tibia.
ATOM also provides a dedicated Fibula Plate range, including distal fibula variable-angle and locking plate designs.
Postoperative Rehabilitation
Postoperative rehabilitation following Pilon fracture fixation should be individualized according to fracture stability, bone healing, soft-tissue condition, and the surgeon's fixation strategy.
Early management may include:
Weight-bearing is generally progressed gradually and depends on radiographic healing and fixation stability.
Because Pilon fractures frequently involve the ankle articular surface, rehabilitation should also focus on restoring:
Ankle range of motion
Muscle strength
Balance
Gait
Functional mobility
Conclusion
Pilon fractures are complex distal tibial injuries that require careful evaluation of both the fracture pattern and the surrounding soft tissues.
Modern management has moved away from a simple "one-stage fixation" concept. Instead, treatment is individualized according to injury severity, soft-tissue condition, articular involvement, and patient factors. High-energy injuries may require staged treatment with temporary external fixation followed by definitive internal fixation once the soft tissues are ready.

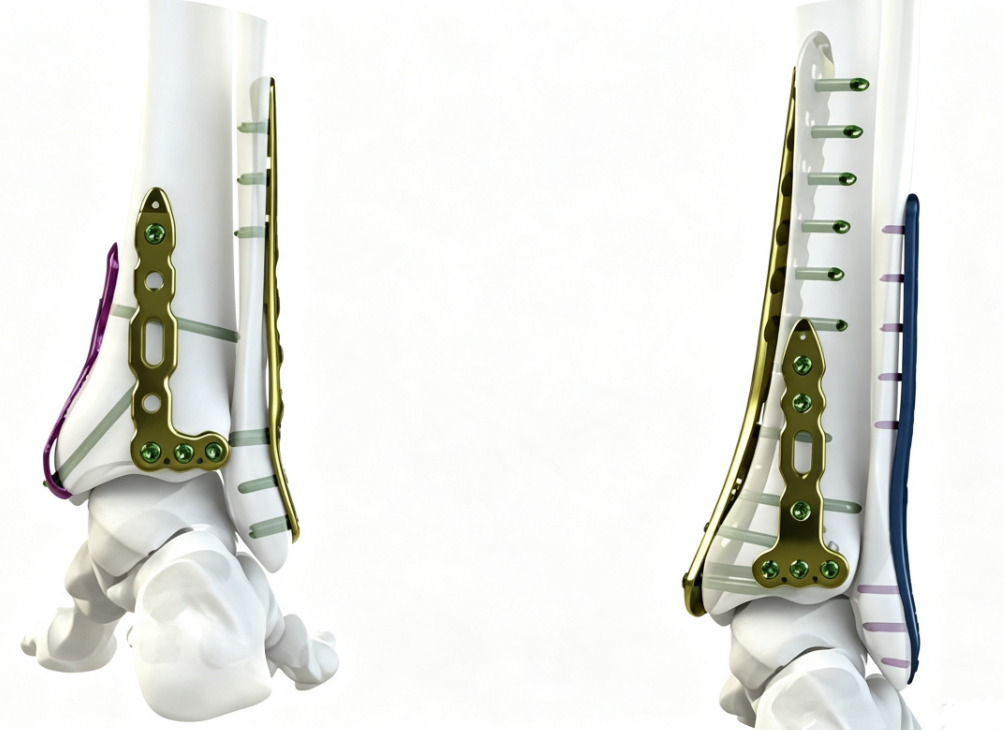

When definitive internal fixation is indicated, locking plates can provide angular stability and reliable fixation for complex distal tibial and periarticular fractures. Variable-angle and anatomically contoured distal tibia locking plates can further assist surgeons in adapting screw trajectories to individual fracture anatomy.
ATOM's orthopedic trauma portfolio includes locking plates, tibia plates, fibula plates, foot and ankle plates, cannulated screws, and metal pins, providing complementary fixation solutions for a wide range of fracture management needs.
