Lumbar spine conditions, including degenerative disc disease, spinal stenosis, and spondylolisthesis, rank among the top global drivers of persistent chronic low back pain. When conservative treatments fail, surgeons often turn to lumbar interbody fusion surgery to stabilize the spine and restore normal alignment.
At the center of this procedure is a key implant: the spinal interbody fusion cage. Over the past few years, progress in additive manufacturing has driven the creation of the 3D printed spinal interbody fusion cage, an innovative, next-generation implant engineered to improve spinal fusion results.
Compared with traditional implants, modern lumbar titanium cages manufactured through 3D printing offer improved bone integration, biomechanical stability, and optimized implant design. These benefits are reshaping spinal reconstruction and establishing titanium cage for lumbar fusion procedures as the leading benchmark and current gold standard in today’s spine surgery.
Understanding Lumbar Interbody Fusion and the Role of Spinal Cages
Lumbar interbody fusion is a surgical technique used to permanently join two or more vertebrae in the lumbar spine. The procedure involves removing the injured intervertebral disc and replacing it with an implant called a lumbar interbody fusion cage.
The primary functions of a titanium cage for lumbar fusion include:
Restoring intervertebral disc height
Stabilizing the spinal segment
Maintaining spinal alignment
Creating a space for bone graft material to promote fusion
The cage acts as a structural spacer between vertebrae while the bone graft inside the implant gradually fuses the two bones together. Over time, the fused vertebrae form a single solid bone structure that stabilizes the spine.
In modern spinal procedures, spine implants lumbar titanium cage systems are widely used in surgical approaches such as:
OLIF – Oblique Lateral Interbody Fusion Cage
ALIF – Anterior Lumbar Interbody Fusion
TLIF – Transforaminal Lumbar Interbody Fusion
PLIF – Posterior Lumbar Interbody Fusion
Each technique requires implants capable of providing immediate mechanical stability and long-term biological integration.
Evolution of Spinal Fusion Implants
Traditional spinal fusion cages were commonly manufactured using PEEK (polyetheretherketone) or solid titanium. While these materials provided structural support, they had certain limitations.
PEEK implants, for example, have relatively smooth surfaces that may limit bone integration. Solid titanium implants, while strong, can sometimes be stiffer than natural bone, potentially increasing stress at the bone-implant interface.
The introduction of 3D printed spinal interbody fusion cage technology has addressed many of these challenges.
Additive manufacturing allows engineers to design porous titanium structures that mimic the microarchitecture of cancellous bone. These structures promote bone ingrowth and improve mechanical compatibility with surrounding vertebrae.
Advantages of 3D Printed Spinal Interbody Fusion Cage Technology

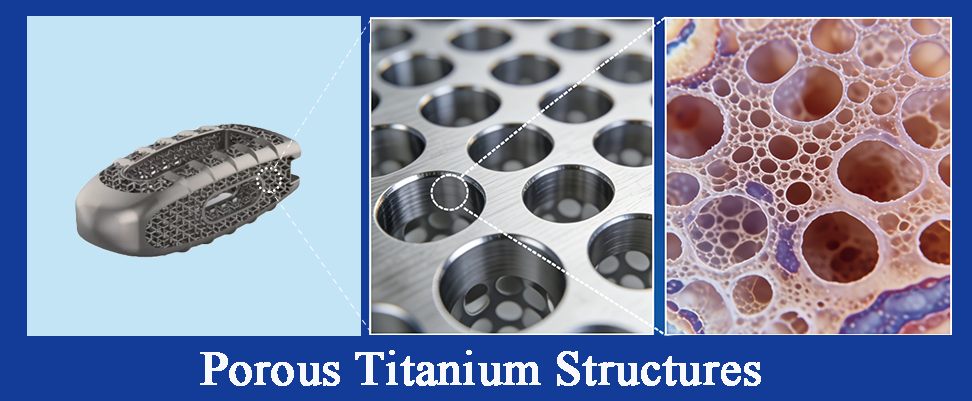

1. Porous Titanium Structure for Enhanced Bone IngrowthOne of the most important advantages of a 3D printed spinal interbody fusion cage is its porous architecture.
The integrated lattice-like framework lets bone cells grow right into the implant’s surface, encouraging biological fixation and enhancing long-term fusion stability.
This porous design creates an environment that supports:
Faster osseointegration
Osteoblast attachment
Bone tissue infiltration
As a result, porous titanium lumbar cages may achieve more reliable fusion compared to conventional implants.
2. Reduced Risk of Cage Subsidence
Subsidence happens when an implant settles into the vertebral endplates, which may reduce disc height and contribute to surgical failure.
3D printed titanium implants can reduce this risk because their elastic modulus more closely matches natural bone. This helps distribute loads more evenly across the vertebral endplates and reduces stress concentrations.
Additionally, many lumbar titanium cage designs feature:
These characteristics enhance implant stability during the early postoperative period.
3. Improved Mechanical Stability
The surface texture and porous lattice of 3D printed spinal cages increase friction between the implant and vertebral bone.
This improves initial fixation and helps prevent implant migration after surgery. Some cage designs also include serrated surfaces or teeth to maximize contact with the vertebral endplates and improve stability.
These features make titanium cage for lumbar fusion procedures more predictable and reliable.
4. Optimized Design Flexibility
One of the greatest advantages of additive manufacturing is design freedom. 3D printing allows engineers to create complex implant geometries that are difficult or impossible to manufacture using traditional machining.

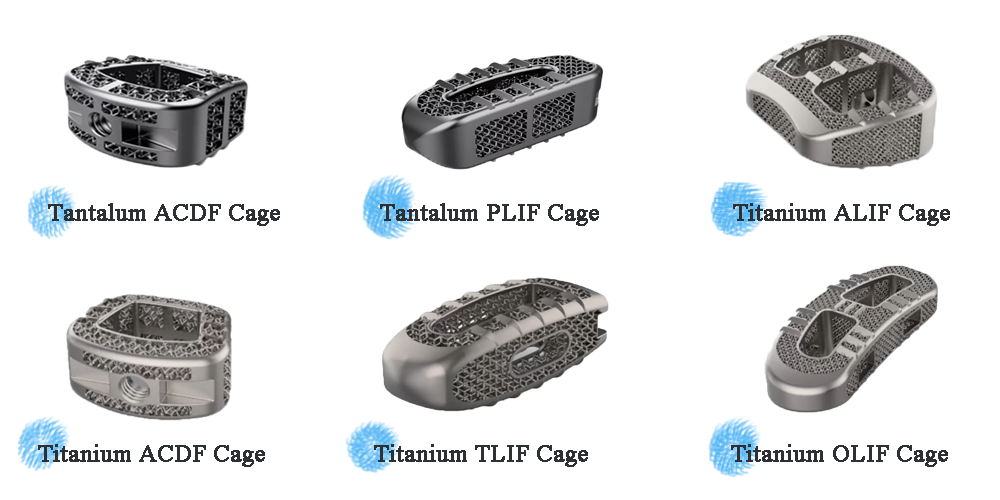

For example, a 3D-printed Tritanium cage may incorporate:
These features allow surgeons to select implants that match patient anatomy and surgical approach.
Additive manufacturing also enables the production of implants with interconnected pores that extend throughout the cage, enhancing biological fixation and bone growth.
Clinical Applications of Lumbar Titanium Cage Implants
The spine implants lumbar titanium cage system is widely used to treat various spinal conditions.
Degenerative Disc Disease
Degenerative disc disease is a common condition where spinal discs lose hydration and structural integrity over time. This can lead to instability, chronic back pain, and nerve compression.
A lumbar titanium cage restores disc height and stabilizes the affected segment.
Spondylolisthesis
Spondylolisthesis occurs when one vertebra slips forward relative to another. Lumbar fusion surgery using a titanium cage for lumbar fusion helps restore alignment and prevent further slippage.
Spinal Stenosis
In spinal stenosis, the spinal canal narrows and compresses neural structures. After decompression surgery, a 3D printed spinal interbody fusion cage maintains the intervertebral space and stabilizes the spine.
Lumbar Spine Trauma
Severe trauma such as fractures may compromise spinal stability. A lumbar interbody fusion cage combined with pedicle screw fixation can restore structural integrity and protect neural tissues.
Clinical Evidence Supporting 3D Printed Lumbar Fusion Cages
Recent clinical studies have demonstrated excellent outcomes using 3D printed titanium cages in lumbar fusion procedures.
A study assessing anterior and lateral lumbar interbody fusion with 3D-printed cages reported a 97.1% fusion rate one year after surgery, with no observed cases of implant subsidence.
These findings highlight the potential of advanced spinal fusion implants to improve patient outcomes and reduce complications.
The Future of Spine Implants: Advanced Titanium Cage Systems
As spinal surgery continues to evolve, implant technology is becoming increasingly sophisticated.

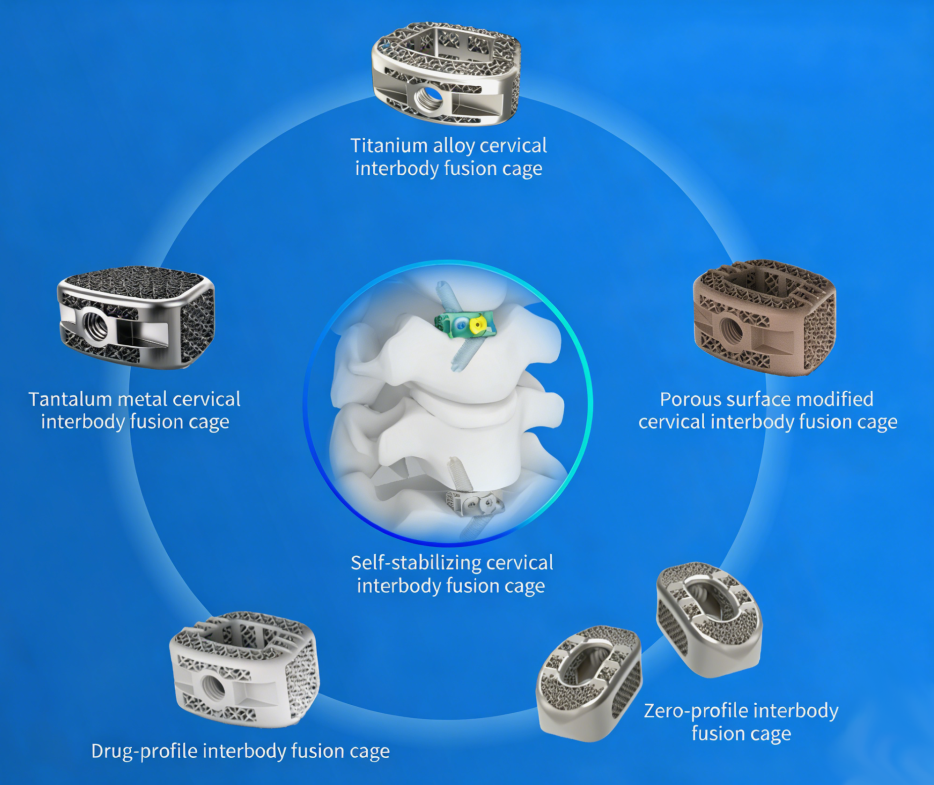

Next-generation 3D printed spinal interbody fusion cage systems are designed to combine:
Advanced biomaterials
Optimized biomechanical properties
Improved surgical ergonomics
Enhanced biological integration
Today, these implants are viewed as an essential part of modern lumbar fusion surgery, enabling surgeons to deliver dependable fusion while reducing complications.
Conclusion
The development of the 3D printed spinal interbody fusion cage represents a major advancement in spinal implant technology. By combining additive manufacturing with porous titanium biomaterials, these implants provide improved bone integration, enhanced mechanical stability, and optimized anatomical design.
Today's lumbar titanium cage systems are broadly adopted in ALIF, TLIF, PLIF, and OLIF procedures to manage degenerative spine disorders, trauma-related injuries, and deformities.
As additive manufacturing continues to advance, innovative spine implants lumbar titanium cage solutions will play an increasingly important role in improving the outcomes of titanium cage for lumbar fusion procedures and shaping the future of spinal surgery.
