Expandable spinal fusion implants can benefit selected high-risk patients by allowing an interbody cage to be inserted in a compact configuration and expanded inside the disc space. For patients with osteoporosis, complex spinal deformity, or previous fusion surgery, expandable lumbar interbody cages may help restore disc height, improve spinal alignment, and reduce the need for forceful cage insertion through a limited surgical corridor. However, the benefits depend on bone quality, implant design, surgical technique, and the patient's overall health. Understanding cage subsidence, endplate preservation, and segmental lordosis helps patients and surgeons evaluate whether an expandable implant is appropriate.
Why High-Risk Patients May Need Specialized Spinal Fusion Implants
Spinal fusion surgery aims to stabilize painful or unstable spinal segments while allowing bone to grow between adjacent vertebrae. Conventional spinal fusion implants, including interbody cages, pedicle screws, and rods, provide structural support during this process.
High-risk patients may face additional challenges that make implant selection more demanding. These challenges do not automatically make expandable implants the best option, but they highlight where controlled expansion and appropriate cage geometry may be useful.
Expandable Spinal Fusion Implants for Patients With Osteoporosis
Osteoporosis reduces bone mineral density and can weaken the vertebral endplates that support an interbody cage. If the cage concentrates excessive force on weakened bone, it may sink into the adjacent vertebral body, a complication known as cage subsidence.
An expandable cage can be inserted at a smaller height and expanded gradually to restore the required disc space. Depending on its design and footprint, this approach may reduce insertion-related trauma and improve contact with the supporting endplates.
Nevertheless, expansion does not eliminate the mechanical risks associated with osteoporosis. Surgeons must assess bone quality, select an appropriate implant footprint, avoid excessive expansion, and consider additional fixation or bone-health treatment when indicated.
Expandable Spinal Fusion Implants for Revision Surgery
Revision surgery can be more complicated because previous operations may have changed the anatomy, removed bone, or created scar tissue. In some minimally invasive procedures, the available working corridor is also restricted.
An expandable interbody cage may be advantageous when a low-profile implant is easier to introduce than a cage with its full final dimensions. Once positioned, the cage can be expanded to restore disc height and provide anterior column support.
However, revision surgery also requires careful assessment of the existing implants, fusion status, remaining bone, and possible causes of the previous failure. An expandable cage cannot independently correct every problem associated with a failed fusion.
Expandable Spinal Fusion Implants for Spinal Deformity
Patients with degenerative scoliosis, abnormal segmental alignment, or loss of lumbar lordosis may need more than basic stabilization. Their surgical plan may also require correction of the spine's geometry.
Some expandable cage designs allow surgeons to adjust implant height and, in certain systems, lordotic angle. These features may help restore disc height, increase foraminal height, and improve segmental alignment when used with an appropriate surgical approach and fixation strategy.
For patients undergoing multilevel fusion, the surgeon must also consider how correction at one level affects the overall spinal alignment. Excessive correction at an individual level can create new mechanical problems rather than improve the final result.

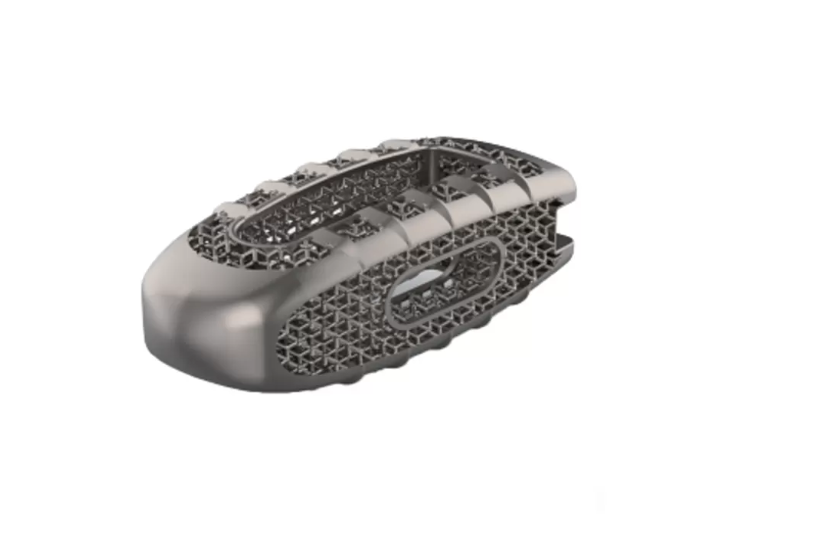

An expandable interbody cage is a structural implant placed between two vertebral bodies after the affected disc has been removed. It provides support while bone graft material facilitates the development of a solid fusion.
Unlike a static cage, which maintains a predetermined geometry, an expandable cage is inserted in a compact configuration and enlarged in situ using its designated insertion and expansion instruments.
Expandable Interbody Cages and Controlled Disc Height Restoration
The expansion mechanism allows the surgeon to adjust the implant's dimensions after positioning. Depending on the device, expansion may occur vertically, laterally, or in multiple directions.
The intended benefits include:
Lower-profile insertion: A compact insertion configuration may facilitate placement through a restricted surgical corridor.
Disc height restoration: Controlled expansion can help re-establish the space between adjacent vertebrae.
Foraminal height improvement: Restoring disc height may increase the space available for exiting nerve roots in appropriately selected patients.
Spinal alignment adjustment: Certain designs allow changes in segmental lordosis to support the planned correction.
Endplate protection: A suitable insertion profile and controlled expansion may reduce some insertion-related stresses, although endplate injury remains possible.
These benefits depend on the specific device. An expandable cage with vertical expansion alone does not necessarily provide the same correction options as a system that also offers lateral expansion or adjustable lordosis.
Expandable Versus Static Spinal Fusion Implants: What Does the Evidence Show?
Published research suggests that expandable cages may offer radiographic advantages in selected procedures, but the findings are not uniform.
A 2026 systematic review and meta-analysis published in Global Spine Journal included 23 studies involving 1,838 patients and 2,074 fused levels undergoing minimally invasive transforaminal lumbar interbody fusion (MIS-TLIF). The pooled cage subsidence rate was 12.8% for expandable cages, compared with 25.7% for static cages. This represents an approximately 50% relative difference between the pooled rates.
However, only three studies directly compared the two cage types. The analysis relied substantially on indirect comparisons, and the authors cautioned that confounding factors prevent the results from proving that cage design alone caused the difference. Improvements in pain and disability scores were broadly comparable between groups.
Earlier research also illustrates the uncertainty. A 2023 meta-analysis of 13 studies involving 1,700 patients found that expandable cages improved anterior disc height and segmental lordosis compared with static cages, but did not establish significant differences in cage subsidence, back pain, leg pain, or Oswestry Disability Index scores.
These findings support a practical conclusion: expandable spinal fusion implants can offer useful design advantages, but their clinical value depends on patient selection, surgical approach, implant geometry, and the quality of the supporting bone.
A Real Clinical Example: Expandable Spinal Fusion Implants in a Complex Case
Research findings become more meaningful when considered alongside actual clinical cases. A published 2022 case series examined three patients with kyphotic spinal deformity caused by osteoporotic vertebral fractures. The patients had a mean age of 75.1 years and underwent a complex procedure involving posterior vertebral column resection and insertion of a lateral lumbar interbody fusion cage.
In the series, the mean local kyphotic angle decreased from 46.3 degrees before surgery to 16.3 degrees two weeks after surgery. The patients' preoperative lower back pain was reported to have disappeared. However, two patients developed postoperative neurological complications, although these complications did not prevent walking rehabilitation.
This case series demonstrates that an interbody cage can contribute to substantial deformity correction in carefully selected, complex cases. It also illustrates why surgical outcomes cannot be judged by alignment measurements or pain relief alone.
The study involved only three patients and a highly specialized surgical procedure. Its results should not be interpreted as evidence that expandable cages will produce the same outcome in routine spinal fusion surgery or that they are inherently safer for all patients with osteoporosis.
How to Evaluate Expandable Spinal Fusion Implants for High-Risk Patients
Selecting an implant requires more than comparing its expansion range or material. Patients and surgical teams need to establish the treatment objectives, identify the factors that increase complication risk, and determine whether the device suits the planned procedure.
Step 1: Assess Bone Quality Before Choosing Spinal Fusion Implants
Bone quality is particularly important for older adults, patients with osteoporosis, and individuals with a history of vertebral fractures.
The preoperative assessment may include:
Bone mineral density testing, such as dual-energy X-ray absorptiometry (DEXA), when indicated.
CT imaging to evaluate vertebral anatomy and, where appropriate, assess bone quality.
MRI to examine neural compression, disc degeneration, and surrounding soft tissues.
A review of previous fractures, osteoporosis treatment, medication use, and other factors affecting bone health.
The results help the surgeon assess the risk of cage subsidence, screw loosening, and delayed or failed fusion. No single imaging result should determine implant selection without considering the full clinical picture.
Step 2: Define the Surgical Objective for Expandable Interbody Cages
The surgeon should identify the principal problem being treated. Possible objectives include stabilizing an unstable segment, restoring disc height, relieving nerve compression indirectly, correcting segmental alignment, or reconstructing the anterior spinal column.
The intended objective affects the required cage footprint, height, expansion direction, and lordotic angle. It also determines whether an expandable cage should be combined with posterior pedicle screw-and-rod fixation or another stabilization strategy.
For example, a patient with foraminal narrowing caused by disc height loss may have different implant requirements from a patient with substantial kyphotic deformity or a failed previous fusion.
Step 3: Compare Spinal Fusion Implant Designs and Surgical Approaches
Expandable cages are used with different interbody fusion approaches, including TLIF, PLIF, LLIF, OLIF, and ALIF. Each approach has distinct anatomical requirements, access considerations, and potential complications.
When comparing devices, the surgical team should review:
Collapsed insertion dimensions and final expanded dimensions.
Available footprint sizes and height ranges.
Expansion direction and mechanism.
Available lordotic angles and the extent of adjustability.
Implant material, imaging characteristics, and bone-graft capacity.
Compatibility with the intended fixation system and surgical instruments.
Device-specific indications, contraindications, and instructions for use.
Step 4: Plan Endplate Preservation and Controlled Expansion
Endplate integrity is central to long-term cage stability. Damage to the endplate can reduce the strength of the supporting bone and increase the risk of subsidence.
The surgical plan should therefore account for the size and condition of the endplates, the cage's contact area, the intended final height, and the device's expansion mechanism.
Expansion should follow the manufacturer's instructions and the surgeon's assessment of resistance and anatomical fit. Increasing cage height beyond what the anatomy safely accommodates can cause endplate fracture, even when the implant is designed for controlled expansion.
Step 5: Prepare the Patient and Supporting Spinal Fusion System
Expandable cages do not replace the biological and mechanical requirements of spinal fusion. Successful treatment may depend on several coordinated elements.
Depending on the procedure, the surgical team may prepare:
The selected interbody cage and its compatible insertion and expansion instruments.
Trial implants for assessing the appropriate dimensions and fit.
Bone graft material selected according to the treatment plan.
Pedicle screws, rods, or other fixation components when indicated.
Imaging equipment and instruments required for the planned surgical approach.
A postoperative monitoring and rehabilitation plan.
Patients should also discuss smoking cessation, diabetes management, nutrition, osteoporosis treatment, and medication adjustments with their healthcare team. These factors can influence bone healing and complication risk regardless of the cage design.
Implant placement and expansion are surgical procedures that must be performed by appropriately trained professionals using the specific device's instructions for use. The steps above describe evaluation and preparation, not instructions for performing surgery.
Step 6: Monitor Recovery and Confirm Spinal Fusion
Early pain relief does not necessarily mean that solid bone fusion has occurred. The surgeon should assess recovery using clinical examinations, the patient's reported symptoms, and follow-up imaging when indicated.
Monitoring may evaluate:
Changes in back pain, leg pain, mobility, and daily function.
Maintenance of disc height and spinal alignment.
Evidence of cage subsidence, migration, or implant loosening.
Progress toward solid bone fusion.
New neurological symptoms or other postoperative complications.
Patients should follow the prescribed activity restrictions and rehabilitation plan. New or worsening weakness, loss of bladder or bowel control, or other concerning neurological symptoms require urgent medical assessment.
Common Mistakes When Selecting Expandable Spinal Fusion Implants
Mistake 1: Assuming Expandable Spinal Fusion Implants Are Always Safer
An expandable cage may reduce the need for forceful insertion, but it can still cause endplate damage, subsidence, or other complications. The solution is to compare device-specific evidence and evaluate the patient's anatomy and bone quality rather than assuming that one design is universally superior.
Mistake 2: Ignoring Bone Quality When Choosing Expandable Cages
A cage cannot compensate fully for severely weakened vertebral bone. Patients with osteoporosis may require a broader treatment strategy that includes bone-health optimization and an appropriate fixation plan.
Mistake 3: Focusing Only on Expansion Height and Spinal Alignment
Restoring disc height or improving segmental lordosis does not automatically establish a successful fusion. Implant stability, endplate integrity, bone-graft incorporation, symptoms, and long-term imaging findings also matter.
Mistake 4: Overlooking the Complete Spinal Fusion Implant System
A cage must work with the intended surgical approach, insertion instruments, graft material, and any required fixation components. Evaluating the cage in isolation may overlook compatibility or workflow issues that affect the procedure.
Mistake 5: Assuming an Expandable Cage Can Prevent Revision Surgery
Expandable cage technology may address specific mechanical challenges, but revision risk also depends on infection, nonunion, bone quality, surgical technique, patient health, and the original condition being treated. No implant design can guarantee that further surgery will not be necessary.
Frequently Asked Questions About Expandable Spinal Fusion Implants
Are Expandable Spinal Fusion Implants Better for Patients With Osteoporosis?
They may be appropriate for selected patients because their compact insertion profile and controlled expansion can offer technical advantages. However, osteoporosis increases the risk of subsidence and fixation failure. Bone quality, endplate integrity, cage footprint, and the overall fixation strategy must be assessed before choosing an implant.
Do Expandable Interbody Cages Reduce Cage Subsidence?
Some studies report lower pooled subsidence rates with expandable cages, while other meta-analyses have not found a statistically significant difference. A 2026 review reported pooled rates of 12.8% for expandable cages and 25.7% for static cages in MIS-TLIF, but only three included studies directly compared the two designs. The evidence is promising but does not establish that expandable cages always reduce subsidence.
Can Expandable Spinal Fusion Implants Improve Spinal Alignment?
Some expandable designs allow controlled restoration of disc height and adjustment of segmental lordosis. These features can support spinal alignment correction when the implant is appropriate for the anatomy and surgical objective. The final result also depends on the surgical approach, fixation, and the alignment of the spine as a whole.
Are Expandable Spinal Fusion Implants Suitable for Revision Surgery?
They may be useful when a compact insertion profile is advantageous or when additional disc height restoration is required. However, revision surgery requires an individualized assessment of existing hardware, previous fusion status, remaining bone, scar tissue, and the cause of the original failure.
How Long Does Recovery Take After Surgery With Expandable Spinal Fusion Implants?
Recovery varies with the surgical approach, number of levels fused, underlying diagnosis, bone quality, and general health. Early postoperative improvement and complete biological fusion are different milestones. The treating surgeon should provide an individualized recovery and follow-up schedule rather than relying on a single standard timeline.
What Materials Are Used in Expandable Spinal Fusion Implants?
Depending on the device, interbody cages may use titanium alloys, porous titanium structures, or polyetheretherketone (PEEK). Material selection affects imaging characteristics, mechanical behavior, and the implant's interface with bone. Patients and procurement teams should confirm the exact material and design specifications in the relevant product documentation.
Conclusion: Choosing Expandable Spinal Fusion Implants Based on Clinical Needs
Expandable spinal fusion implants offer practical advantages for selected high-risk patients, particularly when surgeons need a compact insertion profile, controlled disc height restoration, or correction of segmental alignment. Clinical evidence suggests that some designs may reduce cage subsidence in minimally invasive lumbar fusion, but the available research does not establish universal superiority over static cages.
The most important considerations are bone quality, endplate preservation, cage geometry, fixation stability, and the patient's capacity for bone healing. For patients with osteoporosis, complex deformity, or revision surgery, these factors should be evaluated together rather than relying on expansion capability alone.
