Fracture fixation is not simply a matter of choosing the strongest implant. The fixation method must provide sufficient stability, protect the biology around the fracture, maintain alignment, and support the patient’s rehabilitation plan.
Intramedullary nails and bone plates are two of the most widely used internal fixation options for long-bone fractures. Both can produce reliable outcomes, but they work differently and are suited to different fracture patterns.
Intramedullary nails are positioned inside the medullary canal and are commonly used for diaphyseal fractures of long bones. Plates are applied along the bone surface and can provide direct control of fracture fragments, making them particularly useful for complex metaphyseal, periarticular, and articular fractures. Intramedullary nailing is widely regarded as a standard treatment for many long-bone shaft fractures, but plating remains important when a nail cannot adequately control the fracture or when the fracture extends into a joint.
The correct choice depends on fracture anatomy, soft-tissue condition, bone quality, implant availability, surgical approach, and the surgeon’s ability to obtain and maintain an acceptable reduction.
What Is an Intramedullary Nail?

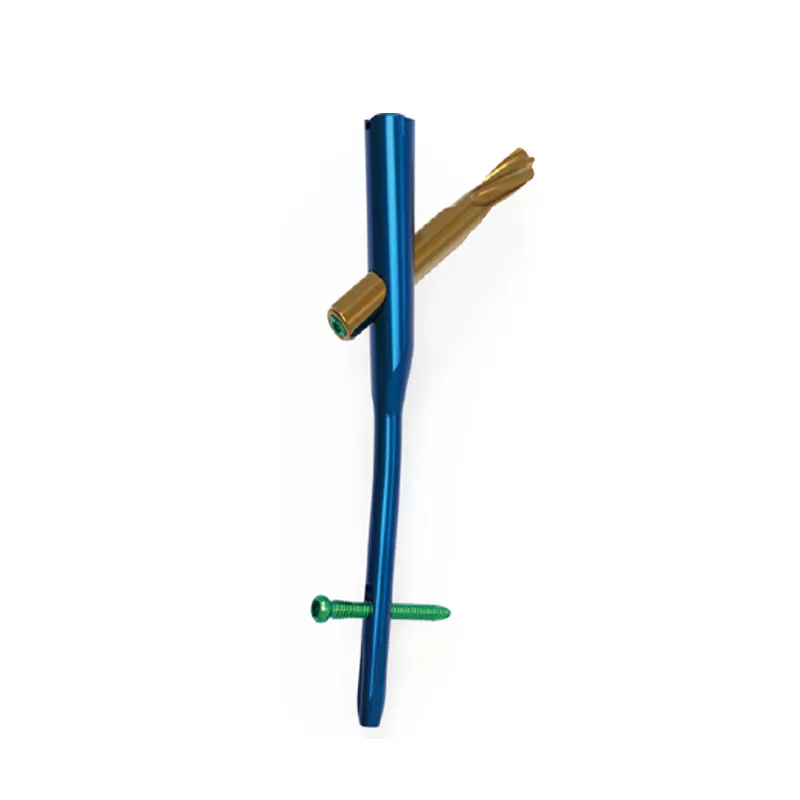

An intramedullary nail is a metal implant inserted into the medullary canal of a long bone. It passes across the fracture and is usually secured with proximal and distal locking screws.
Because the implant is located near the mechanical axis of the bone, an intramedullary nail can provide strong resistance to bending forces without requiring a large implant on the outer surface of the bone. Interlocking screws help control rotation, shortening, and axial displacement.
Intramedullary nails are commonly used for fractures involving the:
Nails may be inserted through an antegrade or retrograde approach, depending on the bone, fracture location, implant design, and surgical plan. AO Surgery Reference identifies intramedullary nailing as a mechanically strong fixation option for many diaphyseal and metaphyseal fractures while also noting that anatomical, biological, and practical factors may require another method.
What Is Plate Fixation?
Plate fixation uses a metal plate positioned on the surface of the bone and secured with screws. The surgeon may expose the fracture directly or insert the plate through a minimally invasive approach.
Plates are available in different designs, including:
Compression plates
Locking compression plates
Reconstruction plates
Buttress plates
Neutralization plates
Bridge plates
Anatomically contoured plates
Periarticular locking plates
A plate can be used to compress a simple fracture, bridge a comminuted zone, support an articular fragment, or maintain a carefully reconstructed joint surface.
Locking plates may be especially useful when screw purchase is limited by poor bone quality or when the implant must function as a fixed-angle construct. However, the success of plate fixation still depends on correct plate position, screw distribution, construct stiffness, and protection of the surrounding blood supply.
The Fundamental Difference Between Nails and Plates
The most important difference is the position of the implant relative to the bone.
An intramedullary nail is placed inside the bone, close to its central mechanical axis. A plate is attached to the outer surface of the bone.
This difference affects surgical access, mechanical behavior, fracture reduction, and soft-tissue handling.
| Comparison Point | Intramedullary Nail | Plate Fixation |
|---|
| Implant position | Inside the medullary canal | On the bone surface |
| Common application | Long-bone shaft fractures | Metaphyseal, periarticular and articular fractures |
| Reduction method | Frequently indirect or closed | Direct or indirect |
| Soft-tissue exposure | Often smaller around the fracture | May require wider exposure, depending on technique |
| Control of articular fragments | Limited | Usually better |
| Resistance to bending | Strong due to central position | Depends on plate design and working length |
| Alignment control | Can be difficult in short or wide segments | Precise fragment control is often possible |
| Implant prominence | Generally low at the fracture site | May cause local prominence or irritation |
| Main technical concerns | Entry point, rotation and alignment | Plate position, screw placement and soft-tissue protection |
These are general characteristics rather than absolute rules. Modern minimally invasive plating can preserve fracture biology, while some intramedullary nailing procedures may still require open reduction.
When Is an Intramedullary Nail Usually Preferred?
Long-Bone Shaft Fractures
Intramedullary nails are frequently considered for fractures through the central shaft of the femur and tibia. The medullary canal provides a natural path for the implant, and proximal and distal locking screws can maintain length and rotation.
For femoral shaft fractures, intramedullary nailing is commonly used as the primary surgical fixation method. Plates may be selected when nailing is not feasible, including certain fractures that extend toward the hip or knee joint.
For tibial shaft fractures, the AAOS describes intramedullary nailing as the method currently used by many surgeons. The nail crosses the fracture internally, while locking screws maintain bone and implant position during healing.
When Minimizing Fracture-Site Exposure Is Important
A nail can often be inserted without fully exposing the fracture. Indirect reduction may preserve the fracture hematoma and reduce disruption to periosteal blood supply.
This can be valuable in fractures where extensive surgical exposure could further compromise already injured soft tissue. However, the entry site, locking-screw incisions, reduction maneuvers, and reaming process still need careful planning.
When a Central Load-Sharing Construct Is Desired
The central position of the nail allows the implant and bone to share mechanical loading. This can be useful for long-bone fractures exposed to substantial bending forces.
The ability to begin weight bearing depends on the fracture pattern, reduction quality, implant dimensions, locking configuration, bone quality, and the surgeon’s postoperative protocol. The presence of a nail does not automatically mean unrestricted immediate weight bearing is appropriate.
Segmental or Comminuted Shaft Fractures
Intramedullary nails can bridge a comminuted fracture zone without requiring every small fragment to be reconstructed. The surgeon can restore overall length, alignment, and rotation while leaving intermediate fragments relatively undisturbed.
This biological approach may be beneficial when direct fragment manipulation would damage soft-tissue attachments.
When Is a Plate Usually Preferred?
Fractures Extending Into a Joint
When a fracture involves an articular surface, the joint often requires accurate anatomical reconstruction. Plates and screws allow the surgeon to visualize, reduce, and stabilize individual joint fragments.
A nail may stabilize the main bone segment but may not provide sufficient control over a displaced articular fragment. In such cases, a plate—or a combination of screws and a plate—may be more appropriate.
Metaphyseal and Periarticular Fractures
The medullary canal becomes wider near many joints. This can reduce the nail’s ability to control short proximal or distal fragments.
A contoured periarticular plate can provide multiple screw trajectories into a short fragment. Fixed-angle locking screws may help support the reconstructed metaphysis and joint surface.
Examples include selected fractures of the:
Distal femur
Proximal tibia
Distal tibia
Proximal humerus
Distal humerus
Distal radius
When Precise Alignment Is Difficult With a Nail
Intramedullary nailing can be technically demanding in very proximal or distal fractures. The wider canal and unbalanced muscular forces can contribute to angular deformity or translation if reduction is not properly controlled.
Plating may provide more direct control over alignment. For extra-articular distal tibial fractures, systematic reviews have found that both methods can be effective. Some evidence associates nailing with fewer wound complications, while minimally invasive plating may offer better control of malalignment.
When the Medullary Canal Cannot Be Used
Nailing may be unsuitable when the medullary canal is:
Too narrow for the required implant
Blocked by existing hardware
Deformed by a previous injury
Occupied by another implant
Affected by certain pathological conditions
Incompatible with the required entry point
Plating can bypass some of these limitations because it does not depend on access through the entire medullary canal.
When Direct Compression Is Required
Simple transverse or short oblique fractures may benefit from interfragmentary compression. A compression plate can bring the fracture surfaces together and provide high absolute stability when anatomically appropriate.
Lag screws may also be used through or outside the plate to compress suitable fracture planes.
Factor 1: Fracture Location
Location is often the first decision point.
Diaphyseal Fractures
For many femoral and tibial shaft fractures, intramedullary nails are commonly favored because the implant can span the length of the bone from within the canal.
For humeral shaft fractures, the choice is less straightforward. Both plates and nails can achieve union, but the surgical approach and complication profile differ. Some meta-analyses have associated antegrade humeral nailing with shoulder-related problems, while plate fixation may require greater exposure and introduces concern about the radial nerve. Evidence does not establish one method as universally superior for every humeral shaft fracture.
Metaphyseal Fractures
Both nails and plates may be possible. The decision depends on fragment length, canal shape, fracture line, nearby joint involvement, and whether locking screws can obtain adequate fixation.
Articular Fractures
Plates are commonly favored because they allow direct reconstruction and support of the joint surface. A nail may still be used in selected fractures when the articular component has first been stabilized with separate screws.
Factor 2: Fracture Pattern
A simple fracture and a highly comminuted fracture do not require the same mechanical strategy.
For a simple fracture, the goal may be anatomical reduction and compression. A plate can be useful when the fracture geometry permits interfragmentary compression.
For a comminuted fracture, extensive reconstruction of every fragment may damage blood supply. A nail or bridge plate can span the comminuted region while preserving intermediate fragments.
For a segmental fracture, a nail can stabilize multiple fracture levels along the same bone, provided the entry point and locking options are suitable.
For a fracture with a short end segment, a periarticular locking plate may capture the available bone more effectively through multiple directional screws.
Factor 3: Soft-Tissue Condition
The condition of the skin, muscle, periosteum, and local blood supply can be as important as the fracture itself.
A plate positioned directly beneath compromised skin may increase concern about wound breakdown or implant exposure. This is particularly relevant in areas with limited soft-tissue coverage, such as the distal tibia.
Intramedullary nailing may reduce exposure directly over the fracture, but it requires a safe entry portal and adequate access for locking screws.
Minimally invasive plate osteosynthesis can reduce soft-tissue stripping compared with traditional open plating. Therefore, the comparison should not be simplified to “nails are minimally invasive and plates are open.” Either implant can be used with more or less invasive techniques.
Factor 4: Bone Quality
Poor bone quality can affect screw purchase, construct stability, and the risk of fixation failure.
Locking plates create a fixed-angle relationship between the screws and plate. This can be helpful when conventional screws cannot generate reliable compression against weak cortical bone.
Intramedullary nails can also be effective in osteoporotic bone because they span a long section of the bone and use multiple locking screws. However, fixation still depends on the amount and quality of bone available around the locking screws.
In severe osteoporosis or highly unstable fractures, a single nail or plate may not be sufficient. Selected cases may require augmentation, additional fixation, bone grafting, or combined nail-plate constructs.
Factor 5: Reduction Requirements
The ability to obtain a good reduction should influence implant selection.
Intramedullary nailing often uses indirect reduction. The surgeon restores the main mechanical parameters:
Bone length
Coronal alignment
Sagittal alignment
Rotation
Joint orientation
Plate fixation can permit direct visualization of the fracture and more precise positioning of specific fragments.
For distal femur fractures, recent comparative evidence has not shown a clear universal advantage for either retrograde nails or lateral locked plates in revision risk and healing outcomes. Implant choice should therefore account for fracture morphology and the surgeon’s ability to achieve and maintain reduction with the selected device.
Factor 6: Entry-Site and Approach-Related Risks
Every implant has approach-specific concerns.
Potential concerns associated with intramedullary nails include:
Entry-point injury
Anterior knee pain after some tibial nailing procedures
Shoulder symptoms after antegrade humeral nailing
Malalignment in proximal or distal fractures
Difficulty controlling rotation
Iatrogenic fracture during insertion
Problems caused by prominent locking screws
Potential concerns associated with plates include:
Larger surgical exposure
Periosteal and soft-tissue disruption
Wound complications
Implant prominence
Tendon irritation
Injury to nearby nerves or vessels
Stress concentration at the end of the plate
Screw loosening or plate breakage if the construct is inappropriate
These risks depend on the anatomical site, implant design, surgical technique, and patient factors. They should not be interpreted as complications that occur with every procedure.
Factor 7: Rehabilitation and Weight Bearing
Implant selection should support the intended rehabilitation plan, but neither implant alone determines when full loading can begin.
Postoperative loading depends on:
Intramedullary nails often provide favorable mechanical conditions for axial loading in long-bone shaft fractures. Plates can also support early mobilization when an appropriate construct has been created.
The surgeon must determine the weight-bearing schedule based on the complete clinical and radiographic picture.
A Practical Selection Framework
The following framework can help organize the decision:
Consider an Intramedullary Nail When:
The fracture is primarily diaphyseal.
The medullary canal can accept the implant.
The proximal and distal segments are long enough for locking.
Indirect reduction can restore satisfactory alignment.
Avoiding extensive exposure at the fracture site is desirable.
The nail can adequately control length and rotation.
The entry point can be used without unacceptable joint or soft-tissue damage.
Consider a Plate When:
The fracture extends into a joint.
Direct reconstruction of fragments is required.
The proximal or distal segment is too short for reliable nail locking.
The fracture requires buttress or antiglide support.
Precise angular alignment is difficult to maintain with a nail.
The medullary canal is obstructed or unsuitable.
A contoured plate can provide more effective fragment control.
Interfragmentary compression is part of the fixation strategy.
Can Intramedullary Nails and Plates Be Used Together?
Yes. Certain complex fractures may benefit from a combined nail-plate construct.
A nail can provide central load sharing, while a plate adds control of alignment, rotation, or a short periarticular fragment. Combined constructs are increasingly discussed for difficult distal femur fractures, severe comminution, poor bone quality, nonunion, or situations where a single implant may not provide enough stability.
However, adding a second implant also increases surgical complexity, cost, operative exposure, and the number of implant interfaces. The decision must be supported by the fracture pattern and the mechanical objectives of fixation.
Common Mistakes in Implant Selection
Choosing by Implant Preference Alone
Surgeons and hospitals may be more familiar with one system, but familiarity should not override fracture anatomy.
Ignoring the Joint Surface
A fracture that appears to be metaphyseal on one image may have an articular extension. Appropriate imaging and preoperative planning are essential.
Selecting a Nail Without Sufficient Distal or Proximal Fixation
A nail may be mechanically central, but it still requires adequate locking-screw purchase in the end fragments.
Using an Overly Rigid Plate Construct
Too many screws placed too close to the fracture can create an excessively stiff construct in situations where controlled interfragmentary motion is needed for callus formation.
Failing to Control Rotation
Rotational deformity can occur even when length and frontal-plane alignment appear acceptable. This is a particular concern during closed nailing.
Ignoring Soft-Tissue Risk
A mechanically ideal plate may not be the best biological choice when the local skin and soft tissues are severely damaged.
Questions to Ask Before Selecting the Implant
Before deciding between a nail and a plate, the surgical team should ask:
Is the fracture diaphyseal, metaphyseal, periarticular, or intra-articular?
Does the joint surface require direct reconstruction?
Are the end fragments long enough for stable nail locking?
Can the medullary canal accept the required nail?
Can alignment and rotation be controlled with closed or indirect reduction?
What is the condition of the surrounding soft tissue?
Is bone quality sufficient for the planned screws?
Does the implant provide the required compression, bridging, or buttress effect?
What postoperative loading and rehabilitation are expected?
Are compatible instruments and backup implants available?
Frequently Asked Questions
Are intramedullary nails stronger than plates?
Not in every situation. Intramedullary nails have a favorable central position for resisting bending in many long-bone shaft fractures. Plates may provide better control of short, periarticular, or articular fragments. Overall stability depends on the complete construct and fracture pattern.
Do intramedullary nails heal faster than plates?
There is no universal answer. Some fracture-specific studies report differences in union time, but outcomes vary by anatomical location, surgical technique, reduction quality, and patient characteristics. Evidence from one bone should not automatically be applied to another.
Are nails better for open fractures?
A nail may reduce the need for additional exposure around the fracture, but open-fracture treatment depends heavily on contamination, debridement, soft-tissue coverage, vascular condition, infection risk, and the patient’s overall status. Temporary external fixation may be required before definitive internal fixation.
Are plates always required for joint fractures?
Plates are frequently used because they can support reconstructed articular fragments. However, some articular extensions may be stabilized with screws before inserting a nail. The specific fracture anatomy determines the final construct.
Which method is better for tibial fractures?
For many tibial shaft fractures, intramedullary nailing is commonly used. In distal tibial fractures, both nailing and minimally invasive plating may be appropriate. Nails may reduce wound-related concerns, while plates may provide more precise control of certain distal fragments.
Which method is better for humeral shaft fractures?
Both are accepted options. Plate fixation can provide direct reduction and may avoid entry through the shoulder, while intramedullary nailing may require less exposure at the fracture site. The fracture pattern, radial nerve status, shoulder condition, and surgical approach should guide selection.
Conclusion
Choosing between intramedullary nails and plates requires more than comparing implant specifications. The decision must integrate fracture location, fragment size, joint involvement, soft-tissue condition, bone quality, reduction requirements, mechanical stability, and the intended rehabilitation plan.
Intramedullary nails are often well suited to long-bone shaft fractures because they provide central fixation and can frequently be inserted without extensively exposing the fracture. Plates offer greater flexibility for anatomical reconstruction, fragment-specific fixation, compression, buttressing, and periarticular support.
Neither implant is universally superior. The best fixation method is the one that achieves acceptable alignment and stability while preserving the biological environment needed for fracture healing.
For orthopedic implant manufacturers and distributors, developing a complete trauma portfolio should therefore include more than one fixation solution. Compatible intramedullary nails, anatomical locking plates, screws, targeting devices, reduction tools, and sterilization trays allow healthcare customers to select an implant system according to the specific fracture rather than the limitations of the available inventory.
This article is intended for general professional education and product-selection discussion. It does not replace patient-specific evaluation, approved product labeling, local regulations, or the judgment of a qualified orthopedic surgeon.
