How to Evaluate Pull-Out Strength in Cervical Fixation Systems

Oct. 28, 2026

Evaluating pull-out strength is essential when selecting and validating Cervical Spine Implants for anterior or posterior cervical fixation. A screw may have an appropriate diameter and insertion torque yet still provide inadequate fixation in weak bone or under repeated loading. A structured evaluation of cervical screw pull-out strength combines controlled mechanical testing, bone quality assessment, failure analysis, and comparison with relevant reference devices. For medical device manufacturers, engineers, and procurement teams, the objective is to quantify fixation resistance, identify potential failure mechanisms, and determine whether the cervical fixation system meets its intended performance requirements.

Why Pull-Out Strength Matters for Cervical Spine Implants

Pull-out strength is the axial force required to extract a screw from its supporting bone or test substrate under specified conditions. It provides a quantitative measurement of the resistance of the screw-bone interface to extraction.

In cervical fixation, screw loosening or pull-out can compromise construct stability and may contribute to hardware migration, delayed fusion, or revision surgery. The actual consequences depend on the implant location, the patient's anatomy, bone quality, and the extent of fixation failure.

Key Factors Affecting Cervical Screw Pull-Out Strength

  • Bone mineral density: Lower bone density can reduce the amount of bone available to resist screw extraction.

  • Screw geometry: Diameter, length, core diameter, thread pitch, and thread depth influence how the screw engages the surrounding bone.

  • Insertion technique: Pilot-hole preparation, insertion angle, screw trajectory, and cortical engagement can affect fixation resistance.

  • Loading conditions: Repeated bending, rotation, and other mechanical loads can influence fixation stability over time.

  • Fixation system design: Plate-screw connections, rod-screw interfaces, and locking mechanisms affect the behavior of the assembled construct.

Pull-out strength is only one component of cervical fixation biomechanical testing. A screw with a high axial extraction force does not automatically demonstrate superior fatigue resistance, torsional stability, or clinical performance.



What Equipment Is Needed to Test Cervical Spine Implants?

Before testing begins, the laboratory should define the test objective, specimen type, loading method, measurement parameters, and acceptance criteria. The following materials and equipment are commonly used in cervical screw pull-out testing.

Materials and Equipment for Cervical Screw Testing

  • Test specimens: Standardized synthetic bone blocks or appropriately selected cadaveric cervical vertebrae.

  • Test implants: Cervical screws or fixation components representing the intended device configuration.

  • Universal testing machine: A calibrated mechanical testing system capable of applying controlled tensile loads.

  • Load cell: A calibrated force sensor with a suitable range and resolution for the expected extraction force.

  • Specimen fixtures: A stable mounting system that minimizes unintended movement during testing.

  • Insertion instruments: Appropriate drill guides, pilot-hole preparation tools, screwdrivers, and torque-measuring equipment.

  • Measurement and recording tools: Calipers, data acquisition software, specimen identification records, and imaging equipment when necessary.

Synthetic bone models offer greater consistency for controlled comparisons, while cadaveric specimens provide more anatomically relevant information. Neither model reproduces every aspect of living bone, so the selection should reflect the purpose of the study.

Relevant Standards for Cervical Fixation Mechanical Testing

Applicable standards should be selected according to the device design, intended use, and specific mechanical question being investigated.

  • ASTM F543: Addresses mechanical testing of metallic medical bone screws, including relevant screw performance characteristics.

  • ASTM F1717: Provides methods for static and fatigue testing of spinal implant constructs in a vertebrectomy model.

  • ASTM F1798: Addresses static and fatigue properties of interconnection mechanisms and subassemblies used in spinal arthrodesis implants.

These standards address different aspects of implant performance and are not interchangeable. ASTM F1717, for example, evaluates construct-level behavior rather than establishing a universal minimum pull-out force for individual cervical screws.

The U.S. Food and Drug Administration's guidance for spinal system 510(k) submissions also discusses mechanical testing considerations for cervical fixation systems. The applicable testing matrix and regulatory requirements should be confirmed for the specific device and submission.

How to Evaluate Pull-Out Strength in Cervical Fixation Systems Step by Step

Step 1: Define the Cervical Spine Implant Test Objective

Begin by identifying the question the test must answer. The objective may be to compare two screw designs, investigate the effect of screw length, evaluate fixation in low-density bone, or characterize a new cervical plate-and-screw system.

Distinguish between individual screw testing and complete construct testing.

  • Individual screw testing: Measures the resistance of the screw-bone interface to axial extraction.

  • Construct testing: Evaluates the mechanical behavior of an assembled fixation system, including the interactions between screws, plates, rods, and connectors.

These tests provide complementary information. A screw may demonstrate high pull-out strength while the complete construct remains susceptible to bending, torsion, fatigue, or component loosening.

Step 2: Select Appropriate Cervical Screw Test Specimens

Choose a specimen model that represents the intended application and supports reliable measurements.

For preliminary design comparisons, synthetic bone blocks can help isolate the effects of screw geometry and insertion conditions. Cadaveric cervical vertebrae may be more appropriate when the study needs to examine anatomical variation or differences in bone quality.

When using cadaveric specimens, document the vertebral level, bone quality, specimen preparation, and relevant anatomical characteristics. Bone mineral density should be measured or otherwise characterized when it is important to the study objective.

The sample size should be justified according to expected variability, statistical power, and applicable regulatory expectations. A small sample may reveal an obvious difference between designs but may not provide sufficient evidence for a reliable comparison.

Step 3: Standardize Cervical Screw Geometry and Insertion Conditions

Record the screw specifications and establish a consistent insertion protocol before collecting measurements.

Important variables include:

  • Screw diameter, length, core diameter, thread pitch, and thread profile.

  • Pilot-hole diameter and preparation method.

  • Insertion angle, trajectory, and depth.

  • Insertion torque and any specified tapping procedure.

  • Specimen density, orientation, and mounting conditions.

When investigating the effect of one design variable, keep other conditions as consistent as possible. If screw geometry, pilot-hole size, and insertion technique all change simultaneously, it becomes difficult to identify which variable caused a difference in pull-out strength.

Insertion torque should be recorded when relevant, but it should not replace direct pull-out testing. The relationship between insertion torque and extraction resistance depends on bone quality, screw geometry, and insertion conditions.

Step 4: Align the Cervical Screw for Axial Pull-Out Testing

Secure the specimen in an appropriate fixture and align the testing machine's loading axis with the screw's longitudinal axis. The fixture must prevent unintended movement without introducing additional forces that alter the intended failure mechanism.

Misalignment can introduce bending forces and distort the measured extraction resistance. An unstable fixture may also produce displacement that is incorrectly attributed to screw movement.

Before testing, verify machine calibration, load-cell suitability, fixture stability, and data acquisition settings. Document the test configuration so that the method can be reviewed and reproduced.

Step 5: Apply a Controlled Axial Tensile Load

Apply the tensile load according to the approved test protocol. The loading rate, displacement control, sampling frequency, and termination criteria should remain consistent across comparable specimens.

Record force and displacement throughout the test at a sampling rate sufficient to capture the mechanical response. Continue until the defined failure endpoint is reached.

The principal measurement is the peak force recorded before or at the specified extraction failure. This value is commonly reported in newtons (N) and referred to as peak pull-out force.

Additional measurements may include:

  • Load-displacement curve: Shows how the applied force changes as the screw moves relative to the specimen.

  • Initial stiffness: Describes the force-displacement relationship within a defined initial region.

  • Displacement at peak force: Indicates the movement recorded when the maximum force is reached.

  • Failure mode: Identifies whether failure involves bone stripping, screw movement, substrate fracture, or another observed mechanism.

Pull-out testing should be performed by trained laboratory personnel using an approved mechanical testing procedure. These steps describe laboratory evaluation, not instructions for surgical implantation.

Step 6: Calculate and Compare Cervical Screw Pull-Out Strength

Calculate the mean, standard deviation, and appropriate confidence intervals for each test group. Report the sample size and individual measurements when appropriate.

For example, suppose one group of cervical screws has a mean pull-out force of 600 N, while another has a mean of 450 N. The first group has a 33.3% higher mean pull-out force relative to the second group.

Relative difference = (600 - 450) / 450 x 100% = 33.3%

This calculation describes the difference between the measured means. It does not establish statistical significance, prove a clinically meaningful advantage, or demonstrate compliance with a regulatory requirement.

Interpret the results alongside specimen variability, bone quality, failure modes, and the study's predefined objectives. If the measurements vary substantially, investigate whether anatomical differences, insertion conditions, or specimen preparation explain the variation.

Step 7: Evaluate the Complete Cervical Fixation System

Individual screw pull-out testing should be supplemented with appropriate construct-level testing when the objective is to evaluate a complete cervical fixation system.

Depending on the device design and intended use, additional evaluations may include:

  • Static compression bending and tensile bending.

  • Static torsion.

  • Dynamic fatigue testing.

  • Interconnection strength and resistance to loosening.

  • Inspection of component deformation, fracture, and failure interfaces.

Testing should represent the relevant worst-case device configuration, supported by a documented rationale. The selection of components, loading modes, and test conditions should reflect the design features most likely to affect mechanical performance.

Published Evidence: What Cervical Screw Pull-Out Tests Show

Published biomechanical studies demonstrate why cervical screw fixation should be evaluated through quantitative testing rather than inferred from screw appearance or insertion torque alone.

Biomechanical Study Comparing Three Cervical Screw Trajectories

A recent cadaveric biomechanical study evaluated 180 screws across 18 cervical spine specimens. The investigators compared cervical pedicle screws, pedicle inlet screws, and lateral mass screws measuring 3.5 mm in diameter, with placement across the C3 to C7 levels.

The reported mean pull-out strengths were:

  • Cervical pedicle screws: 814.6 ± 387.3 N.

  • Pedicle inlet screws: 593.2 ± 289.9 N.

  • Lateral mass screws: 392.4 ± 284.0 N.

Pedicle inlet screws demonstrated approximately 51% higher mean pull-out strength than lateral mass screws in this study. Mean insertion torque was approximately 3.6 ± 1.7 Nm across the three groups, with no statistically significant difference reported for that measurement.

The results indicate that screw trajectory and fixation geometry can influence measured extraction resistance even when insertion torque is similar. However, the standard deviations were substantial, demonstrating considerable variability between measurements.

These findings are specific to the study's specimens, screw dimensions, and test methods. They should not be treated as universal minimum requirements for cervical spine implants or as proof that one screw trajectory is clinically superior for every patient.

Why Bone Mineral Density Matters More Than Insertion Torque Alone

A 2004 biomechanical study examined 54 cervical vertebrae from 12 cervical spines. The investigators assessed bone mineral density, insertion torque, and pull-out strength for anterior cervical screws.

The researchers found a strong relationship between bone mineral density and screw pull-out strength, while insertion torque showed a weaker relationship with pull-out strength.

This finding has a practical implication for implant testing: insertion torque provides useful supporting information, but it cannot independently establish the strength of the screw-bone interface. Bone characteristics and direct mechanical measurements should be considered together.

Both studies reinforce the importance of controlling specimen conditions and documenting test variability when comparing cervical fixation systems.

A Clinical Case Illustrating the Importance of Cervical Fixation Evaluation

A published clinical case report described a 52-year-old man who underwent C4 corpectomy and anterior cervical discectomy and fusion at C5-C6 and C6-C7 with anterior plating to treat cervical myeloradiculopathy.

Postoperative imaging raised concerns about screw backing-out and possible nonunion. Although revision surgery was recommended, the patient declined further surgery. Approximately 14 months after the operation, one screw was eventually expelled from his body. Subsequent evaluation did not identify an esophageal or laryngeal defect, and the report described no major morbidity from the event.

This is a documented clinical case, not a mechanical pull-out experiment. It does not provide a numerical pull-out force or establish that a particular bench test would have predicted the outcome.

Its relevance lies in the difference between initial mechanical fixation and long-term clinical performance. Screw migration may develop over time, and a locking mechanism cannot eliminate every possibility of hardware loosening or backing-out.

The case reinforces two principles: mechanical testing should address the failure modes relevant to the device, and clinical follow-up remains essential for identifying complications that laboratory testing cannot fully predict.

Common Errors in Cervical Spine Implant Pull-Out Testing

Error 1: Treating Pull-Out Strength as a Complete Measure of Fixation Stability

Why it matters: Axial extraction resistance does not measure every loading mode experienced by a cervical fixation system.

Solution: Combine screw-bone interface testing with appropriate bending, torsion, fatigue, and interconnection testing based on the device's intended use.

Error 2: Comparing Different Bone Models Without Qualification

Why it matters: Synthetic substrates and cadaveric vertebrae differ in density, structure, and variability. Their results cannot automatically be compared as though they were obtained under identical conditions.

Solution: Document specimen type, bone quality, preparation, insertion method, loading rate, and test setup. Use matched conditions when comparing implant designs.

Error 3: Assuming Higher Insertion Torque Means Higher Pull-Out Strength

Why it matters: Insertion torque measures resistance during screw placement, not solely the force required to extract the screw.

Solution: Record insertion torque as a supporting parameter and conduct direct pull-out testing to quantify extraction resistance.

Error 4: Using Peak Force as the Only Acceptance Criterion

Why it matters: A mean or maximum force can conceal high specimen variability, inconsistent failure modes, or an unexpectedly weak individual specimen.

Solution: Review the complete load-displacement data, variation across specimens, failure observations, and predefined statistical criteria. There is no single pull-out force threshold that applies to every cervical fixation system.

Error 5: Ignoring Worst-Case Device Configurations

Why it matters: Testing only a favorable screw size or configuration may fail to characterize the weakest relevant design.

Solution: Identify the most challenging relevant configurations and document why the selected screws, materials, interfaces, and assemblies represent an appropriate worst-case evaluation.

Error 6: Assuming Laboratory Results Guarantee Clinical Performance

Why it matters: Laboratory tests cannot reproduce every biological, anatomical, surgical, and rehabilitation-related factor that influences implant performance.

Solution: Interpret bench data alongside the intended use, risk assessment, applicable clinical evidence, and post-market information where available.

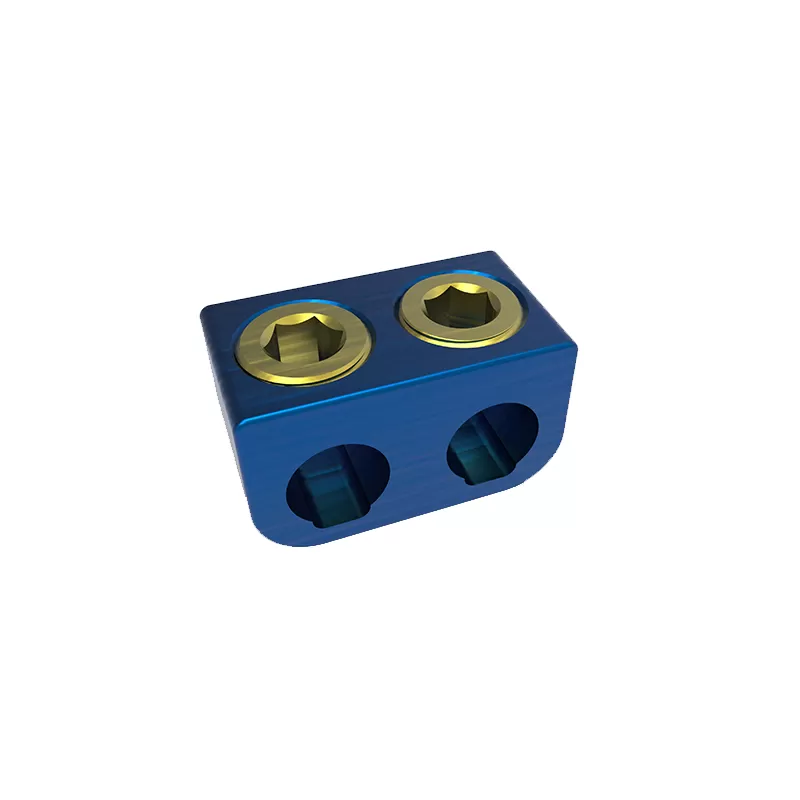

How to Assess Cervical Spine Implants From ATOM

For medical device manufacturers, distributors, and procurement teams, a reliable cervical fixation evaluation begins with clear product specifications and a documented test plan. When reviewing ATOM cervical spine implants, product-specific performance claims should be supported by relevant technical documentation and verified test reports rather than assumptions based on design features alone.

When evaluating a cervical fixation system, request documentation covering:

  • Screw and construct specifications, including dimensions and materials.

  • Mechanical test methods and specimen descriptions.

  • Pull-out force results, sample sizes, and statistical variability.

  • Static and fatigue testing of the complete construct where applicable.

  • Failure analysis and the rationale for worst-case configuration selection.

  • Relevant regulatory documentation and device-specific instructions for use.

A well-documented evaluation helps engineering teams distinguish measured mechanical performance from assumptions about clinical outcomes. It also supports more defensible product comparisons and clearer technical communication between manufacturers, laboratories, and procurement teams.

Frequently Asked Questions About Cervical Spine Implant Pull-Out Strength

What Is Pull-Out Strength in Cervical Spine Implants?

Pull-out strength is the peak axial tensile force required to withdraw a screw from its supporting bone or test substrate under specified conditions. It is generally reported in newtons and describes one aspect of screw fixation performance.

What Is a Good Pull-Out Strength for Cervical Screws?

There is no universal minimum pull-out force suitable for every cervical screw. The result depends on screw geometry, bone quality, specimen type, insertion technique, and test protocol. Acceptance criteria should be justified for the specific device and its intended use.

Does Higher Pull-Out Strength Mean a Safer Cervical Fixation System?

Not necessarily. Higher pull-out resistance can be beneficial for the screw-bone interface, but overall system performance also depends on fatigue resistance, bending and torsional stability, interconnection strength, surgical placement, and biological healing.

How Does Bone Mineral Density Affect Cervical Screw Pull-Out Strength?

Bone mineral density is associated with the amount and quality of bone available to resist extraction. Lower bone density may reduce screw purchase and increase fixation failure risk. The relationship varies with bone structure, screw design, and insertion conditions.

Can Insertion Torque Replace a Pull-Out Test?

No. Insertion torque measures resistance while the screw is being inserted, whereas pull-out testing measures the force required to extract it. Although these measurements can be related, they are not interchangeable.

Which Standards Should Be Considered for Cervical Fixation Testing?

ASTM F543 addresses mechanical testing of metallic medical bone screws, ASTM F1717 addresses spinal implant construct testing in a vertebrectomy model, and ASTM F1798 addresses interconnection mechanisms and subassemblies. The appropriate standards and any required modifications depend on the device, test objective, and regulatory pathway.

How Many Samples Are Required for Cervical Screw Pull-Out Testing?

The required sample size depends on measurement variability, study objectives, statistical power, and applicable regulatory expectations. A predefined sample-size justification is preferable to selecting an arbitrary number of specimens.

Does Pull-Out Testing Predict Long-Term Cervical Fusion Success?

Pull-out testing provides information about resistance to axial screw extraction under defined laboratory conditions. It does not directly measure bone fusion, biological healing, or the full range of forces experienced in the body. Long-term performance requires a broader evaluation that includes construct mechanics, biological factors, and clinical follow-up.

Conclusion: A Practical Framework for Evaluating Cervical Spine Implants

Evaluating pull-out strength in cervical fixation systems requires more than measuring the maximum force needed to extract a screw. A defensible assessment begins with a clear test objective, representative specimens, standardized insertion conditions, calibrated equipment, controlled axial loading, and documented failure analysis.

Published biomechanical evidence shows that screw trajectory, bone mineral density, and insertion conditions can influence measured pull-out resistance. Clinical cases also demonstrate why mechanical testing must be combined with appropriate clinical assessment and follow-up rather than treated as a guarantee against hardware migration.

For engineering teams comparing Cervical Spine Implants, the most useful evaluation combines quantitative pull-out resistance, the complete load-displacement curve, appropriate fatigue and construct-level testing, and transparent reporting of uncertainty. These measures help manufacturers and procurement professionals make evidence-based comparisons of cervical fixation system performance without confusing a single laboratory result with overall clinical safety.
