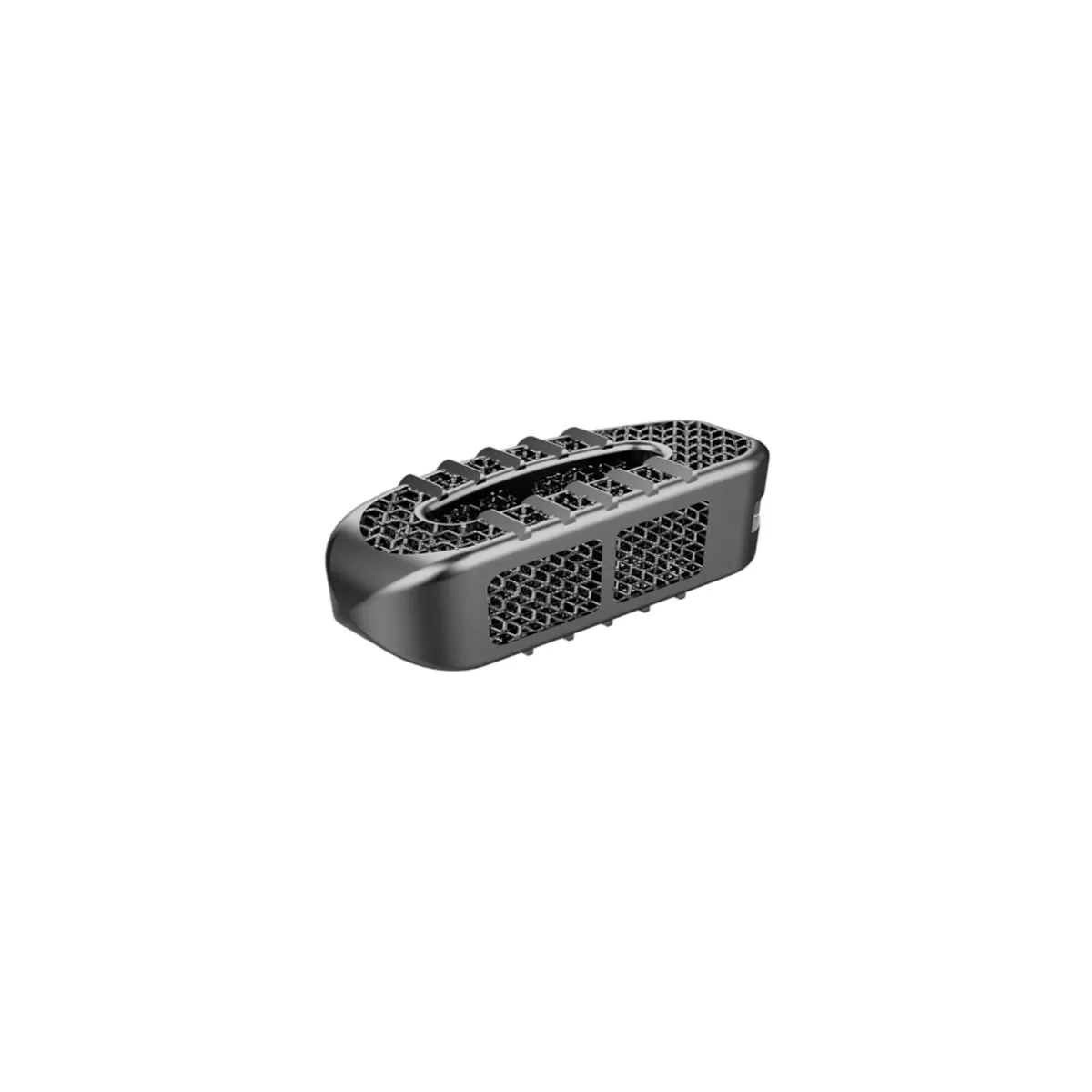

The introduction of 3D Printing Fusion Cage technology has significantly improved spinal fusion outcomes, largely due to its ability to create highly controlled porous structures. Unlike traditional solid implants made from machined titanium or PEEK, 3D printed cages feature interconnected lattice architectures that closely mimic natural cancellous bone. This innovation enhances osseointegration, implant stability, and long-term clinical success.
For orthopedic implant distributors, hospitals, and OEM buyers, understanding the advantages of porous fusion cage design is essential when selecting advanced spinal implant solutions.
What Is a Porous Structure in a 3D Printing Fusion Cage?
A porous structure refers to a three-dimensional network of interconnected pores integrated into the fusion cage body. These pores are precisely manufactured using additive manufacturing technologies such as:
Selective Laser Melting (SLM)
Electron Beam Melting (EBM)
Direct Metal Laser Sintering (DMLS)
The pore size, shape, and distribution can be engineered to replicate the mechanical and biological properties of human trabecular bone.
Typical specifications:
Pore size: 300–800 μm
Porosity: 50–80%
Material: Titanium alloy (Ti6Al4V ELI, ASTM F136)
These characteristics are critical for promoting bone growth and implant stability.
1. Enhanced Osseointegration and Faster Bone Ingrowth
One of the most important advantages of porous 3D printing fusion cages is their ability to promote osseointegration, which is the direct structural and functional connection between bone and implant.
Why porous structures improve bone integration:
Interconnected pores allow bone cells to migrate into the implant
Increased surface area promotes osteoblast attachment
Micro-rough surfaces enhance biological fixation
Improved vascularization supports bone regeneration
Clinical studies show that porous titanium implants achieve faster and stronger fusion compared to smooth or solid implants.
For hospitals and surgeons, this means:
Faster fusion time
Reduced risk of implant loosening
Improved patient recovery outcomes
2. Reduced Risk of Implant Subsidence
Subsidence occurs when the fusion cage sinks into the vertebral endplate due to excessive stress concentration. This can lead to fusion failure, pain, and revision surgery.
Porous 3D printed cages reduce this risk through:
Elastic modulus closer to natural bone
Traditional solid titanium:
Elastic modulus: ~110 GPa
Human cancellous bone:
Elastic modulus: 0.1–2 GPa
Porous titanium structure:
Significantly reduced effective stiffness
Better load sharing with surrounding bone
This minimizes stress shielding and distributes force more evenly.
Result:
Lower subsidence rates
Improved implant longevity
Better spinal alignment maintenance
3. Superior Initial and Long-Term Implant Stability
Primary stability is essential for successful spinal fusion.
Porous lattice designs provide:
Increased friction coefficient between implant and bone
Enhanced mechanical interlocking
Reduced micromotion after implantation
Long-term stability improves because bone grows into the pores, creating biological fixation rather than relying solely on mechanical fixation.
Benefits for surgeons and patients:
Reduced implant migration
Increased fusion success rate
Lower revision surgery risk
4. Improved Load Distribution and Stress Sharing
Natural bone is porous and designed to distribute loads efficiently. Solid implants can disrupt this balance.
Porous fusion cages offer:
Uniform stress distribution
Reduced stress shielding
Preservation of surrounding bone density
This helps maintain healthy bone structure around the implant over time.
For procurement teams, this translates to:
Higher long-term implant performance
Reduced complication rates
Increased clinical confidence
5. Increased Surface Area for Biological Activity
Porous structures dramatically increase the implant's total surface area.
Benefits include:
More area for bone cell attachment
Enhanced protein adsorption
Improved osteogenic response
Compared to solid cages, porous cages provide up to 5–10 times greater surface area, accelerating biological integration.
6. Customizable Pore Size and Architecture
One of the biggest advantages of additive manufacturing is design flexibility.
Manufacturers can customize:
Pore size
Porosity percentage
Lattice geometry
Mechanical strength
This allows development of cages optimized for:
Cervical spine fusion
Lumbar spine fusion
TLIF, PLIF, ALIF procedures
Patient-specific implants
OEM buyers can also request proprietary designs.
7. Lightweight Design Without Sacrificing Strength
Porous cages are lighter than solid implants while maintaining high strength.
Advantages include:
Easier surgical handling
Reduced implant weight load on vertebrae
Improved patient comfort
Titanium lattice structures provide excellent strength-to-weight ratio.
8. Improved Imaging Compatibility
Although titanium is radiopaque, porous titanium structures can improve imaging assessment compared to solid implants.
Benefits:
Better visualization of bone fusion progress
Easier postoperative monitoring
Compatible with CT and MRI imaging
Some designs also include open windows for graft visualization.
9. Reduced Risk of Implant Loosening
Solid implants rely heavily on mechanical fixation.
Porous cages achieve:
Mechanical fixation initially
Biological fixation over time
This dual fixation mechanism significantly reduces loosening risk.
Particularly important for:
Elderly patients
Osteoporotic bone
Multi-level fusion procedures
10. Supports Bone Graft Integration
Fusion cages are typically filled with:
Autograft bone
Allograft bone
Synthetic bone graft substitutes
Porous cage structures help:
Retain graft material
Promote graft vascularization
Improve fusion efficiency
This increases overall fusion success rates.
11. Enabled by Advanced 3D Printing Manufacturing
Traditional machining cannot create complex internal porous structures.
3D printing enables:
Precise lattice control
Repeatable production quality
Complex geometries impossible with machining
Common manufacturing methods include:
SLM (Selective Laser Melting)
EBM (Electron Beam Melting)
These technologies ensure high precision and consistency.
12. Clinical Advantages for Hospitals and Surgeons
Hospitals adopting porous 3D printing fusion cages report:
Higher fusion success rates
Faster patient recovery
Reduced complication rates
Lower revision surgery incidence
This improves both clinical outcomes and hospital cost efficiency.
Conclusion
The porous structure of a 3D Printing Fusion Cage represents a major advancement in spinal implant technology. By closely mimicking natural bone architecture, porous titanium cages promote faster bone integration, reduce implant failure risk, and improve long-term stability.
Key advantages include:
Faster osseointegration
Reduced subsidence risk
Superior implant stability
Improved load distribution
Enhanced biological fixation
Customizable design flexibility
For hospitals, surgeons, and orthopedic implant buyers, porous 3D printed fusion cages offer a reliable, high-performance solution that aligns with modern surgical and clinical requirements.
