A reliable cervical fixation system is not defined by one screw, one plate or one material specification.
It is a complete implant-and-instrument platform designed to provide predictable fixation while giving surgeons sufficient flexibility to adapt the construct to cervical anatomy and the surgical approach being used.
Depending on the procedure, cervical fixation may involve:
Anterior cervical plates and screws
Posterior cervical screws and rods
Lateral mass screws
Cervical pedicle screws
Hooks
Occipital fixation components
Cross-connectors
Rod-to-rod connectors
Cervico-thoracic transition components
These implants perform different functions, but the same basic question applies to all of them:
Can the system provide stable fixation, controlled implant placement and efficient construct assembly without introducing unnecessary complexity?
Current cervical systems from major manufacturers illustrate how important the complete system architecture has become. Modern anterior systems incorporate dedicated screw-locking mechanisms, while posterior cervico-thoracic systems emphasize low-profile implants, polyaxial screw heads, reduction capability, rod options and streamlined instrumentation.
Below are the most important elements to evaluate when determining whether a cervical fixation system is genuinely reliable.
1. Reliable Screw Purchase Starts With the Screw Design
Screws are one of the most important components of any cervical fixation construct.
Whether the system uses anterior vertebral-body screws, lateral mass screws or cervical pedicle screws, the implant must establish appropriate fixation in relatively small bony anatomy.
Important screw design variables include:
These parameters should not be considered independently.
For example, changing the outer diameter without considering core diameter changes the amount of thread engagement and the mechanical characteristics of the screw.
Similarly, aggressive thread geometry may improve insertion behavior in one application but may not be appropriate for every anatomical location.
A reliable cervical fixation system therefore requires a purpose-designed screw portfolio, rather than simply scaling down a thoracolumbar screw.
2. Multiple Screw Diameters and Lengths Are Essential
Cervical anatomy varies considerably between patients and between vertebral levels.
A system containing only a few screw sizes may force the surgeon to compromise implant selection.
A more complete cervical fixation system typically offers several:
Screw diameters
Screw lengths
Screw types
Head configurations
For posterior cervical fixation, different screw options may be required for:
Lateral mass fixation
Cervical pedicle fixation
Upper thoracic pedicle fixation
Occipito-cervical constructs
Revision procedures
Commercial posterior cervical platforms therefore tend to provide broad implant portfolios rather than a single universal screw. Globus Medical's current posterior cervical systems, for example, include multiple screw and junctional options intended to support constructs extending through the cervico-thoracic region.
From a procurement perspective, screw variety is not simply about having more SKUs.
It determines whether the same system can handle a useful range of patient anatomy and procedural requirements.
3. The Screw-Head Range of Motion Matters
Posterior cervical screw placement does not always result in perfectly aligned screw heads.
Anatomical constraints frequently require screws to enter at different trajectories.
The screw head therefore needs enough freedom to accommodate rod placement without forcing the surgeon to excessively manipulate the screw or rod.

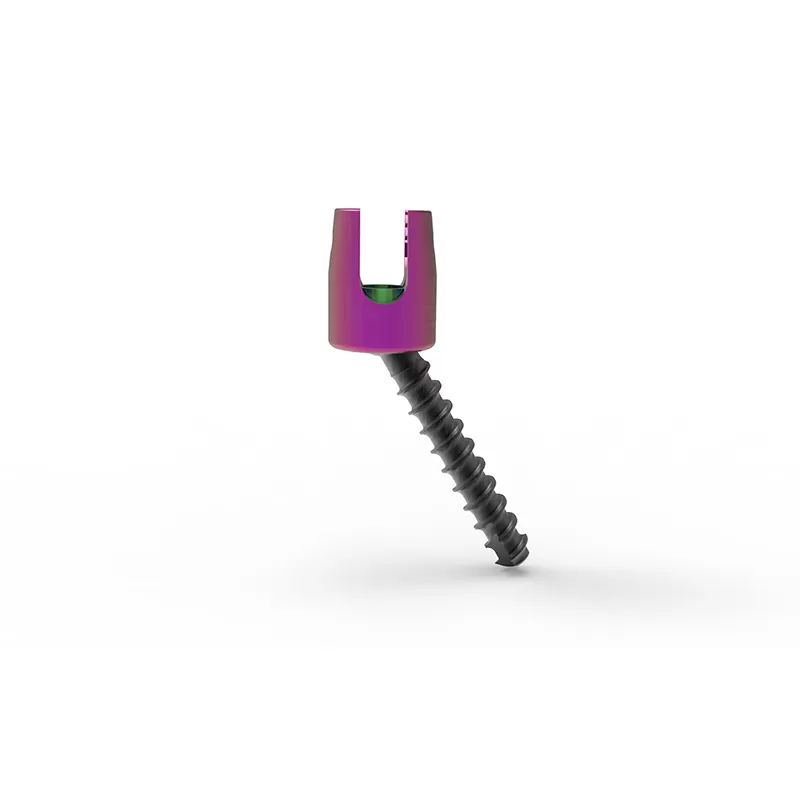

Polyaxial Screw Heads
Polyaxial screws allow the head to move relative to the screw shaft.
This can help accommodate different trajectories and simplify rod capture.
Important factors include:
Angulation range
Head stability
Rod capture geometry
Locking behavior
Head profile
A larger range of motion can make construct assembly easier, particularly near the cervico-thoracic junction.
However, range of motion alone is not enough.
The head must still provide stable fixation after final locking.
For example, current posterior cervico-thoracic systems may offer approximately 90° of conical or polyaxial angulation specifically to facilitate complex construct assembly.
4. The Locking Mechanism Is Critical
One of the most important elements of a reliable cervical fixation system is the mechanism that locks screws, plates and rods together.
A poorly designed locking interface can introduce problems such as:
For this reason, modern cervical systems frequently treat locking technology as a major design feature.
Anterior Cervical Plate Locking
In an anterior plate system, the locking mechanism is intended to help prevent the bone screws from backing out of the plate.
Different systems may use:
For example, the Medtronic Atlantis Vision Elite plate uses a quarter-turn locking mechanism with visual and tactile confirmation, while the CODA anterior cervical plate incorporates an active integrated locking mechanism.
This illustrates an important principle:
The locking mechanism should make it easy to confirm that fixation has actually been completed.
Posterior Cervical Rod Locking
For screw-and-rod constructs, the set screw or locking cap must reliably capture the rod within the screw tulip.
Important considerations include:
Some current posterior systems specifically use thread or taper-lock technologies intended to simplify final locking and manage forces generated during construct assembly.
5. Low-Profile Implant Design Is Particularly Important in the Cervical Spine
The cervical spine has less soft-tissue coverage than many thoracolumbar regions.
Implant prominence is therefore an important design consideration.
A low-profile cervical fixation system attempts to minimize unnecessary implant bulk while maintaining the mechanical requirements of the construct.
For anterior plates, this can involve:
For posterior systems, it can involve:
Compact screw tulips
Reduced rod prominence
Small locking caps
Streamlined connectors
Low profile does not simply mean making every component smaller.
The challenge is balancing:
implant profile + mechanical strength + instrument access + locking reliability.
Current posterior cervical platforms such as Mesa Mini and QUARTEX MIS specifically emphasize low-profile fixation as part of their system architecture.
6. Anterior Cervical Plates Need Appropriate Contouring
The anterior surface of the cervical vertebral bodies is not completely flat.
A plate therefore needs geometry that allows it to sit appropriately against the anterior cervical spine.
Important plate characteristics include:
Sagittal contour
Width
Thickness
End geometry
Screw-hole orientation
Available plate lengths
Some systems provide pre-contoured plates to reduce intraoperative plate manipulation.
Other systems may allow limited contour modification.
Why Plate Length Matters
The plate should fit the intended construct without unnecessary extension beyond the treated levels.
For a manufacturer, this means offering sufficient plate-length increments rather than providing only a few widely spaced options.
A complete product line may therefore include plates for:
Single-level fixation
Two-level fixation
Three-level fixation
Multi-level constructs
The exact configuration depends on the intended indications and regulatory clearance of the system.
7. Screw Angulation Should Provide Placement Flexibility
Anterior cervical screws are not necessarily inserted perpendicular to the plate.
Surgeons may require different screw trajectories depending on anatomy and construct requirements.
Anterior cervical systems may therefore offer:
For example, the CODA anterior cervical plate system provides both variable and constrained screw options.
This flexibility allows the implant portfolio to address different fixation strategies without requiring an entirely different plate.
8. The Plate Should Allow Useful Visualization
Implant design can also affect the surgeon's ability to see relevant anatomy during plate positioning.
Large amounts of plate material can obscure:
Vertebral body margins
Endplates
Interbody graft
Interbody cage position
Modern anterior plate systems may therefore incorporate windows, reduced material or other geometry intended to preserve visualization.
Medtronic, for example, highlights visualization of the endplate and graft interface as part of the Atlantis Vision Elite plate design.
From a product-development perspective, this is a good example of how implant geometry influences more than mechanical fixation.
It also affects the surgical workflow.
9. Posterior Cervical Systems Need More Than Screws and Rods
A common mistake is to think of posterior cervical fixation as simply:
screw + rod + locking cap.
Complex posterior cervical procedures often require additional components.
A comprehensive system may include:
Lateral mass screws
Pedicle screws
Hooks
Straight rods
Pre-contoured rods
Transition rods
Cross-connectors
Offset connectors
Rod-to-rod connectors
Occipital plates
Occipital screws
Domino connectors
These components help the surgeon construct fixation across different anatomical regions.
10. Cervico-Thoracic Transition Capability Is Important
One of the more demanding areas in posterior cervical fixation is the transition from the cervical spine into the thoracic spine.
Cervical systems commonly use smaller rods, while thoracolumbar systems may use larger rod diameters.
A reliable system therefore needs a clear strategy for managing the junction between the two systems.
Possible solutions include:
This becomes particularly important in long constructs extending beyond the cervical spine.
Modern posterior fixation portfolios increasingly emphasize junctional compatibility because cervical fixation frequently needs to integrate with broader spinal constructs.
11. Rod Options Should Match the Intended Procedures
The rod is another component that can significantly affect construct assembly.
Important rod variables include:
Common posterior cervical rod diameters include smaller sizes such as 3.5 mm, although exact specifications vary by system.
For example, Stryker's Mesa Mini platform is based around a 3.5 mm rod system, while other cervico-thoracic platforms may accept more than one rod diameter.
Pre-Contoured vs. Straight Rods
Straight rods provide flexibility for surgeon-controlled contouring.
Pre-contoured rods may reduce the amount of intraoperative bending required.
A complete system may offer both options.
12. Rod Contouring Must Be Predictable
Even when pre-contoured rods are available, intraoperative contouring may still be necessary.
The instrument system therefore needs appropriate:
Rod benders
In-situ benders
Rod holders
Rod contouring tools
Rod bending should be controlled so that the surgeon can shape the construct without introducing unnecessary deformation.
Manufacturers should also consider the relationship between:
Rod diameter
Rod material
Bending radius
Bender geometry
Instrument design should match the actual mechanical properties of the rod supplied with the system.
13. Reduction Capability Is a Major Measure of System Usability
In ideal conditions, the rod sits directly inside every screw head.
In reality, this may not always happen.
Differences in screw trajectory, spinal alignment and rod contour can leave a gap between the rod and screw tulip.
The system therefore needs a method to reduce the rod into the screw.
Posterior cervical reduction instruments may include:
Rod pushers
Rocker-style reducers
Threaded reducers
Reduction towers
Extended-tab screws
A good reduction instrument should allow controlled rod seating without making the construct difficult to visualize or manipulate.
Current posterior cervical systems explicitly include streamlined reduction tools and controlled compression/distraction capabilities, reflecting how important these functions are in real construct assembly.
14. Compression and Distraction Should Be Controlled
Posterior cervical fixation may require manipulation after the rod has been positioned.
Depending on the procedure, the surgeon may need:
Compression
Distraction
Alignment adjustment
The instrument system should allow these maneuvers to be performed in a controlled manner.
This requires appropriate interaction between:
Screw heads
Rods
Compressors
Distractors
Locking mechanisms
Compression and distraction instruments should not be treated as optional accessories if these maneuvers are part of the system's intended workflow.
15. Occipito-Cervical Fixation Requires Additional Modularity
Some posterior fixation systems are designed not only for the cervical spine but also for the occipito-cervico-thoracic region.
These constructs require additional implant options.
A system may include:
The challenge is creating a construct that can accommodate anatomical differences between the occiput, cervical spine and upper thoracic spine.
For manufacturers targeting complex cervical reconstruction, modularity becomes one of the most important aspects of the implant platform.
16. Instrument-to-Implant Compatibility Must Be Precise
A high-quality implant can still become difficult to use if its instrumentation is poorly designed.
Every implant interface needs a corresponding instrument.
Important examples include:
| Implant Component | Typical Instrument Requirement |
|---|
| Cervical screw | Screwdriver |
| Plate | Plate holder |
| Plate screw | Screw driver / drill guide |
| Posterior screw | Screw inserter |
| Rod | Rod holder |
| Rod | Rod bender |
| Locking cap | Set screw driver |
| Reduction screw | Rod reducer |
| Connector | Connector driver |
| Occipital plate | Plate holder / drill guide |
The tolerances between implant and instrument interfaces must be tightly controlled.
A screwdriver that does not seat fully into a screw recess, for example, can create problems during insertion and final tightening.
17. Driver Engagement Should Be Secure
Driver-to-screw engagement is one of the most practical usability issues in spinal instrumentation.
A reliable driver should provide:
Secure screw retention
Positive engagement
Minimal wobble
Controlled disengagement
This becomes particularly important during cervical procedures because the surgical field is small.
Some modern anterior cervical systems use dedicated threaded or tapered drivers specifically to maintain control during screw insertion.
18. Final Torque Must Be Controlled
Locking the construct is not simply a matter of tightening until the implant feels secure.
A fixation system should define a controlled final-tightening workflow.
This may involve:
The system should allow the required torque to reach the locking interface without transferring excessive unwanted force to adjacent implants.
In posterior constructs, counter-torque instrumentation can be particularly important when the surgeon is tightening a locking cap onto the rod.
19. Instrumentation Should Be Streamlined
A reliable cervical fixation platform should provide all the required surgical functions without creating unnecessary complexity.
A typical instrument set may need tools for:
Drilling
Tapping
Measuring
Screw insertion
Plate positioning
Rod contouring
Rod insertion
Reduction
Compression
Distraction
Final locking
However, simply adding more instruments does not automatically create a better system.
The objective should be:
the fewest instruments necessary to perform every required step reliably.
Modern cervical platforms often emphasize streamlined instrumentation for precisely this reason.
20. The System Should Support Efficient Instrument Identification
Instrument management is especially important for hospitals and distributors handling complete spinal systems.
Useful features include:
A well-designed tray should follow the surgical workflow.
For example:
Preparation → implant insertion → rod placement → reduction → final locking
This makes it easier for operating-room staff to identify instruments and verify that the set is complete.
21. Material Selection Must Match the Implant Function
Titanium alloys are commonly used for cervical fixation implants, but material selection should be based on the intended implant design and applicable standards rather than marketing alone.
For example, current anterior cervical plate systems may use Ti-6Al-4V ELI titanium alloy for plates and screws.
Important material considerations include:
Different components within a system may have different mechanical requirements.
A plate, screw and rod therefore should not automatically be designed identically simply because they belong to the same fixation system.
22. Manufacturing Accuracy Matters at Every Interface
Cervical fixation systems contain many precision interfaces.
Examples include:
Screw-to-driver interface
Screw-to-plate interface
Screw-head-to-rod interface
Set-screw threads
Rod-to-connector interface
Instrument-to-implant connection
Small dimensional inconsistencies can affect construct assembly.
Quality control should therefore include more than basic dimensional inspection.
Functional testing should verify that matched components operate correctly together.
For example:
Does the screw engage the driver consistently?
Does the screw move through the plate hole correctly?
Does the locking mechanism fully deploy?
Does the rod seat within the screw head?
Does the set screw thread smoothly?
Does the torque instrument connect properly?
A cervical fixation system is ultimately a collection of interfaces.
Its reliability depends on those interfaces working consistently.
23. Imaging Compatibility Should Be Considered
Cervical fixation is frequently performed with intraoperative imaging.
Implants and instruments should therefore be designed with radiographic workflow in mind.
Important considerations may include:
For systems intended to integrate with navigation or robotic workflows, additional requirements may apply.
Some newer cervico-thoracic fixation platforms specifically support navigation or robotic guidance for screw trajectory planning and placement.
Navigation is not necessary for every cervical procedure, but compatibility can be an important differentiating factor for systems targeting advanced spine centers.
24. A Reliable Cervical System Needs Clear Procedural Scope
Not every cervical fixation system should attempt to treat every pathology or every surgical approach.
The manufacturer should clearly define whether the system is intended primarily for:
Anterior cervical fixation
Posterior cervical fixation
Cervico-thoracic fixation
Occipito-cervical fixation
Minimally invasive posterior fixation
Complex reconstruction
This matters because each application requires a different implant and instrumentation portfolio.
An anterior cervical plate system and a posterior cervical screw-rod system may both be called cervical fixation systems, but their mechanical and procedural requirements are fundamentally different.
