Aug. 18, 2026
Calling a spinal implant system “minimally invasive” involves much more than making a smaller incision.
A conventional pedicle screw or interbody cage may sometimes be implanted through a limited exposure, but that does not automatically make the spinal fusion implant system MIS-ready.
A true minimally invasive spinal fusion system has to work as an integrated platform. The implants, access instruments, screw insertion tools, rod delivery devices, reduction instruments and interbody instrumentation must all function within a restricted surgical corridor.
Modern commercial MIS platforms illustrate this system-level approach. For example, minimally invasive pedicle screw systems are specifically designed around percutaneous fixation, while dedicated access systems use ports or tubular access devices to maintain visualization through smaller working corridors. Integrated MIS-TLIF platforms may combine access, visualization, discectomy, interbody implantation and posterior fixation instead of treating each step as an isolated component.
So what actually makes a spinal fusion implant system ready for minimally invasive surgery?
The answer comes down to several design and instrumentation requirements.

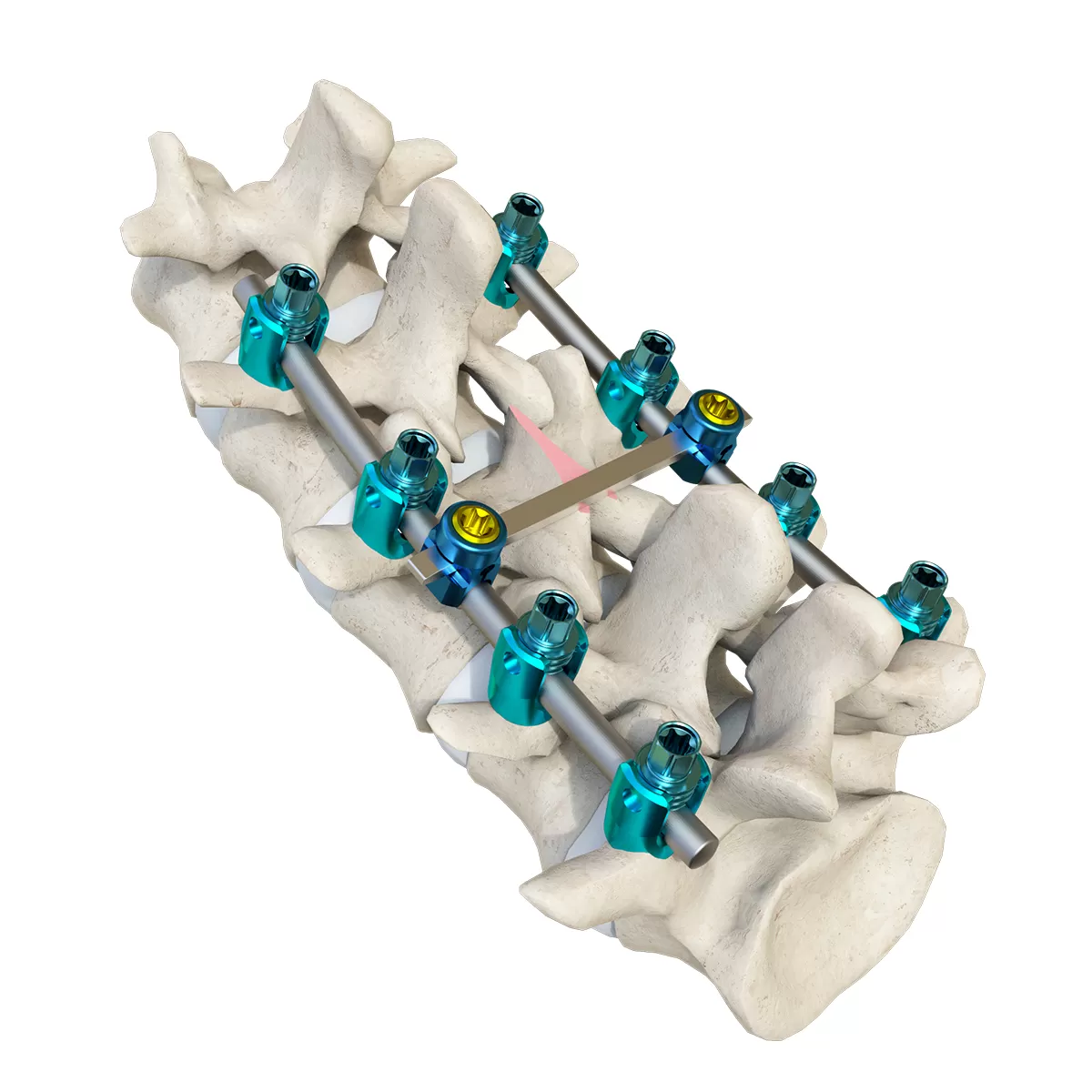

Posterior fixation is one of the most important differences between conventional open fusion instrumentation and an MIS-ready system.
During an open posterior procedure, the surgeon can directly visualize the pedicles, screw heads and rod construct through a relatively large exposure.
In minimally invasive surgery, the surgeon may need to insert pedicle screws through separate small incisions or working channels.
This changes how the entire screw system must be designed.
MIS pedicle screws are frequently designed with a cannulated structure so they can be advanced over a guidewire.
A typical workflow may involve:
Pedicle localization
Guidewire placement
Pedicle preparation
Screw insertion over the guidewire
Removal of the guidewire
Rod placement
Reduction and locking
The exact workflow depends on the surgical system.
Some newer platforms simplify or modify this sequence. For example, certain percutaneous screw technologies have been developed to reduce the number of separate steps traditionally required for guidewire-based pedicle screw insertion.
The key point is that an MIS-ready pedicle screw system must provide a way to safely and predictably control the screw from outside the narrow surgical corridor.
A standard polyaxial screw head alone is difficult to manipulate when most of the screw is located beneath the soft tissue.
MIS systems therefore commonly use structures such as:
Screw extenders
Percutaneous towers
Reduction sleeves
Extended tabs
Screw extension tubes
These components extend the working interface from the implanted pedicle screw to a position above the skin.
They allow the surgeon to manipulate the screw head, deliver the rod, perform reduction and insert the locking cap without requiring full exposure of the posterior spinal anatomy.
This is one of the clearest indicators that a pedicle screw system was designed specifically for MIS rather than simply adapted from an open system.
The connection between the pedicle screw and the external extension tower becomes extremely important during minimally invasive fixation.
During rod reduction, compression or distraction, considerable mechanical force may be transmitted through this interface.
If the connection is unstable, several problems can occur:
Difficulty aligning the rod with the screw
Loss of control during reduction
Tower movement during manipulation
Difficulty inserting the locking cap
Increased complexity during multi-level constructs
MIS-ready systems therefore require a secure connection between the screw head and the temporary extension mechanism.
Commercial minimally invasive stabilization systems commonly emphasize integrated reduction capabilities and strong screw-to-sleeve connections because these features become especially important when operating through restricted exposure.
For implant developers, tower retention strength should therefore be considered early in the pedicle screw design process rather than treated as a secondary instrument requirement.
Rod placement is another major challenge in minimally invasive posterior fixation.
In open surgery, the rod can simply be positioned across exposed screw heads.
In MIS fixation, the screws may be separated by intact skin and soft tissue.
The system therefore needs a method to pass the spinal rod from one screw to another beneath the soft tissue.
A dedicated percutaneous rod inserter allows the rod to be introduced through one incision and guided into multiple screw heads.
Depending on the system, the inserter may use:
Fixed rod attachment
Pivoting mechanisms
Articulating handles
Controlled rotation
Arc-shaped rod passage
The rod and rod holder effectively become part of the same delivery mechanism.
The implant itself must also be compatible with the planned insertion technique.
Rod characteristics that can influence MIS handling include:
Diameter
Length
Pre-contoured geometry
Material
Stiffness
Connection with the rod inserter
For multi-level fixation, the challenge increases because the rod must accurately pass through several screw heads without direct visualization of the full construct.
Therefore, “MIS-ready” is partly an instrumentation question and partly an implant geometry question.
Getting the rod near the screw is not necessarily the same as seating it completely inside the screw tulip.
When spinal alignment, spondylolisthesis or rod contour creates a gap between the screw and rod, reduction may be required.
Open systems can use conventional rod pushers and reduction instruments directly around the screw head.
That is more difficult through a percutaneous corridor.
An MIS system therefore needs dedicated percutaneous rod reduction mechanisms.
These may include:
Reduction towers
Threaded reduction instruments
Extended-tab screws
Rod reducers
Reduction sleeves
Integrated screw-extension mechanisms
Commercial MIS fixation platforms specifically incorporate rod reduction into their screw and tower architecture rather than relying exclusively on conventional open instruments.
For a manufacturer developing an MIS pedicle screw system, one important engineering question is:
How much rod-to-screw distance can the reduction mechanism accommodate?
This affects whether the system can handle only straightforward degenerative cases or more demanding constructs requiring significant correction.
A system intended for multi-level MIS fixation may therefore need more robust reduction capability than one designed primarily for single-level fusion.
Final locking seems simple in an open system because the locking cap can be placed directly into the screw head.
MIS makes this step more demanding.
The cap may need to travel through a long extension tower before engaging the screw.
This means an MIS-ready system should consider:
Cap retention during insertion
Driver-to-cap engagement
Screw head alignment
Cross-threading resistance
Extension tower clearance
Final torque application
If the locking mechanism is difficult to engage through the tower, the entire minimally invasive workflow becomes cumbersome.
Some contemporary stabilization systems specifically promote locking mechanisms designed to simplify cap placement and reduce cross-threading challenges.
An MIS set screw driver may therefore include a retaining feature that keeps the locking cap attached during passage through the extension sleeve.
The driver then needs to allow controlled preliminary tightening before final torque is applied.
For product developers, the locking mechanism should be evaluated as part of the MIS workflow rather than only as a feature of the pedicle screw itself.
Posterior fixation is only one part of spinal fusion.
For procedures such as MIS-TLIF, the interbody implant and its associated instruments must also work through a constrained surgical corridor.
A conventional cage that requires a large insertion path or extensive manipulation may be difficult to use through tubular access.
An MIS-compatible interbody cage therefore needs to consider:
Implant width
Implant height
Insertion profile
Nose geometry
Inserter connection
Cage rotation
Final positioning
Graft capacity
Commercial TLIF cage systems commonly incorporate insertion-oriented features such as tapered or bullet-shaped leading ends and implant geometries intended to facilitate controlled insertion.
MIS procedures often require the surgeon to control an implant several centimeters below the skin surface.
The implant inserter therefore becomes particularly important.
A useful MIS interbody inserter should provide control over:
Initial cage insertion
Advancement
Orientation
Rotation where applicable
Final positioning
Instrument disengagement
Depending on the cage design, the inserter may have a fixed or articulating interface.
The connection should remain secure while the cage is advanced through the working corridor.
At the same time, the surgeon must be able to disengage the instrument once final positioning has been achieved.
For implant manufacturers, cage geometry and inserter design should therefore be developed together.
Trying to design an MIS inserter only after the cage geometry has already been finalized can create unnecessary constraints.
A spinal fusion system cannot realistically be considered MIS-ready if only the cage and pedicle screws are designed for minimally invasive insertion.
The surgeon must first prepare the disc space.
This requires instruments such as:
Disc rongeurs
Curettes
Rasps
Shavers
Scrapers
Distractors
Trial implants
In an MIS-TLIF procedure, these instruments need to operate through a relatively limited access channel.
The handles, shafts and working ends must therefore be designed accordingly.
Compared with some conventional open instruments, MIS preparation instruments frequently require:
Longer shafts
Reduced-profile working ends
Appropriate handle-to-shaft alignment
Clear depth markings
Controlled articulation where required
The goal is not merely to make instruments narrower.
They must still provide sufficient mechanical control for disc removal and endplate preparation while operating at depth.
Bone graft placement can become more challenging through a limited surgical corridor.
A complete minimally invasive fusion system should therefore consider how graft material will reach the prepared disc space or interbody cage.
Useful instrumentation may include:
Bone graft funnels
Bone graft tubes
Bone graft plungers
Cannulated graft delivery devices
A funnel and plunger allow graft material to be loaded proximally and progressively advanced through a delivery channel toward the surgical site.
Commercial bone graft delivery devices are specifically available for percutaneous or minimally invasive graft placement, demonstrating that graft delivery itself is an important part of an MIS workflow.
This is an important point for spinal implant manufacturers.
A system can have excellent screws and cages but still feel incomplete if there is no practical way to prepare and deliver graft material through the same access strategy.
One of the biggest mistakes when discussing MIS spinal implants is focusing exclusively on the implant.
The implant cannot be separated from surgical access.
A minimally invasive fusion procedure typically requires some method of reaching the operative anatomy while limiting the size of the exposure.
Depending on the surgical technique, this may involve:
Tubular retractors
Expandable retractors
Access ports
Dilators
Guide tubes
Patient-mounted access systems
For example, dedicated minimally invasive access systems use surgical ports and visualization components specifically designed to maintain access through a limited operative corridor.
A complete MIS spinal fusion platform should therefore answer a simple question:
How does the surgeon get every required instrument and implant to the target anatomy?
If that question cannot be answered clearly, the system is probably not truly MIS-ready.
Reducing exposure also changes how the surgeon visualizes anatomical structures and instruments.
An MIS platform may therefore need compatibility with:
Fluoroscopy
Surgical navigation
3D imaging
Surgical cameras
Endoscopic visualization
Robotic guidance
Not every MIS procedure requires all of these technologies.
However, the implants and instruments should not create unnecessary barriers to the imaging or navigation workflow that the system is intended to support.
Modern navigation platforms can support instrument localization and implant placement during open, minimally invasive and percutaneous spinal procedures.
Similarly, integrated MIS-TLIF platforms have been developed around access and digital visualization rather than treating visualization as an unrelated operating-room component.
For an implant manufacturer, “navigation compatible” involves more than adding the term to marketing materials.
If the system is intended to work with navigated workflows, instruments may require:
Navigation-compatible arrays
Rigid tracker attachment
Defined instrument geometry
Calibration compatibility
Sufficient mechanical stability
Registration of critical instrument dimensions
Pedicle preparation instruments, screw drivers and interbody inserters may all need to integrate with the selected navigation platform.
This is especially relevant for systems targeted at hospitals already using image-guided or robotic spine surgery.
However, navigation should be considered an additional workflow capability, not an absolute definition of MIS.
A system can support minimally invasive surgery without being robot-assisted.
A single-level percutaneous construct is relatively straightforward compared with a long multi-level construct.
As the number of levels increases, the system must handle:
Screw alignment
Rod passage across multiple towers
Rod contour
Reduction at several levels
Compression and distraction
Final locking sequence
Some commercially available minimally invasive pedicle screw systems specifically emphasize multi-level capability because the instrumentation challenges become significantly greater as construct length increases.
For manufacturers, this means the intended procedural scope should be defined before instrumentation development.
A system designed for one- or two-level degenerative fusion does not necessarily require the same instrumentation complexity as a platform intended for multi-level reconstruction.
Minimally invasive does not eliminate the need for construct manipulation.
Depending on the surgical technique, the surgeon may still need to perform:
Compression
Distraction
Reduction
Alignment adjustment
Rod manipulation
The difference is that these maneuvers must be performed through the percutaneous screw towers or other extended interfaces.
An MIS-ready posterior fixation system therefore requires instrumentation capable of transmitting these forces without requiring full exposure of the construct.
This may involve dedicated tower-mounted compressors and distractors.
Restricted visualization and longer working distances place greater demands on instrument ergonomics.
Small usability problems that are merely inconvenient during open surgery can become significant obstacles in MIS.
Important design questions include:
Can the instrument be connected without direct visualization?
Can the surgeon identify orientation by touch?
Can the instrument operate through a narrow corridor?
Is the handle too large for adjacent instruments?
Can the device be disengaged without excessive manipulation?
Are depth markings visible?
Can the instrument be operated with one hand?
Can several screw towers remain in place simultaneously?
These considerations often determine whether a technically functional MIS system actually feels intuitive in the operating room.
Every additional instrument exchange through a restricted surgical corridor adds another step to the procedure.
For this reason, efficient MIS instrumentation often attempts to combine functions or simplify workflows.
Examples can include:
Combined targeting and screw insertion tools
Integrated reduction towers
Dual-purpose inserters
Quick-connect handles
Modular preparation instruments
Streamlined locking mechanisms
This does not mean that fewer instruments are automatically better.
An overly multifunctional instrument may become difficult to clean, maintain or operate.
The better objective is workflow efficiency: every instrument should have a clear purpose and avoid unnecessary procedural steps.
MIS-ready implants should also minimize unnecessary bulk around the surgical corridor.
For posterior fixation systems, this may involve:
Low-profile screw heads
Streamlined tulips
Reduced tower footprint
Compact locking mechanisms
For interbody cages, relevant factors may include:
Narrow insertion profile
Controlled leading edge
Appropriate implant width
Inserter-compatible geometry
Medtronic, for example, describes its Voyager platform as a minimally invasive pedicle screw system with low-profile multi-axial screw options, illustrating how implant geometry and MIS instrumentation are developed as part of the same platform.
The term minimally invasive spinal fusion covers several different procedures.
These may include:
MIS-TLIF
Percutaneous posterior fixation
Mini-open TLIF
OLIF with percutaneous posterior fixation
LLIF with posterior fixation
Other minimally invasive interbody approaches
Each procedure creates different instrumentation requirements.
For example, an OLIF procedure may use a lateral or oblique interbody access strategy combined with a separate percutaneous posterior fixation system.
A MIS-TLIF platform, by contrast, may need to integrate posterior access, discectomy, endplate preparation, graft delivery, cage insertion and pedicle screw fixation through the same general posterior operative strategy.
Commercial procedure platforms demonstrate this modular approach, combining dedicated interbody and access technologies with minimally invasive posterior fixation rather than expecting a single instrument set to serve every surgical approach.
Talk to ATOM orthopedic experts
We offer a full range of quality spine, trauma, joint, and sports medicine products — fast delivery, consistent quality.
Navigation
Navigation
Contact Us
Tel.: +86 157 5731 9513
E-mail: info@atommd.com
Add.: Room 502, 5th Floor, Deyuan Jiuhe Building, No. 10 Hongyan Road, Chaoyang District, Beijing
