Material：******
Qty： ******
Application:Degenerative Disc Disease
Trauma
Tumors
Deformity (defined as kyphosis, lordosis, or scoliosis)
Pseudarthrosis
Failed Previous Fusions
Product Introduction
Product Introduction

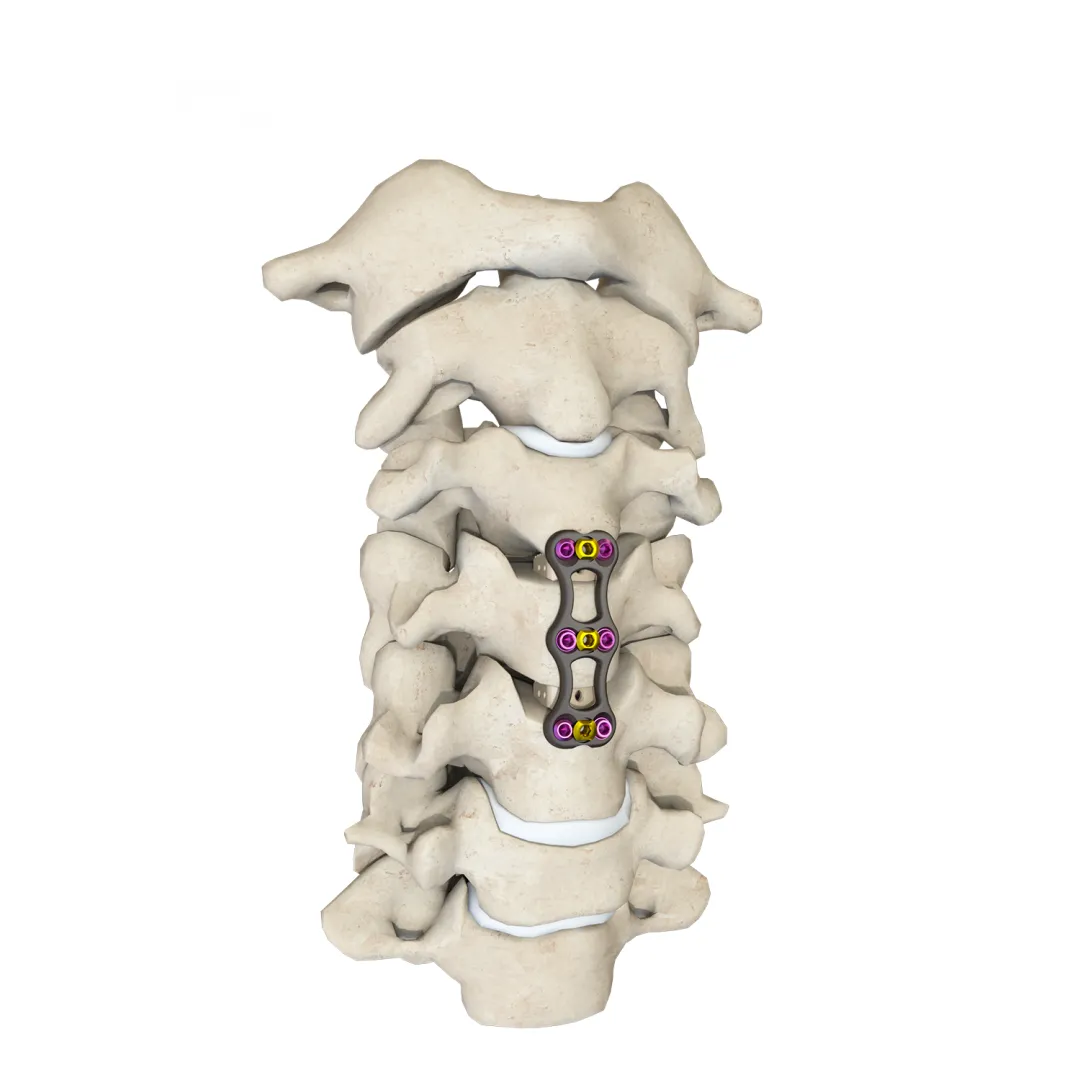

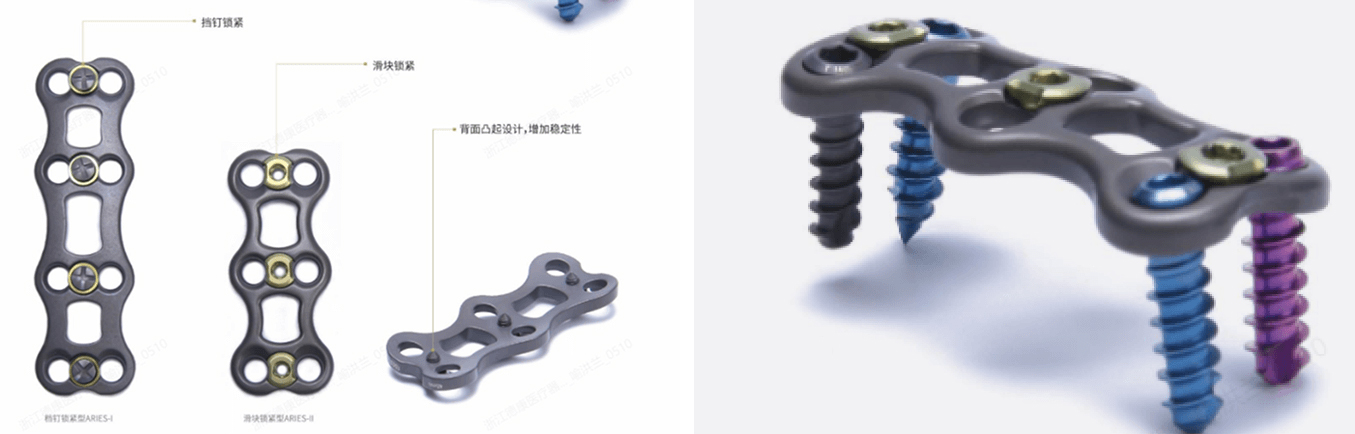

Anterior cervical plate fixation system
The system features a pre-set locking mechanism and is designed with fixedangle screws and variable-angle screws, allowing flexible application for different surgical options.(such as ACDF,ACCF,ACAF)
An anterior cervical plate (Acp) used to stabilise and support the spine after spinal fusion. The cervical spine refers to the vertebrae in the neck area, and fusion is the connecting of two or more vertebrae together to increase stabiity and reieve symptoms caused by disorders such as degenerative disc disease, herniated discs, or spinal fractures.
Product Introduction 02
Anterior Cervical plate is commonly screwed to the front lanterior of the cervical spine, it is intended to keep the cervical vertebrae aligned and offer immediate support while the bones fuse together. The plate acts as an internal brace, preventing excessive movement and faciitating fusion.
Anterior Cervical plate systems are typicaly made of titanium or titanium alloy materials, This is because titanium is a biocompatible metal that is strong, lightweight, and has good corrosion resistance. These properties make it an ideal material for medical implants that require long-term
Product Introduction 02
Anterior Cervical plate is commonly screwed to the front lanterior of the cervical spine, it is intended to keep the cervical vertebrae aligned and offer immediate support while the bones fuse together. The plate acts as an internal brace, preventing excessive movement and faciitating fusion.
Anterior Cervical plate systems are typicaly made of titanium or titanium alloy materials, This is because titanium is a biocompatible metal that is strong, lightweight, and has good corrosion resistance. These properties make it an ideal material for medical implants that require long-term implantation in the body.
Features
lmproved Fusion Success
Conform to the anatomical characteristics of the human body and reduces the incidence of postoperative dysphagia and hematoma
Simple and Efficient Operation
0ne step locking of 2 nails, simple operation. shortened operation time.Maximized visibility window for easier observation of the graft and the vertebral endplates
Various specifications:
Various optional screws and titanium plates with complete specifications provide a variety of fixation methods for clinical use to fulfill clinical needs
High Safety and Reliability
Locking structure reduces the stress concentration of the nail plate system and increases the safety of internal fixation
Enhanced Stability:

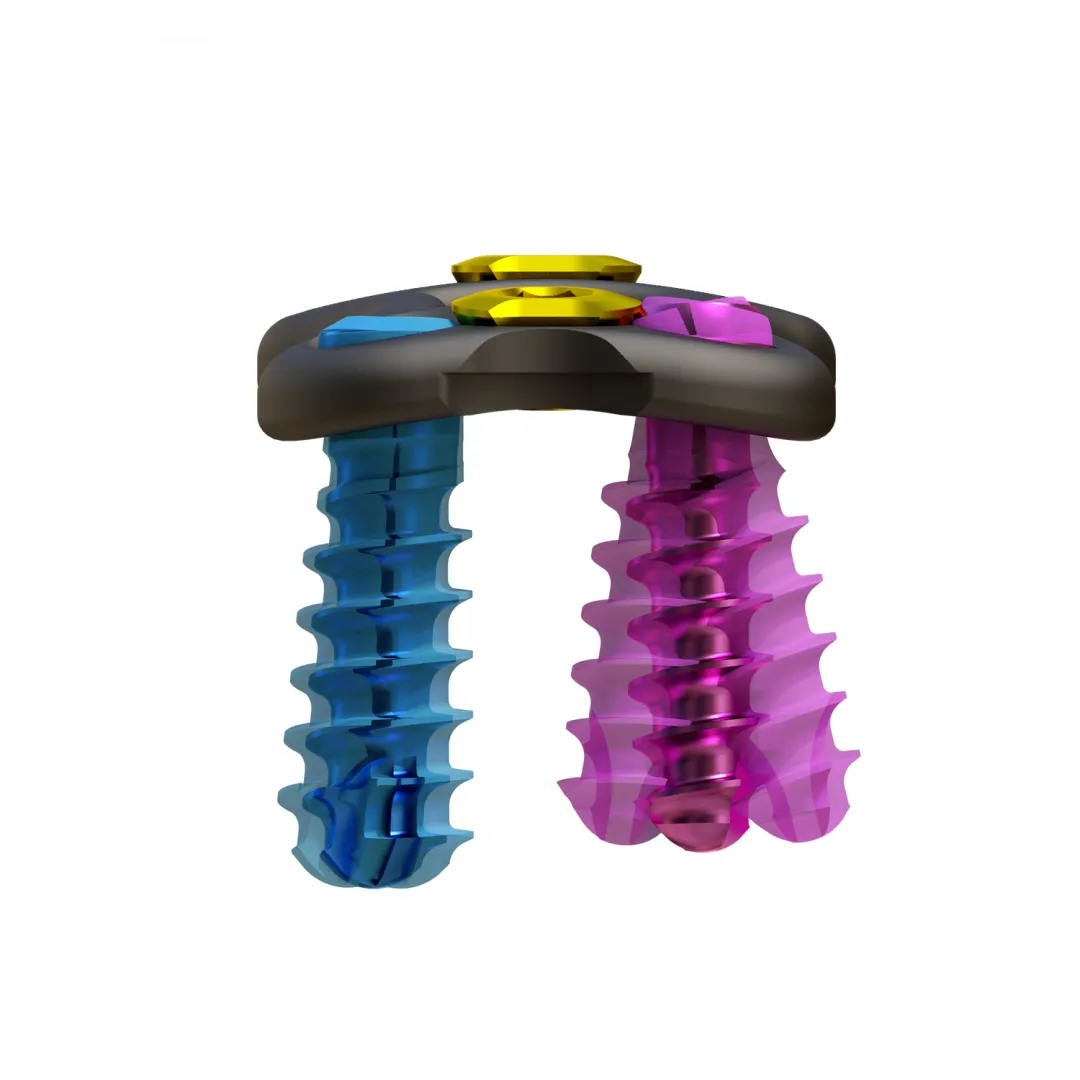

Variable and fixed angle screws allow the surgeon to build a semirigid, constrained or hybrid fixation construct.Anti-slippage teeth resist plate movement.
Advantage
Scoliosis
Rods straighten and prevent further curving.
Kyphosis
Implants reduce excessive upper back rounding.
Degenerative Disc Disease
Artificial discs restore mobility vs. fusion
Fractures
Hold broken vertebrae in place to heal and protect nerves.
Application
Indications
Degenerative Disc Disease
Trauma
Tumors
Deformity(defined as kyphosis, lordosis, or scoliosis)
Pseudarthrosis
Failed Previous Fusions
Application
The anterior cervical plate fixation is integral to anterior cervical discectomy and fusion (ACDF) for cervical disc herniation or spondylosis. Under general anesthesia, the patient is placed in the supine position with neck extension. A 3-5cm transverse incision along the natural skin crease provides access to the cervical spine. Through meticulous platysma dissection and blunt retraction of the sternocleidomastoid-carotid sheath interval, the prevertebral space is exposed. After radiographic confirmation of the target leve! (typically C3-c7), the pathologic disc is excised with pituitary rongeurs,followed by osteophyte resection using high-speed burrs for complete neural decompression.
Providing immediate stabilization (reducing segmental motion by >90%)
Maintaining graft compression force (200-500N) to enhance fusion
Preventing graft extrusion(occurrence <1.5% with modern plates)
The wound is closed in layers with absorbable sutures. Postoperatively, patients wear a rigid cervical colar for 4 weeks, with fusion rates exceeding 95% at 6 months when combined with low-profile plates. Physical therapy initiates at week 6 to restore cervical range of motion.
Surgical Procedure
Pedicle Preparation
Under lateral fluoroscopy, identify pedicle sagital trajectories. Define entry points using anatomical landmarks (thoracic: 3mm
inferior to facet joint; lumbar: mammilary process). Create pilot holes with an awl or burr, then verify bony integrity using a ball.
tip probe (>4mm medial canal clearance). Tap sclerotic or osteoporotic bone with 0.5-1mm undertapping for enhanced purchase
Multi Axial ScrewInsertion
Insert polvaxial screws under AP/lateral fluoroscopic guidance. Position screws 50-80% into the vertebral body parallel to the superior endplate. For S1 fixation in osteopenia, achieve bicortical purchase by targeting the promontory (S1 endplate-anterior cortex junction). Disengage the instrument sleeve post-insertion.
Specifications
Insert specifications
| Titanium plate for 1 segments Intervertebral fusion |  | |
| Product No. | Lengths(mm) | |
| 101010200019 | 19 | |
| 101010200021 | 21 | |
| 101010200023 | 23 | |
| 101010200025 | 25 | |
| 101010200028 | 27.5 | |
| 110200030 | 30 | |
| 101010200033 | 32.5 | |
| Titanium plate for 1 segments Intervertebral fusion |  | |
| Product No. | Lengths(mm) | |
| 101020200028 | 27.5 | |
| 101020200030 | 30 | |
| 101020200033 | 32.5 | |
| 101020200035 | 35 | |
| 101020200038 | 37.5 | |
| 101020200040 | 40 | |
| 101020200043 | 42.5 | |
| 101020200045 | 45 | |
| 101020200048 | 47.5 | |
| 101020200050 | 50 | |
| 101020200053 | 52.5 | |
| 101020200055 | 55 | |
Adapter
| Distractor | Drill Bit (Fixed) |
| Expansive Screwdriver | Drill Bit (Adjustable) |
| Guide Pin Inserter | BoneTap3.5mm |
| Hex Screwdriver | Screw Holder &Inserter |
| Open Awl | Quick Coupling Handle (D-type) |
| Bending Pliers | Bone Tap 4.0mm |
| Plate Holding Forceps | Instrument Case |
| Bone Guide Pin | Product Box |
| Mono-hole Drill Guide (Universal) | Expansive Screwl |
| Mono-hole Drill Guide (Fixed) |
Delivery
Distractor 01
Distractor 02
Distractor 03
FAQ
Q Are you a factory or a trading company?
We are a manufacturer with factories in different regions across China.
Q What payment methods do you accept?
We accept bank transfer, Western Union, PayPal, and L/C.
Q What is the delivery time?
Usually 4-7 days for products in stock; 15-30 days if out of stock, depending on quantity.
You may also be interested
Orthopedic & Surgical Instruments | Spine, Trauma, Sports Medicine Solutions

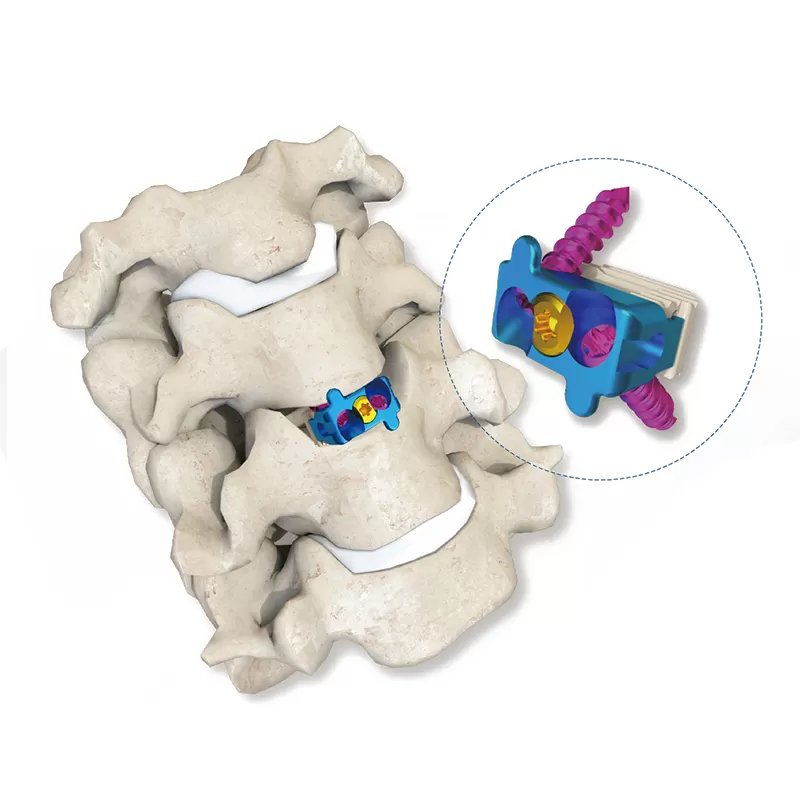

Self-stabilizing Cervical Fusion Cage
