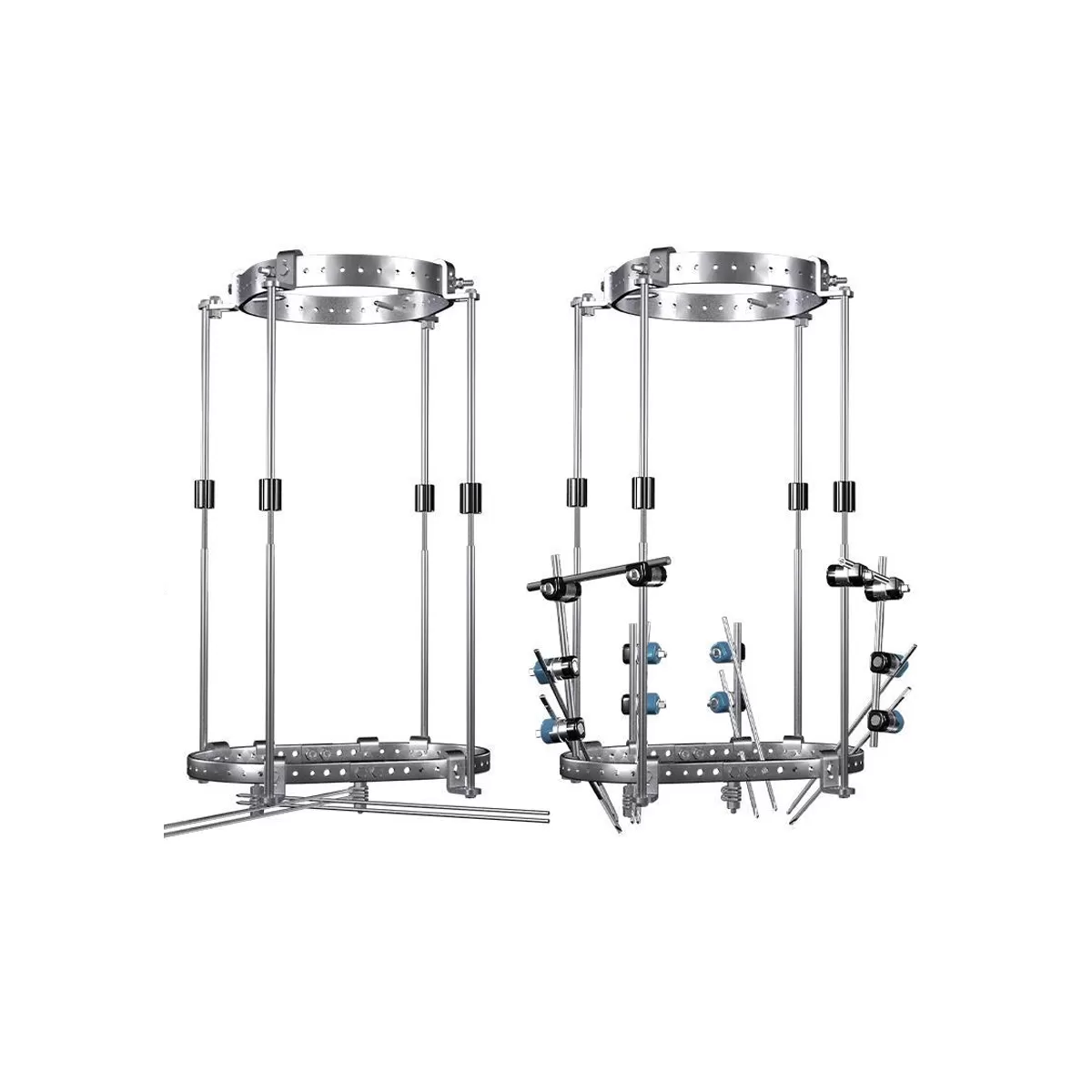

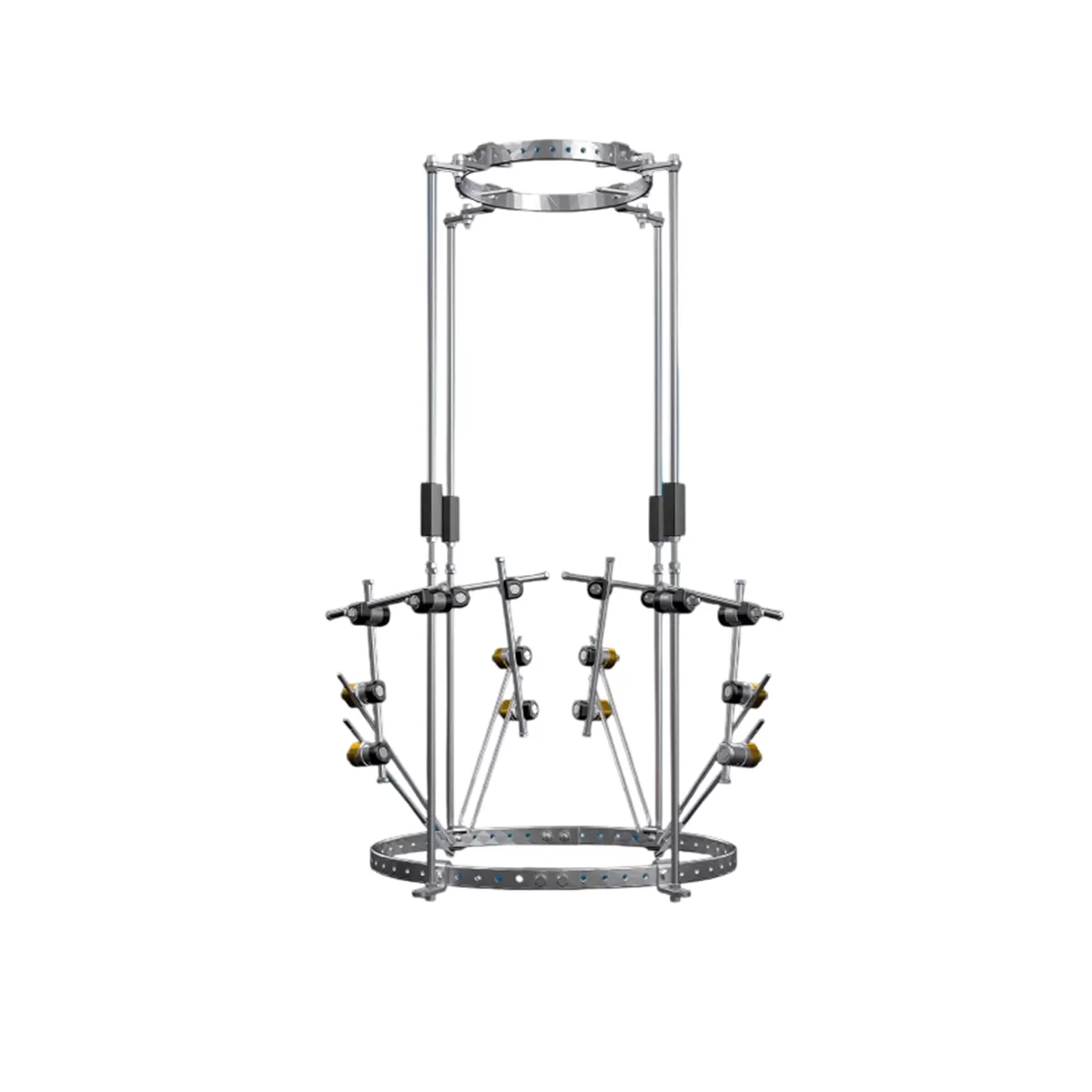

Head Pelvic Orthopedic Traction Device

1.  Features a 3D fixation structure that provides complete cervical spine immobilization, effectively preventing cervical flexion-extension, lateral bending, and rotational movements.

2.  Offers three-dimensional adjustment of traction direction, achieving optimal traction and reduction outcomes.

3.  Allows early mobilization, reducing nursing care workload and intensity.

4.  Enables cervical spine surgery under stable conditions, enhancing surgical safety and simplicity.

5.  Lighter than head ring plaster, easy to assemble and disassemble, with excellent breathability.

1. Simple assembly, enhanced patient comfort, easy nursing care, no additional equipment required.

2. Reliable traction force with shorter duration, providing progressive and safe deformity correction.

3. Adjustable connecting block for convenient adjustments, compact size, equipped with an anti-retraction device foreffective locking.

4. Suitable for severe scoliosis patients with curves exceeding 100 degrees.

5. Preoperative correction can achieve up to 50% effectiveness (correcting a 100-degree curve to 50 degrees), ensuringsafety and reliability.

1.Insert the adjustment screw rod into the support rod-nut to a maximum depth of 20mm; thread the remaining length into thesupport rod-knob for subsequent distraction adjustments.

2. install a hexagonal nut at the nut end of the support rod (150/200/250/300/350/400/450mm) and another at the knob end ofthe support rod-knob (8x200mm) to achieve counter-locking for maintained support effectiveness
