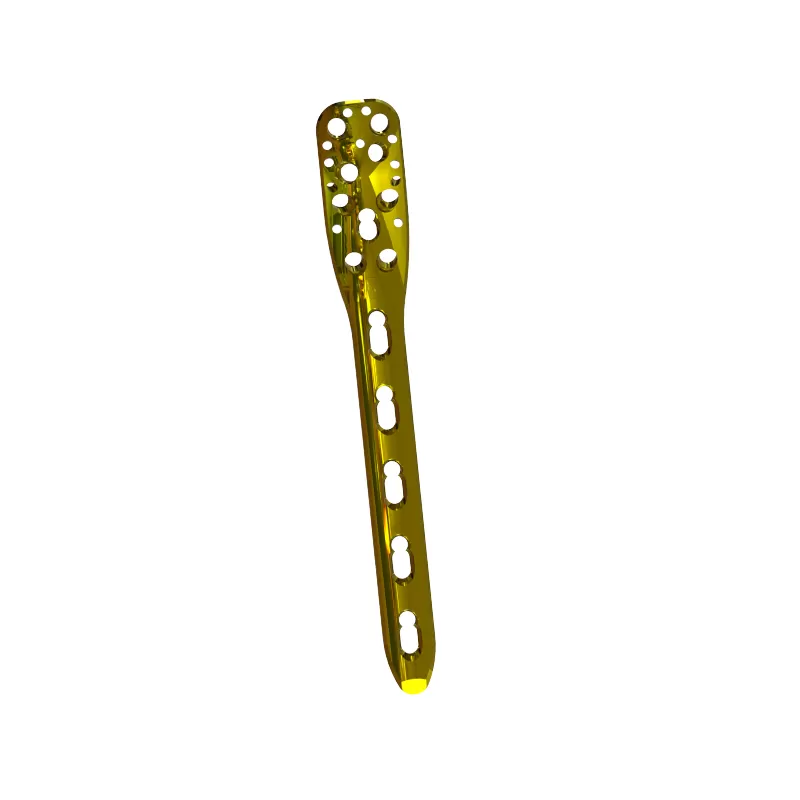

The Proximal Humerus Locking Plate is anatomically contoured for proximal humerus fractures.
It features multiple 3.5 mm locking holes designed at specific angles to maximize fixation in the humeral head and shaft.
The plate utilizes a fixed-angle construct through 20° conical locking screw holes, ensuring angular stability and optimal bone anchorage, particularly in osteoporotic bone.
Manufactured from TA3G pure titanium or TC4 titanium alloy, it offers excellent biocompatibility, corrosion resistance, and mechanical performance.
● 20° conical locking holes compatible with specially designed locking and cannulated screws.
● Anatomically contoured low-profile plate with rounded edges and highly polished surface to minimize soft tissue irritation.
● Color anodized surface for corrosion protection and easy identification.
● Sharp self-tapping tip design for easy screw insertion.
● Ball-head cortical screws allow eccentric insertion for axial compression.
● Available in multiple lengths and configurations for different patient anatomies.
● Fixed-angle stability helps maintain reduction in complex and osteoporotic fractures
● Angular screw orientation ensures optimal support in the humeral head
● Does not require compressing the plate to the bone, preserving periosteal blood supply
● Low-profile design reduces risk of subacromial impingement
● Deep thread design for cancellous bone screws enhances purchase strength
● Compatible with both locking and non-locking cortical screws for hybrid fixation techniques
