Proximal humeral fractures are among the most common fractures, accounting for 4%–5% of all fractures.
Mechanism of injury: Usually occurs when the elbow strikes the ground or the arm is braced during a fall, especially in elderly patients, or when the shoulder joint directly sustains external force.

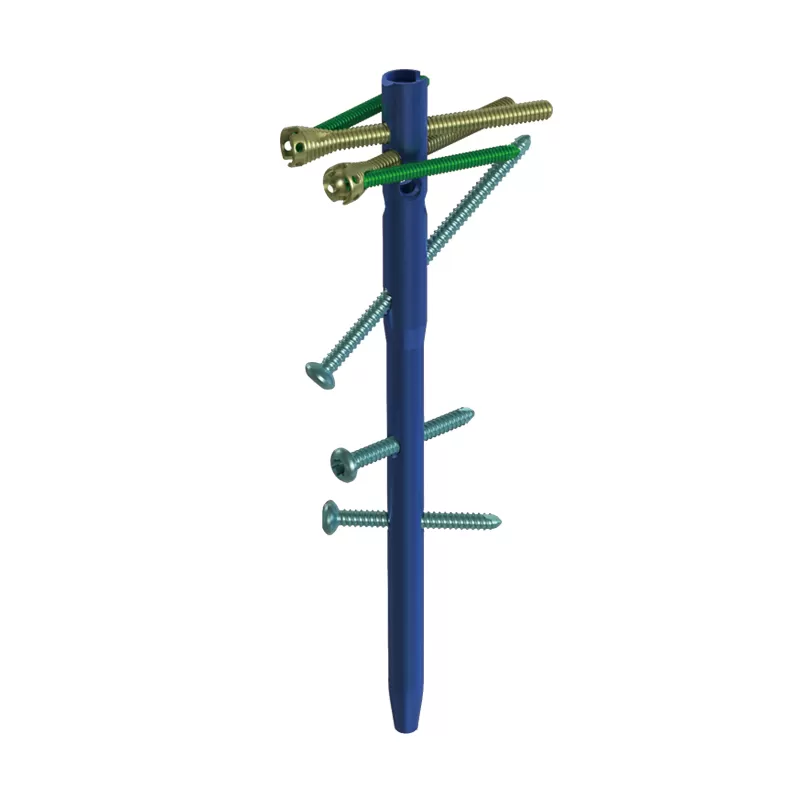

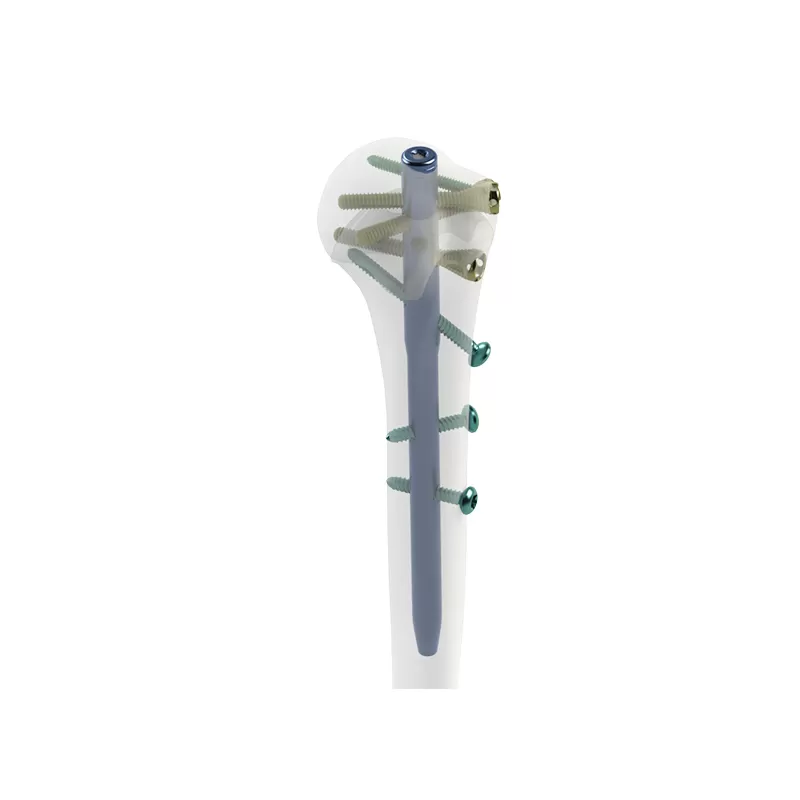

● Unique and innovative “nail-in-nail” technology to enhance the fixation effect of proximal locking screws.
● Proximal screws are countersunk screws, with at least three lateral screws implanted to ensure basic structural stability.
● Oblique upward supporting lock provides more stable medial support for the humeral head.
● Multi-planar distal locking to avoid neurovascular structures while providing stable fixation.
● Central implantation of the main nail with an ultra-low notch design to protect the supraspinatus muscle and surrounding tissues.

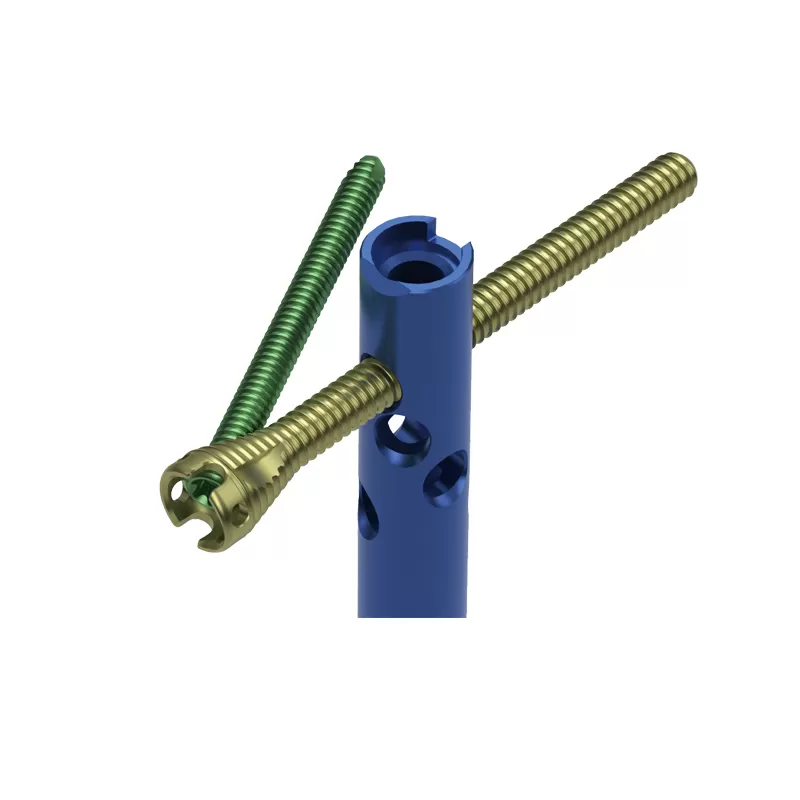

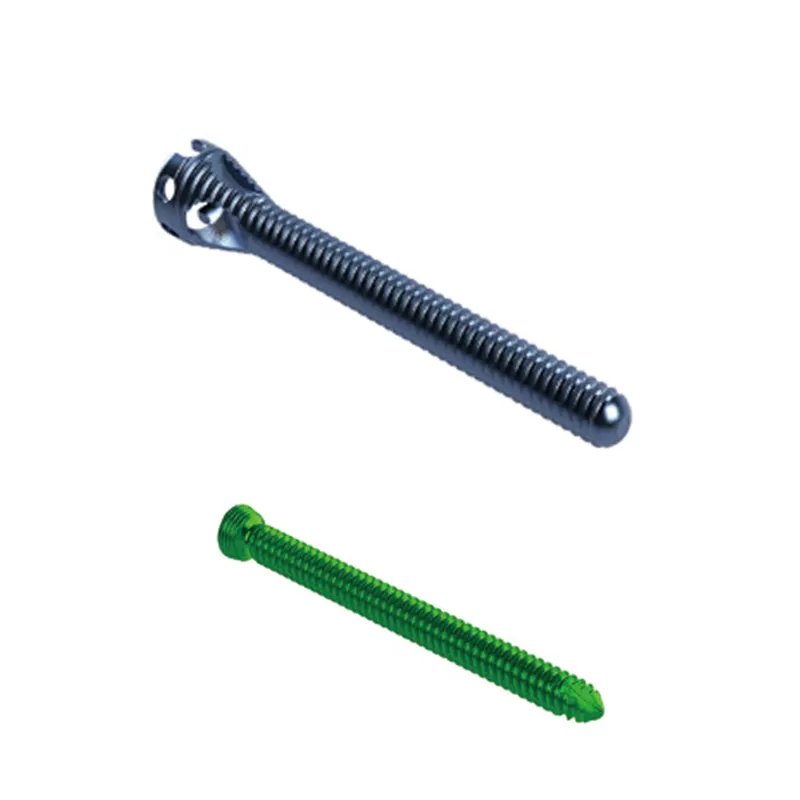

Ø3.5 mm interlocking screws
Additional interlocking screws (“screw-in-screw” technique) can be inserted through the head of the lateral screws to enhance internal fixation stability.
These screws are particularly effective for patients with poor bone quality, such as those with osteoporosis.
Ø4.5 mm interlocking screws
Three screws inserted laterally into the greater tuberosity must be used in all fracture cases to ensure the basic structural stability.
Additional screws inserted anteriorly into the lesser tuberosity can further enhance construct stability.
Ø4.0 mm ascending screw
The ascending screw supports the medial calcar region of the humerus, helping to stabilize fractures with medial comminution.

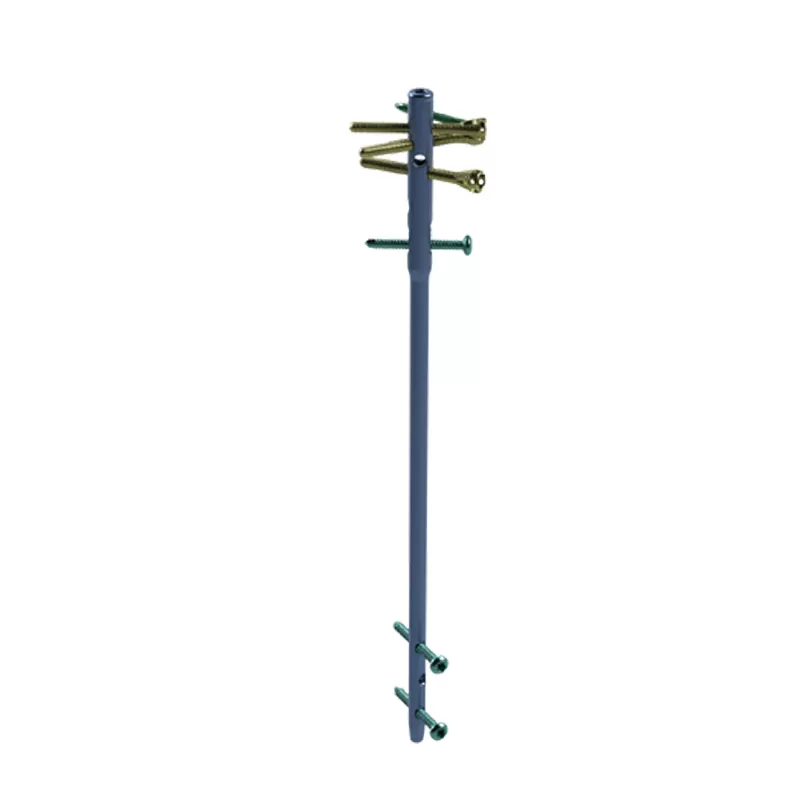

Ø4.0 mm interlocking screws
Two distal interlocking screws are positioned in different planes to reduce implant toggling within the humeral medullary canal.
