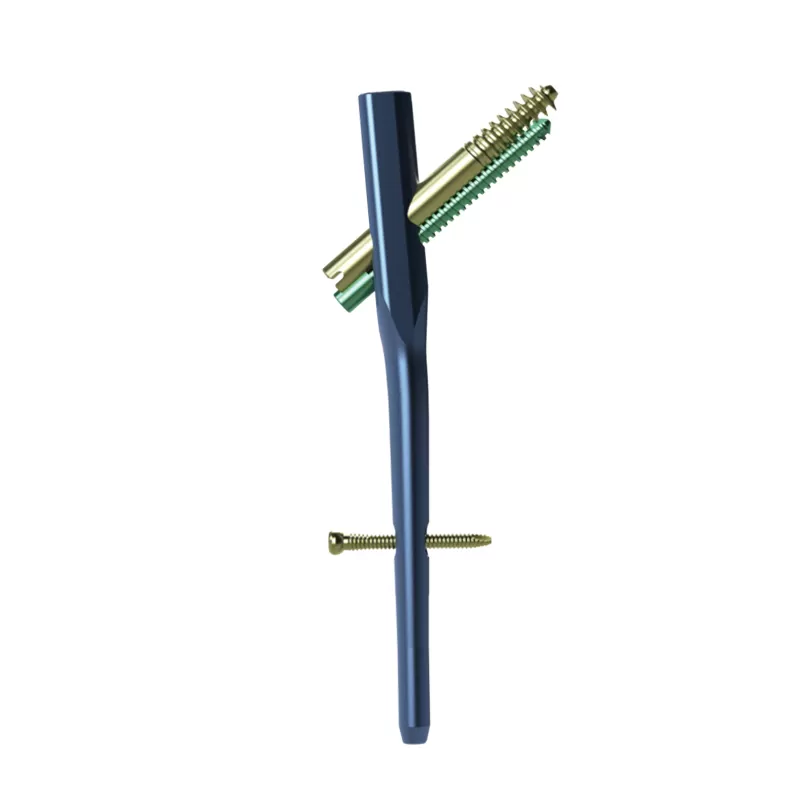

Proximal Femoral Nail Type II – Double Lag Screw

Model Number: 108010

Material: Titanium Alloy TC4

Application:The stub nail is used for internal fixation of femoral intertrochanteric fracture and high subtrochanteric fracture. The long nail is used for internal fixation of low subtrochanteric fracture, femoral trochanteric fracture, femoral trochanter combined ipsilateral femoral shaft fracture, and pathological femoral fracture.

Product Introduction

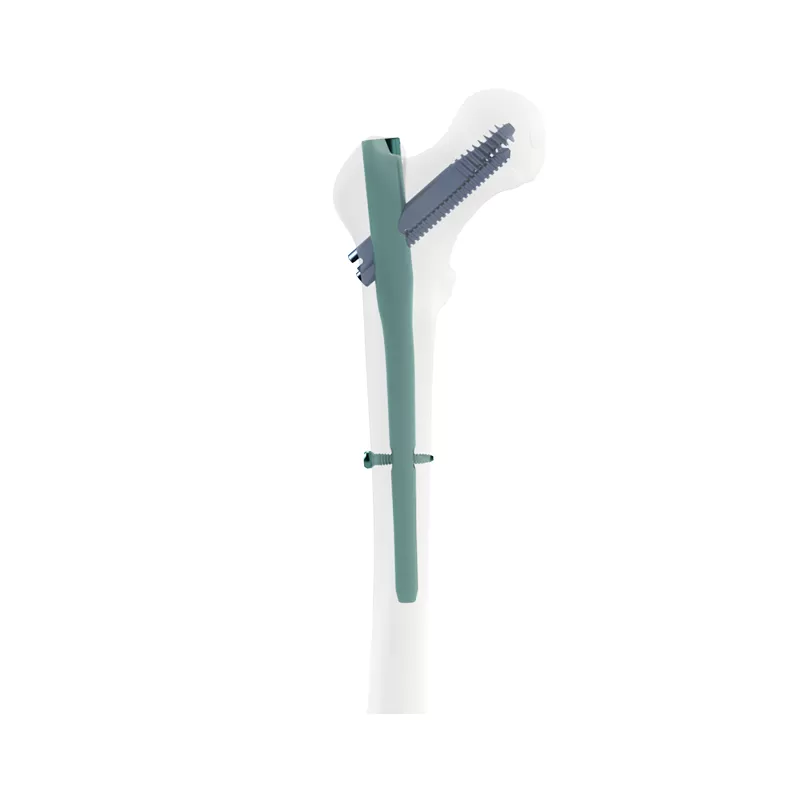

PFNA (Proximal Femoral Nail Antirotation) Intramedullary Nail is an orthopedic implant system designed primarily for the surgical management of proximal femoral fractures, including intertrochanteric, subtrochanteric, and basilar neck fractures, particularly in osteoporotic patients.


Features

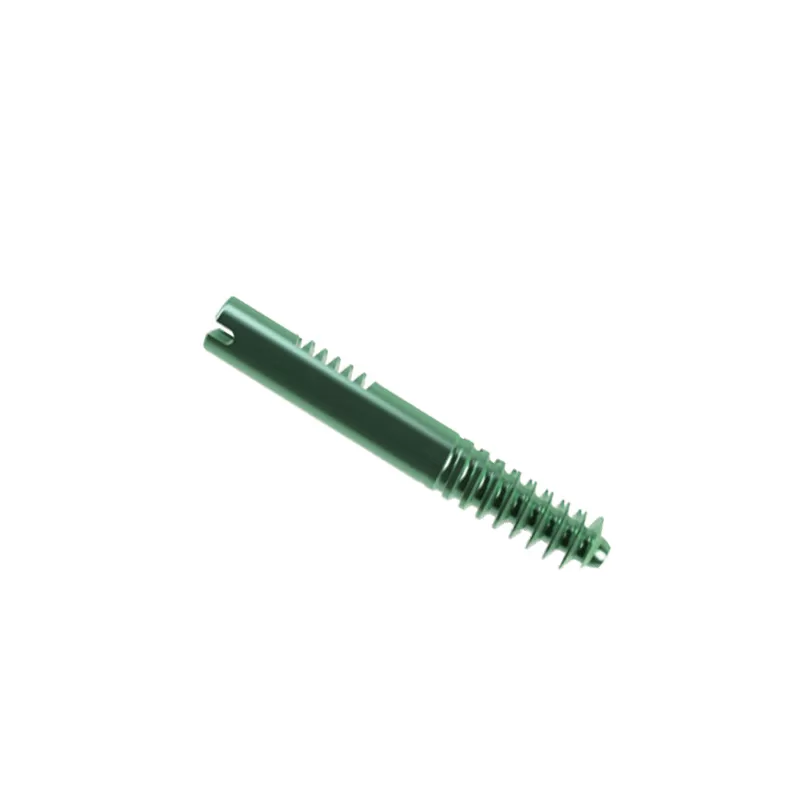

● Penetrates into the femoral head to assist in providing anti-rotation support for the lag screw, reducing the risk of lag screw head cut-out.

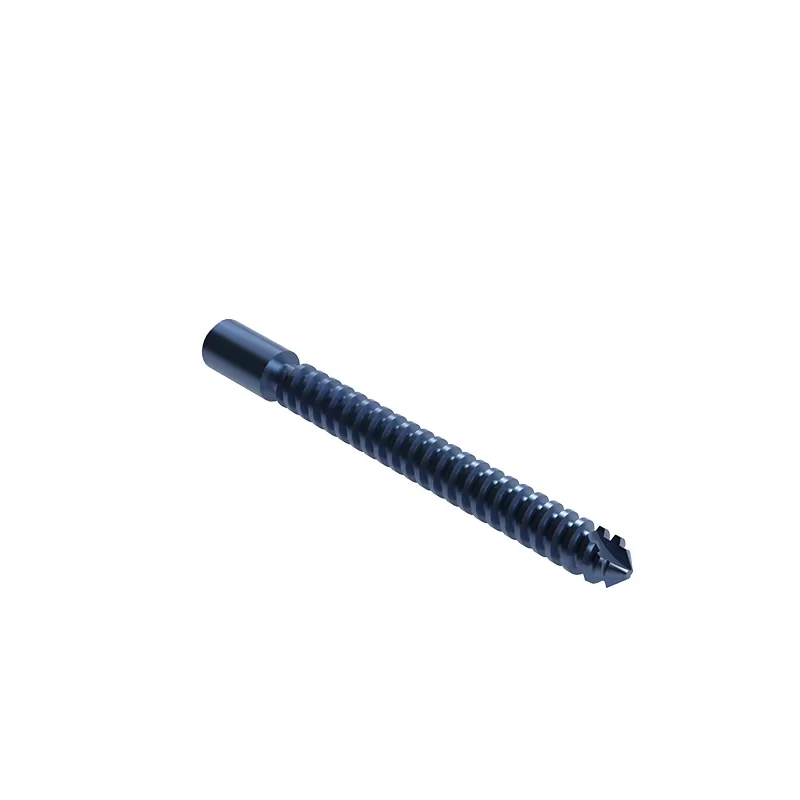

● Classic trapezoidal deep-thread design ensures smooth insertion, provides compression to the cancellous bone of the femoral head, and is compatible with patients of various bone qualities.
● Stepped thread design accommodates patients with a narrow femoral neck.
● 5° lateral offset and 1500 mm anterior bow for an optimal match with the physiological anatomy of the Chinese population.
● Optional dynamic or static locking to meet different clinical requirements.
● Distal design disperses stress, reducing pain and the risk of periprosthetic fractures.



Advantages

1. The intramedullary nail can control the axial force line of the fracture site; the locking intramedullary nail is more effective in preventing fracture rotation and reduces the risk of intramedullary nail fracture.

2. The closed nailing technique is adopted, with less soft tissue stripping, the fracture site can be left unexposed, and the infection rate of the operation is reduced.

3. The closed nailing retains the fracture hematoma and reduces the damage to the periosteum blood supply. At the same time, the debris generated during the expansion of the medullary can be deposited at the fracture site, which has an autologous bone grafting effect.

4. The intramedullary nail generally does not need to be removed. Even if it needs to be removed, only a small incision is made at the corresponding part of the locking nail and one end of the intramedullary nail.

5. There is a stress dispersion effect between the intramedullary nail and the damaged bone to avoid stress shielding.

Application

● Femoral shaft fracture

● Femoral neck fracture or combined femoral shaft fracture

● Intertrochanteric fracture or combined femoral shaft fracture internal fixation

Specifications

Model NumberCategorySpec.(mm)
4080102Short Nail10×180
10×200
11.5×180
11.5×200
13×180
13×200
Long Nail10×300 Left
10×320 Left
10×340 Left
10×360 Left
10×380 Left
10×400 Left
10×420 Left
11.5×260 Left
11.5×300 Left
11.5×320 Left
11.5×340 Left
11.5×360 Left
11.5×380 Left
11.5×400 Left
11.5×420 Left
13×300 Left
13×320 Left
13×340 Left
13×360 Left
13×380 Left
13×400 Left
13×420 Left
10×300 Right
10×320 Right
10×340 Right
10×360 Right
10×380 Right
10×400 Right
10×420 Right
11.5×260 Right
11.5×300 Right
11.5×320 Right
11.5×340 Right
11.5×360 Right
11.5×380 Right
11.5×400 Right
11.5×420 Right
13×300 Right
13×320 Right
13×340 Right
13×360 Right
13×380 Right
13×400 Right
13×420 Right


FAQ

Q Are you a factory or a trading company?

We are a manufacturer with factories in different regions across China.

Q What payment methods do you accept?

We accept bank transfer, Western Union, PayPal, and L/C.

Q What is the delivery time?

Usually 4-7 days for products in stock; 15-30 days if out of stock, depending on quantity.

Q What shipping methods do you offer?

We support air, sea, and land shipping based on the order and destination.

Q Do you provide free samples?

Yes, samples are available; shipping costs are paid by the customer.

Q Can I order products not listed in your catalog?

Yes, please send us pictures or samples. Delivery time may be longer.
