Tibial Intramedullary Nail

Model Number: 4080108

Material: Titanium Alloy TC4

Application:It is used for internal fixation of the tibial shaft fracture, tibial metaphysis fracture, tibial head fracture and intra-articular fracture of tibial Pilon.

Inquire Now Add to Basket

Product Introduction Application Specifications FAQ

Product Introduction

✓

Medical Background

Advantages of the Suprapatellar Approach

● Needle insertion in knee extension reduces deforming stress caused by quadriceps traction.

● Easier to maintain reduction of proximal fractures.

● No need for extensive manipulation of the injured limb.

● Easier to identify the entry point.

● Protects the proximal tibial cortex.

● Reduces the incidence of postoperative knee pain.

✓

Features

● Proximal Design (14 mm) with Innovative Locking Mechanism, 5 Holes in 4 Directions

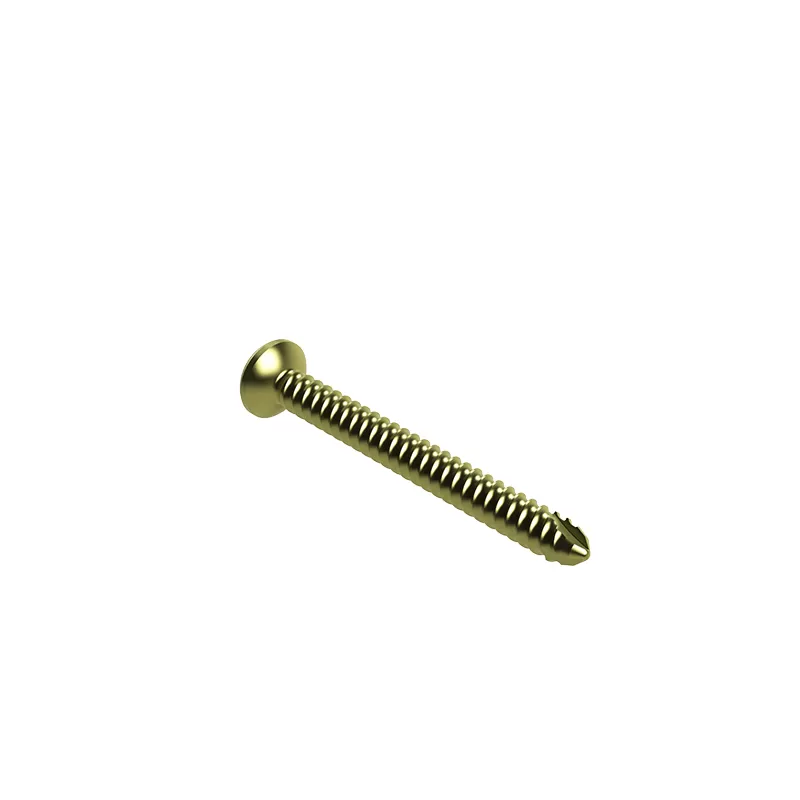

● Dual-core threading on proximal locking screws increases screw strength.

● Continuous long-curved contour reduces pressure on the medullary canal during implantation and matches the anatomical structure of the Chinese population.

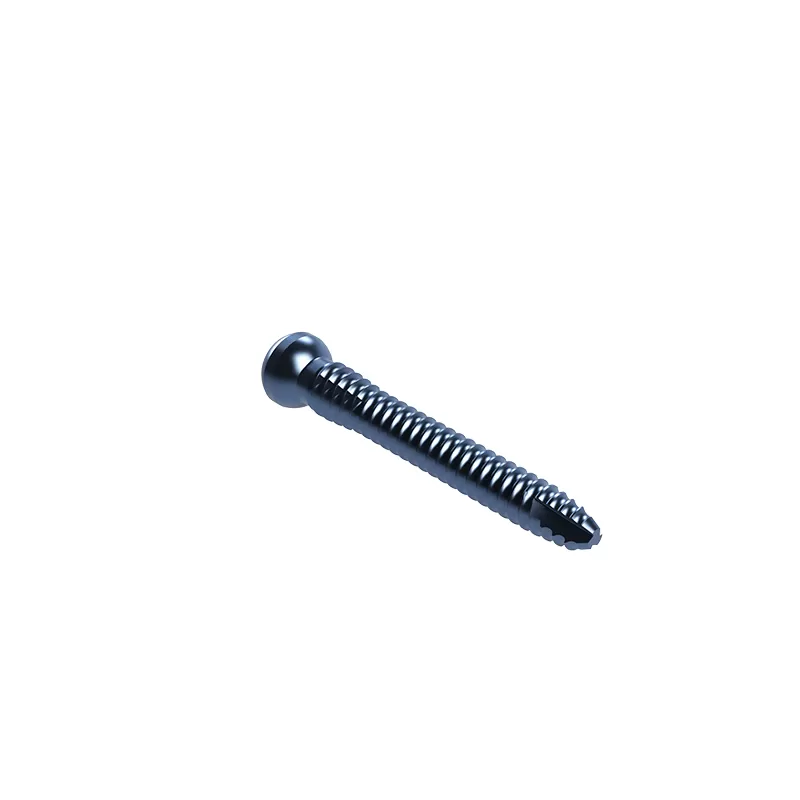

● Dual-line threading on locking screws increases contact area and holding strength.

●Ultra-distal design (5 mm), 4 Holes in 3 Directions, ensures basic structural stability.

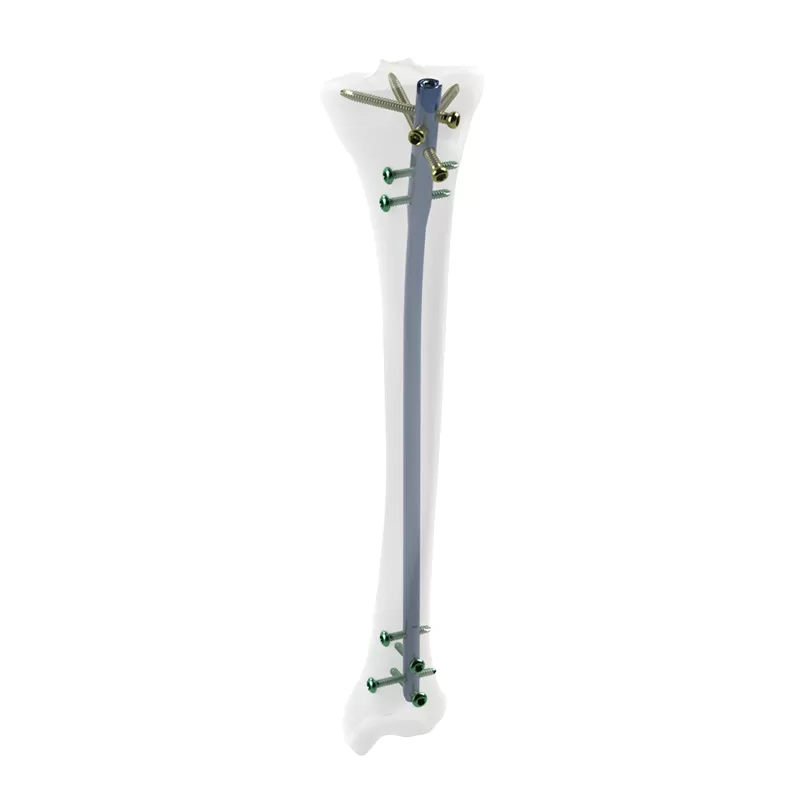

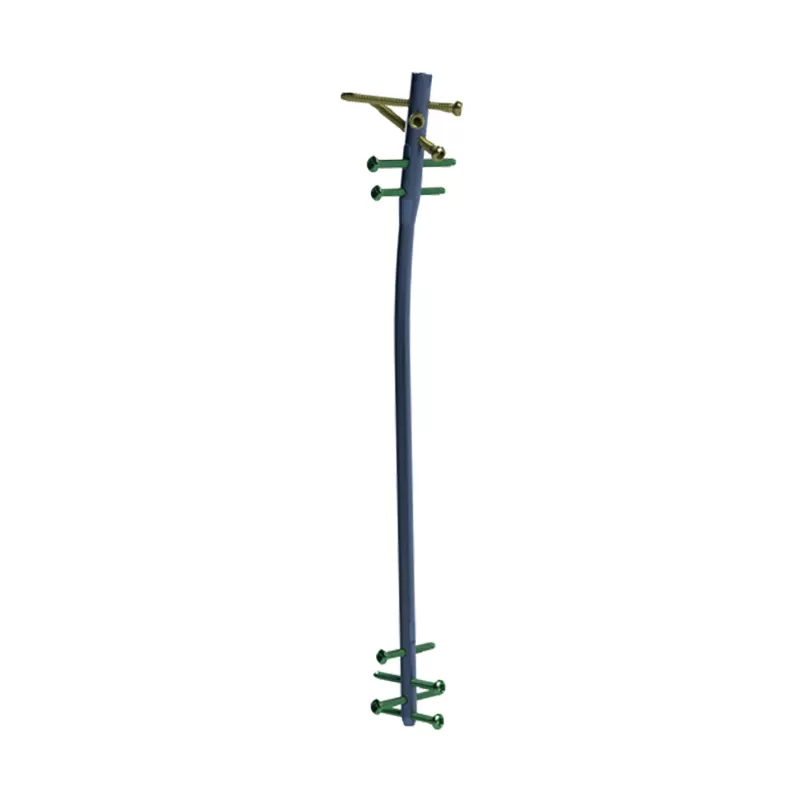

Proximal Locking:

Multi-plane proximal locking screw design:

● 5 screw holes

● Screws oriented in 4 directions

● 3 cancellous bone screw holes

● 2 standard interlocking holes

Distal Locking:

Multiple distal interlocking options:

● Up to 4 screw holes

● Screws oriented in 4 directions

● 2 transverse and 1 longitudinal interlocking holes

● 1 ultra-distal oblique interlocking hole (dual orientation)

● Ultra-distal hole is only 5 mm from the distal tip of the main nail

● The penultimate locking screw is 13 mm from the main nail tip

Application

Indications:

● Stable proximal, distal, and diaphyseal tibial fractures

● Open and closed tibial shaft fractures

● Malunions and nonunions of the tibia

Precautions:

● For proximal tibial fractures, use at least 3 proximal locking screws and 2 distal locking screws

● For tibial shaft fractures, use at least 2 proximal and 2 distal locking screws

● For distal tibial fractures, use at least 2 proximal locking screws and 3 distal locking screws

Specifications

Model Number	Category	Spec.(mm)
4080108	Tibial Reconstruction Nail	8.5×260
		8.5×280
		8.5×300
		8.5×320
		8.5×340
		8.5×360
		8.5×380
		10×260
		10×280
		10×300
		10×320
		10×340
		10×360
		10×380
		11.5×260
		11.5×280
		11.5×300
		11.5×320
		11.5×340
		11.5×360
		11.5×380
