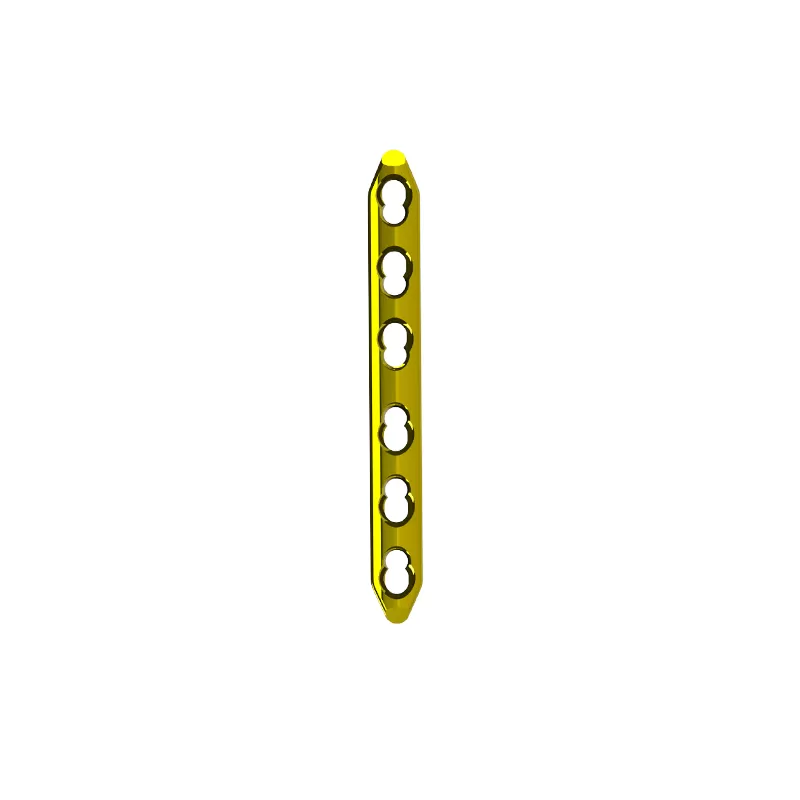

Locking Phalangeal Plate (Type II)

Model Number: 4032014

Material: Material: TA3G Pure titanium, TC4 titanium alloy

Application: For the treatment of phalangeal fractures

Inquire Now Add to Basket

Product Introduction Indications Specifications FAQ

Product Introduction

The Finger Locking Plate (Type II) is a low-profile osteosynthesis plate engineered for stable angular fixation in small-bone fractures.

It comprises anatomically contoured plate bodies made of TA3G pure titanium or TC4 titanium alloy, featuring rounded edges and highly polished, low-notch surfaces to minimize soft-tissue irritation.

The plate’s 20° conical locking holes mate precisely with locking screws (Type I solid or Type II cannulated), creating a rigid plate–screw–bone construct without compressing the plate against the bone. Cortical screws with hemispherical heads engage compression holes to apply axial preload, further enhancing stability.

Features

Conical Locking Hole & Screw Interface: 20° tapered threads in plate holes and matching screw heads ensure robust angular stability.
Self-Tapping Sharp Blades: Screws incorporate a sharp cutting edge for effortless insertion and reduced torque.
Anodized Surface Finish: Colored anodic oxidation enhances corrosion resistance and implant visibility.
Hemispherical Cortical Screw Heads: Designed for eccentric insertion into compression holes, generating controlled axial compression across the fracture.
Anatomical Plate Contours: Each plate profile is tailored to the target bone (phalanges, metacarpals, clavicle, or pelvis), with rounded borders and a polished, low-notch surface to minimize soft-tissue irritation.

Advantage

Secure Angular Fixation: The 20° conical locking system locks the screw head, plate, and bone into a unified, rigid construct.
Enhanced Initial Grip: Serrated plate edges and sharp self-tapping screw threads improve early mechanical stability.
Minimal Soft-Tissue Impact: Low-profile, smooth plate design reduces irritation and risk of tendon or skin adherence.
Simplified Workflow: Locking mechanism obviates the need for plate compression against bone, preserving periosteal blood supply.
Versatile Application: Available in multiple sizes and configurations to suit various extremity, clavicle, and pelvic fractures.

Indications

The Finger Locking Plate (Type II) is indicated for internal fixation of fractures in:

● Digital (phalangeal) bones

● Metacarpals

● Clavicle

● Pelvic ring (small-bone applications)

It is suitable for transverse, oblique, spiral, and comminuted fracture patterns requiring angular stability and minimal soft-tissue disruption.

Specifications

Model Number	Spec.(mm)	Compatible screws
4032014	4 Holes×31	2.0mm Locking Screw
	5 Holes×38
	6 Holes×45
	7 Holes×52
	8 Holes×59
	10 Holes×73

FAQ

Q Are you a factory or a trading company?

We are a manufacturer with factories in different regions across China.

Q What is the delivery time?

Usually 4-7 days for products in stock; 15-30 days if out of stock, depending on quantity.

Q Do you provide free samples?

Yes, samples are available; shipping costs are paid by the customer.

Q Can I order products not listed in your catalog?

Yes, please send us pictures or samples.

Q What payment methods do you accept?

We accept bank transfer, Western Union, PayPal, and L/C.
