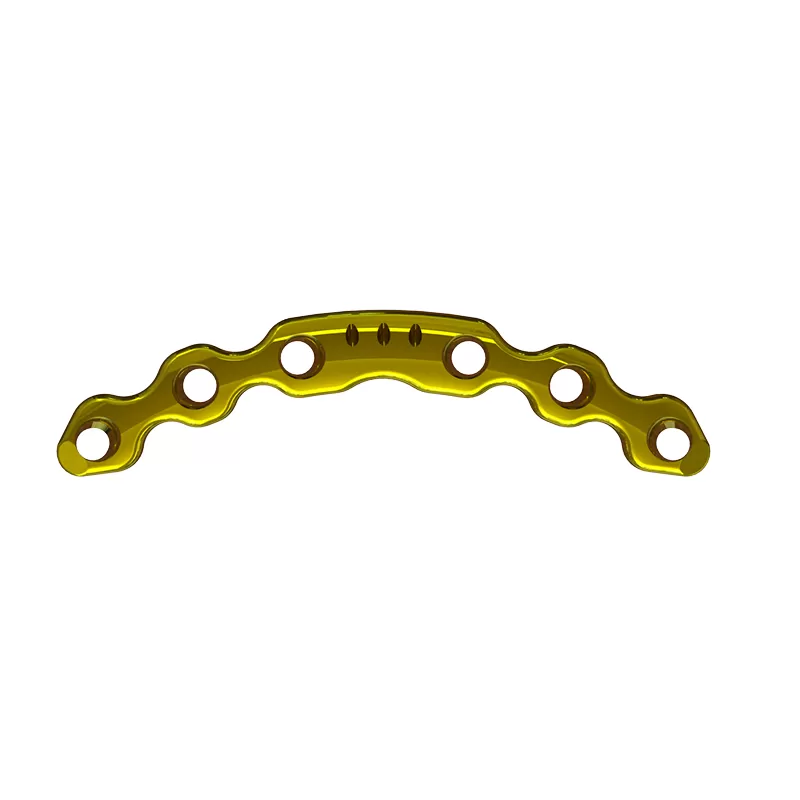

The Pubic Symphysis Locking Plate is specifically designed for fixation of pubic symphysis disruptions. It features angular stability through threaded locking holes, which form a rigid construct when used with matching locking screws.
The plate body is anatomically contoured, with low-profile, polished, rounded edges to minimize soft tissue irritation. The system is manufactured using high-strength TA3G pure titanium or TC4 titanium alloy.
● 20° Conical Locking Holes for enhanced angular stability with locking screws
● Sharp Self-Tapping Screw Tip Design for efficient insertion
● Anodized Color Surface Treatment for easy screw and plate identification
● Anatomically Precontoured Plate Body with polished, rounded low-notch edges to reduce soft tissue irritation
● High Compatibility with locking and cortical screws in varied sizes
● Symmetric and asymmetric designs available for different anatomical needs
● Strong Angular Stability: 20° conical locking holes tightly match with screw threads to form a secure screw-plate-bone interface
● Soft Tissue Friendly: Smooth, rounded, and polished surfaces minimize tissue adhesion and irritation
● Minimally Invasive Fixation: No need to compress the plate onto the bone, preserving periosteal blood supply
● Versatile Application: Suitable for both primary and revision surgeries
● Enhanced Screw Retention: Asymmetrical thread designs adapted to screw size and bone density provide excellent grip and resistance to pull-out.
