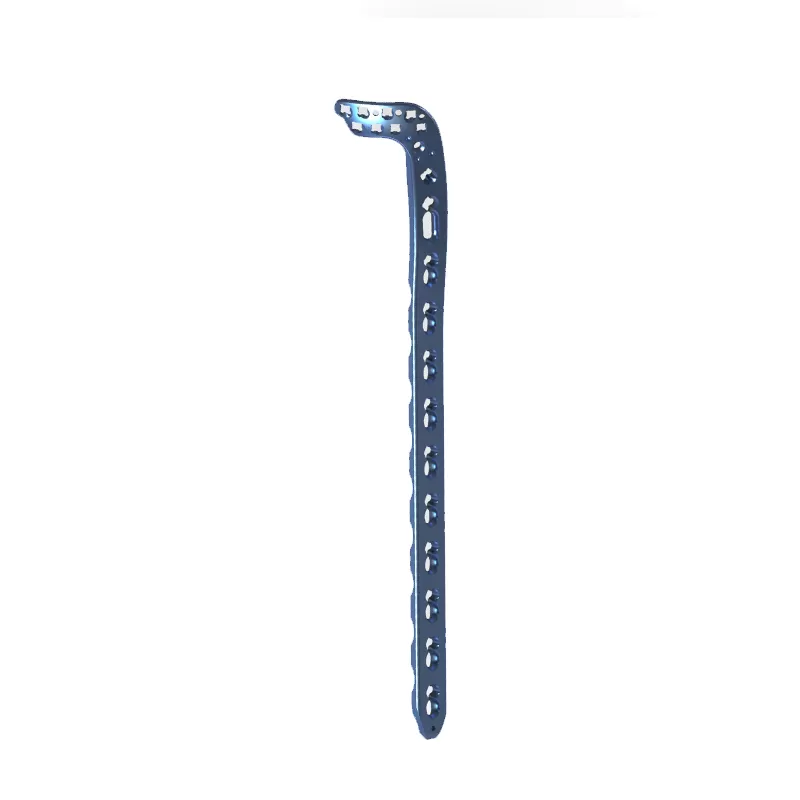

The Distal Lateral Tibial Universal Locking Plate is a specialized internal fixation system designed to treat complex fractures of the distal tibia.
It features a 30° conical polyaxial locking hole design, allowing screws to be inserted at variable angles (±15° off-axis) for optimal screw trajectory and anatomical adaptability.
The integration of locking screws with threaded spherical heads enables stable angular fixation between the plate and bone, forming a secure bone-plate-screw construct.
The plate body is anatomically contoured to match the lateral tibial anatomy and features a low-profile design with rounded edges and a highly polished surface, minimizing soft tissue irritation.
Manufactured from high-strength TA3G pure titanium or TC4 titanium alloy, this system is compatible with a range of locking, cortical, and cannulated screws to provide versatile and stable fixation across diverse fracture types.
● 30° Polyaxial Locking Holes: Support ±15° screw angulation for tailored fixation.
● Spherical Threaded Screw Head: Ensures strong locking interface with the plate for angular stability.
● Anodized Surface Treatment: Improves corrosion resistance and biocompatibility.
● Sharp Self-Tapping Screw Tip: Allows for easier penetration and secure fixation.
● Low-Profile, Contoured Plate Design: Reduces soft tissue irritation and enhances patient comfort.
● Rounded Edges & Polished Finish: Minimize soft tissue damage and postoperative complications.
● Interrupted Thread Design: Reduces risk of cold welding at thread junctions, improving long-term safety.
● Optimal Screw Insertion Angles: ±15° polyaxial screw range allows better adaptation to complex fracture geometry.
● High Stability Locking Interface: Direct hard lock between screw and plate provides excellent mechanical stability.
● Anti-Rotational Fixation: Dual screw configurations support rotational control of fracture fragments.
● Reinsertable Screw Capability: Screws can be repositioned during surgery without compromising locking ability.
● No Additional Inserts Required: Polyaxial locking achieved without sleeves or auxiliary components—streamlines procedures.
● Versatile Fixation Strategy: Supports both rigid locking and functional compression as needed.
● Minimized Soft Tissue Irritation: Anatomically shaped, low-profile plate with smooth edges promotes better soft tissue tolerance.
