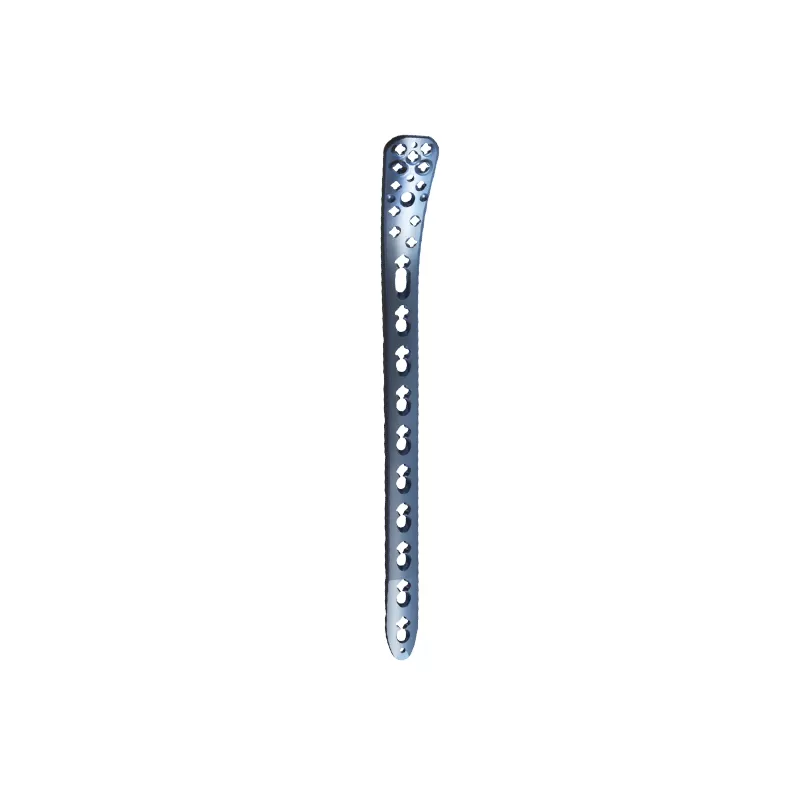

The Variable-Angle Medial Distal Tibia Locking Plate is anatomically contoured for the medial aspect of the distal tibia, offering strong fixation for metaphyseal and articular fractures without extensive soft tissue dissection.
Its key innovation is the variable-angle locking mechanism, where each of the conical locking holes (30° cone, ±15° off-axis) permits tailored screw trajectories to optimize fragment support while preserving vascularity.
Made from TA3G pure titanium or TC4 alloy, the low-profile, polished plate minimizes soft tissue irritation and fits seamlessly to bone contours.
Compatible with both variable-angle locking and conventional cortical screws, the system supports both stable fixed-angle constructs and dynamic compression where desired.
● Variable-Angle Locking Holes (±15°): Enable customized screw orientation to match fragment morphology and avoid joint penetration
● Combi Compression & Locking Screw Options: Shaft holes support both compression and locking techniques depending on fracture configuration
● Low-Profile, Anatomical Plate Design: Smooth, polished with rounded edges to reduce soft tissue irritation and avoid tendon impingement
● Multiple Fixation Modalities: Accepts variable-angle locking screws, standard locking screws, and cortex screws—all in the same plate holes
● Provisional K‑Wire Holes: Allows temporary fixation or fragment reduction during surgery
● Material Excellence: Fabricated from medical-grade titanium or stainless steel with anodized finish for enhanced durability and biocompatibility
● Tailored Screw Trajectories: ±15° angulation helps target optimal bone stock, avoid articular breach, and customize fixation for complex fracture patterns.
● Enhanced Stability: Fixed-angle locking in multiple directions forms a stable scaffold, particularly important in osteoporotic or comminuted bone.
● Minimally Invasive Friendly: Pre-shaped contour and low-profile design support submuscular or MIPO techniques, reducing periosteal disruption and promoting biological healing.
● Versatile Fixation Strategy: Supports both variable locking and compression screw techniques within a unified plate system.
● Reduced Risk of Soft Tissue Injury: Polished contours and low plate thickness minimize postoperative irritation and tendon complications.
