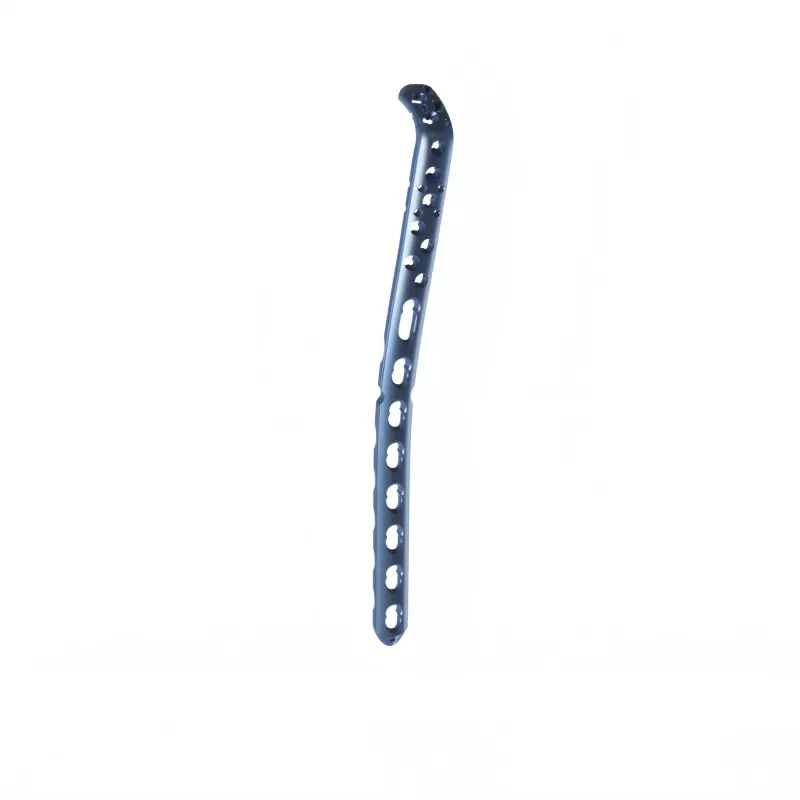

The Variable-Angle Olecranon Locking Plate is designed to provide stable and angular fixation of olecranon fractures.
The implant features a 30° conical multi-directional locking hole system, allowing locking screws to be inserted at up to 15° off-axis in any direction. This design offers greater surgical flexibility in targeting specific bone fragments and adapting to various fracture morphologies.
Each plate is anatomically contoured for the olecranon region and crafted with rounded edges and a high-polish low-profile surface to minimize soft tissue irritation. Manufactured from TA3G pure titanium and TC4 titanium alloy, the plate ensures superior strength, biocompatibility, and corrosion resistance.
● Ball-headed Threaded Screws compatible with multi-directional locking and compression holes
● 30° Conical Variable-Angle Locking Holes with four locking threads per hole, allowing up to 15° of screw angulation in any direction
● Sharp Self-Tapping Tips on variable-angle locking screws for improved purchase
● Anodized Surface Finish for enhanced corrosion resistance and implant differentiation
● Anatomically Contoured Plate Body with rounded edges and high-gloss finish to reduce soft tissue interference
● Cortical Screws designed with spherical heads for use with dynamic compression or variable-angle compression holes
● Discontinuous Thread Design reduces risk of cold welding between threads
● 15° Multidirectional Locking provides tailored fixation paths to accommodate various fracture types and anatomies
● Rigid Locking Interface ensures high mechanical stability between screw and plate
● No Additional Instrumentation Required for angle locking—simplifies surgical procedure
● Rotational Stability for fracture fragments using dual screw configuration
● Screw Reinsertion Possible, increasing intraoperative flexibility
● Enhanced Biomechanical Fit due to anatomy-specific plate shaping
● Minimized Soft Tissue Irritation from low-profile, rounded, and polished plate design
